AT8904M Hardware Description
Page 3 - 19 AT8904M User Guide
3.1.11 Display Elements

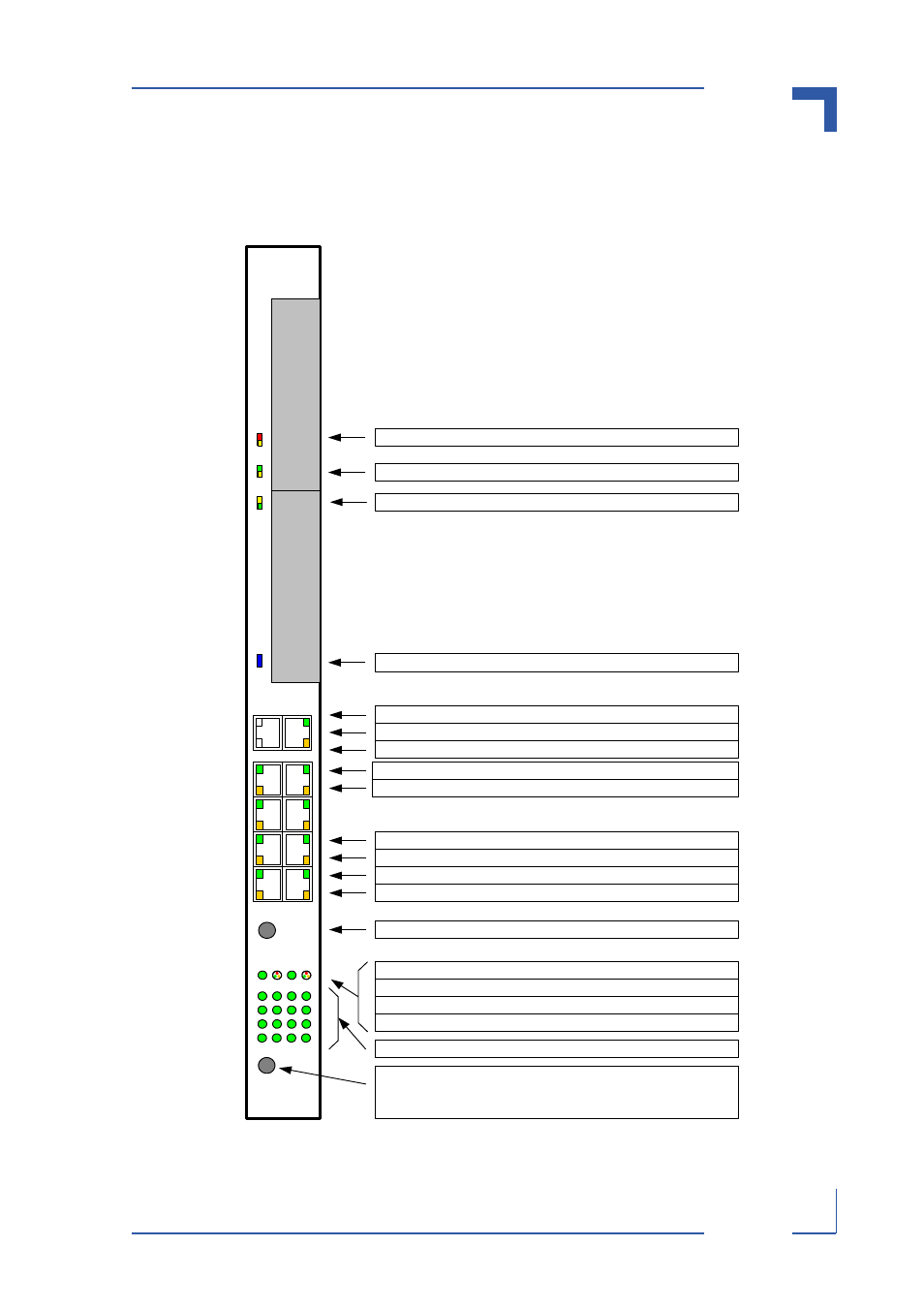

Figure 3-3: AT8904M Front Panel
Push Button
Off: Switch LEDs display Link (on) and Activity (blink)
of Base Switch Port ShMC, 2 to 16.
On: Switch LEDs display Link (on) and Activity (blink)
of Fabric Switch Channel 1 to 15.
Switch LEDs display Link (on) and Activity (blink)
USER LED2 displays Base Switch LEDs selected.
USER LED4 displays Fabric Switch LEDs selected.
USER LED1 displays Base Switch error (red), initiation (yellow), operational (green) .
USER LED3 displays Fabric Switch error (red), initiation (yellow), operational (green).
B4
B2
B3
B1
F1
AMC
1
Mid-
size
AMC
2
Mid-
size
CPU FE Port: LED (amber) displays Speed, Off 10Base-T, Blink 100Base-T
CPU FE Port: LED (green) displays Link (on) and Activity (blink)
Fabric Port 1/2: LED (green) displays Link (on) and Activity (blink)
Fabric Port 1/2: LED (amber) displays Speed, Off: 10Base-T, Blink: 100Base-T, On: 1000Base-T
Base Port 1/2: LED (green) displays Link (on) and Activity (blink)
Base Port 1/2: LED (amber) displays Speed, Off: 10Base-T, Blink: 100Base-T, On: 1000Base-T
Base Port 3/4: LED (green) displays Link (on) and Activity (blink)
Base Port 3/4: LED (amber) displays Speed, Off: 10Base-T, Blink: 100Base-T, On: 1000Base-T
Reset Push Button: (IPMC reset, Payload Power down)
RS-232 Interface: No LEDs
ATCA LED1 (red/amber) displays "Out of Service" (PPC/FWUM)
ATCA LED3 (amber/green) User defined
ATCA BLUE (blue) displays "Ready for Hot Swap" (IPMC)
ATCA LED2 (green/amber) displays "Healthy" (PPC/IPMC)
1 2 3 4
1 2 4 3
5 6 8 7
9
1
0 1
2 1
1
13 14 16 15
FE RS232
