Functional Description CP930
Page 2 - 8 © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01
2.3.3 CompactPCI Interface
The CompactPCI interface is based on the specification PICMG 2.0 R 3.0, 10/1/99. The follow-
ing figure and table indicate the pin layout and pinout of the CompactPCI connector, CON1
(J1).

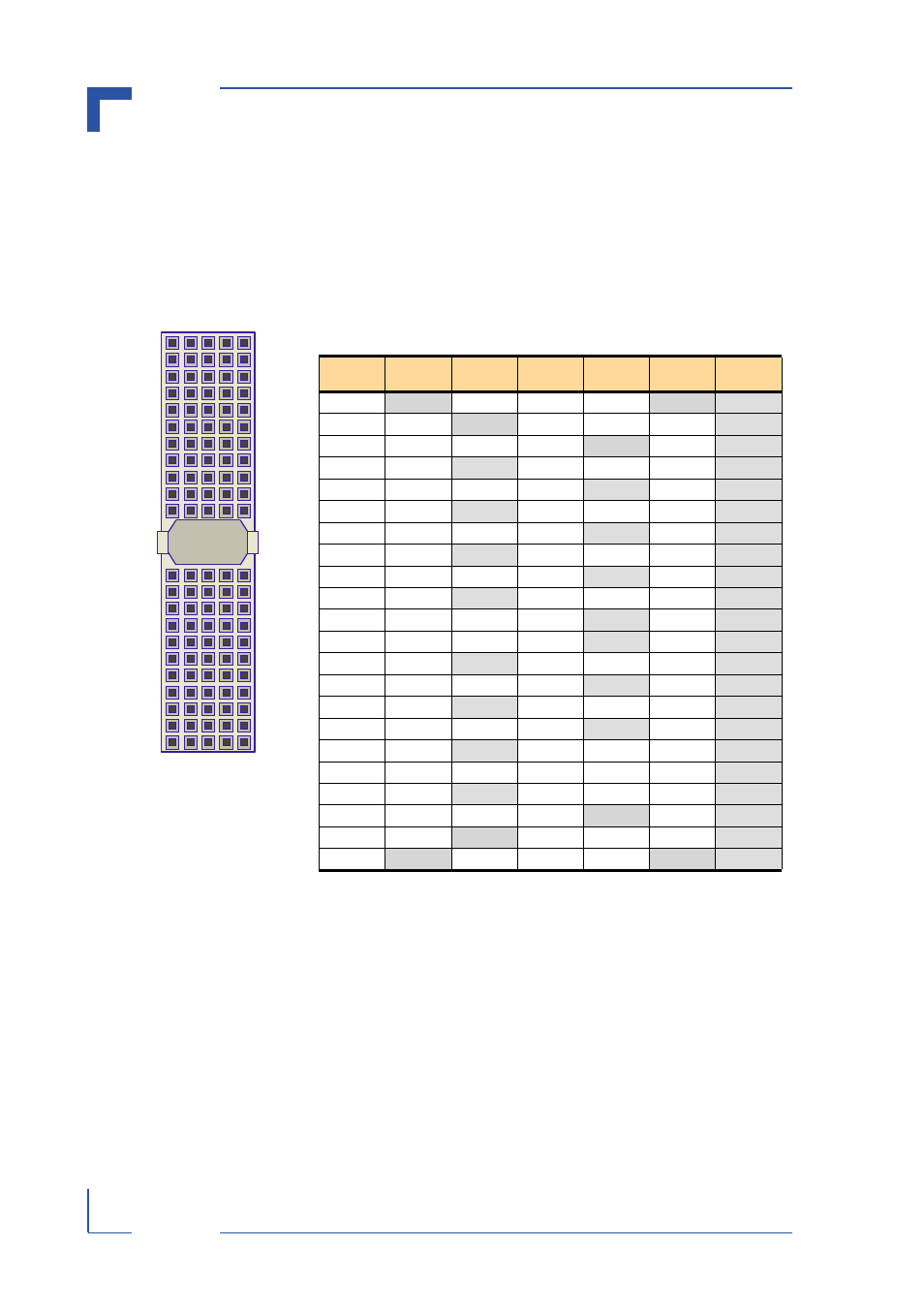

Figure 2-4: CompactPCI Connector CON1 Front View
Table 2-2: Compact PCI Connector CON1 Pinout
PIN A B C D E F
1 VCC NC NC NC VCC GND
2 NC VCC NC NC NC GND
3 NC NC NC VCC NC GND
4 NC GND NC NC NC GND
5 NC NC NC GND NC GND
6 NC GND NC NC NC GND
7 NC NC NC GND NC GND
8 NC GND NC NC NC GND
9 NC NC NC GND NC GND
10 NC GND NC NC NC GND
11 NC NC NC GND NC GND
15 NC NC NC GND NC GND
16 NC GND NC NC NC GND
17 NC NC NC GND NC GND
18 NC GND NC NC NC GND
19 NC NC NC GND NC GND
20 NC GND NC NC NC GND
21 NC NC NC NC NC GND
22 NC GND NC NC NC GND
23 NC NC NC VCC NC GND
24 NC VCC NC NC NC GND
25 VCC NC NC NC VCC GND
Note:
Pinrows
F and Z
are GND pins
25
A E C
1
D B Z F
