CP930

Functional Description

ID 26683, Rev. 01

© 2003 Kontron Modular Computers GmbH

Page 2 - 5

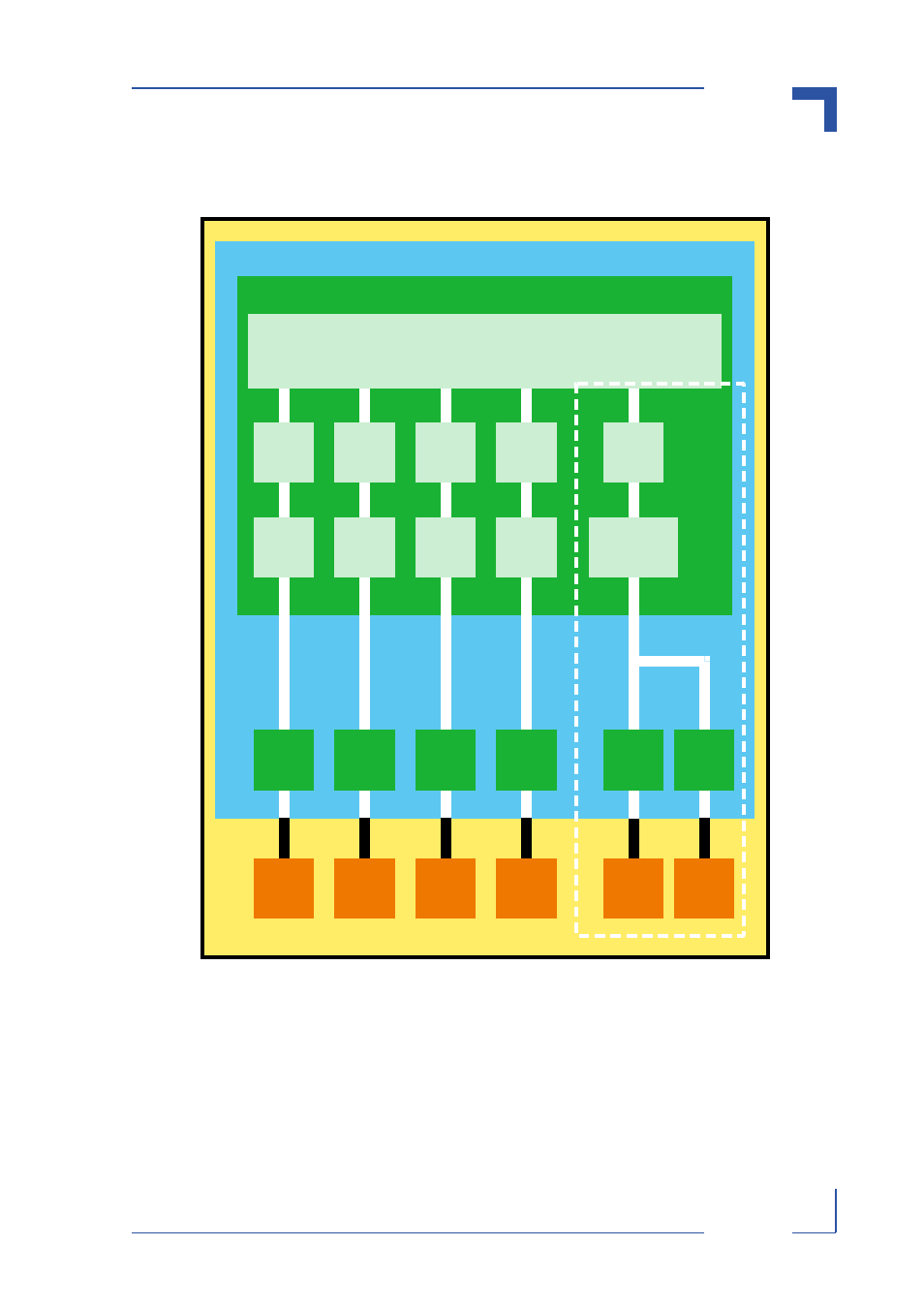

Figure 2-1: CP930 Board Level Interfacing

GALV.
ISOL.

CAT5
UTP5

MAC5

T/RFO

MT-RJ

TRCV

GALV.
ISOL.

CAT5
UTP1

MAC1

GALV.
ISOL.

CAT5
UTP2

MAC2

GALV.
ISOL.

CAT5
UTP3

MAC3

GALV.
ISOL.

CAT5
UTP4

MAC4

There are five variants of the CP930 available. Three of the variants
have five Ethernet front panel connectors, the difference between
the three being that the first is for standard temperatures and the second
is for extended temperatures, and the last is for FDD-Slot mounting.
The fourth variant has only four Ethernet front panel connectors,
but an additional internal Ethernet connector.
The fifth variant is equipped with four standard Ethernet interfaces
on the front panel, plus an Ethernet Fiber Optic interface, which is
routed via a duplex MT-RJ type connector receptacle on the front panel,
for interfacing to fiber optic links.

*

*

*

Fast Ethernet Switch Controller

CP930

88E6063-RCJ

Switch Controller on Chip

and Frame Buffers

Ch 1

Ch 2

PHY

T/TX

Ch 3

PHY

T/TX

Ch 4

PHY

T/TX

Ch 5

PHY

T/TX

PHY

T/TX/FX

Eth 1

Eth 5

Eth 4

Eth 3

Eth 2
