U S E R G U I D E
6

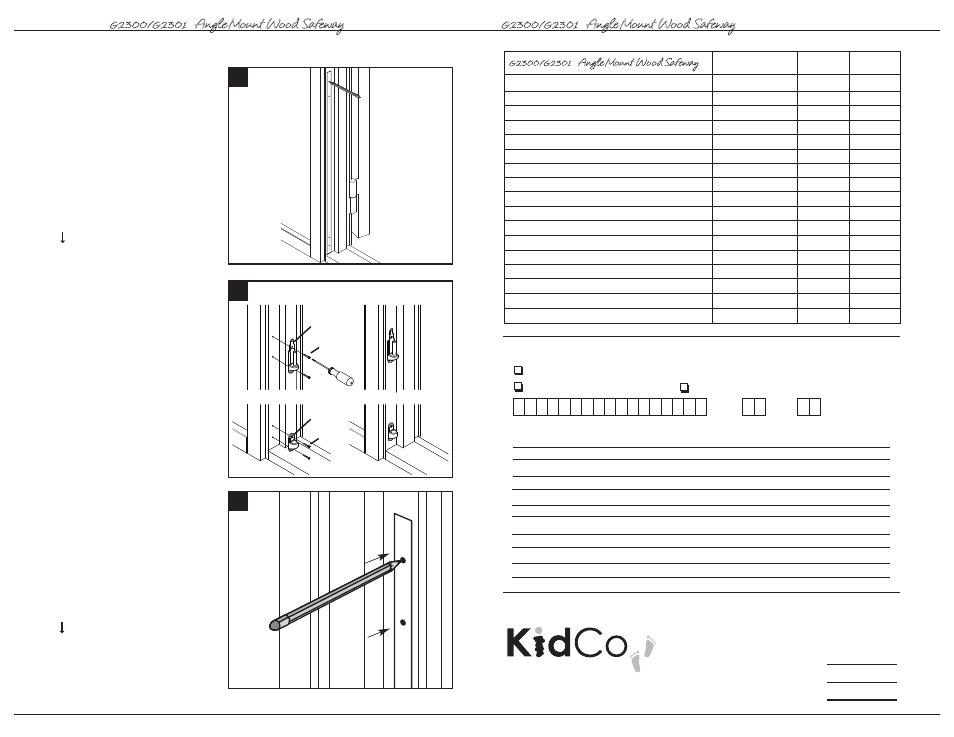

7 Hinge side mounting
Screws provided are for mounting
directly into wood. If mounting into
brick, drywall or other surfaces, use
appropriate hardware. If installing into
hardwood (i.e. oak), drilling a pilot
hole may be necessary. Cut out
templates along all dotted lines, separating
template (a) from (b). Hold template (a)
vertically and completely outstretched
against mounting surface with the end
marked ” ” even with the floor. Mark screw
hole positions. Remove the template
8
Use longer screws for mounting
into studs behind drywall. Using 2 wood
screws (O) mount upper hinge bracket (N)
with the hole and the post pointing up, in
top 2 screw hole positions. Using 2 wood
screws (O) mount lower hinge bracket (P)
with angled side facing down, in bottom 2
screw hole positions.
9 Locking Side Mounting
Screws provided are for mounting
directly into wood. If mounting into
brick, drywall or other surfaces, use
appropriate hardware. If installing into
hardwood (i.e. oak), drilling a pilot
hole may be necessary. Hold template
(B) vertically and completely outstretched
against mounting surface with the end
marked ” ” even with the floor. Mark screw
hole positions. Remove the template.
9
8
N
O
P
O
7
27
PARTS PRICE LIST AND METHOD OF PAYMENT
Order amount
Shipping & handling
Total
SHIPPING AND HANDLING CHARGES
If order includes extension tubes,
bars or spindles add $8.00
All others add $5.00
$
$
$
METHOD OF PAYMENT
Please do not send cash
Check/Money Order enclosed (payable to: KidCo, Inc.)
VISA (13 or 16 digits) Mastercard (16 digits)
Mo Yr
Credit card account number Expiration date (required)
Signature of cardholder Date
Please print name of cardholder
Name Daytime phone number
Street address Unit
City State Zip
1013 Technology Way
Libertyville, IL 60048-5349
®
Price G2300 G2301
$1.00
$1.00
$3.00
$3.00
$3.00
$3.00
$1.00
$1.00
$1.00
$1.00
$1.00
$1.00
$1.00
$1.00
$1.00
$1.00
$1.00 D Assembly part - cover 1 & 2
E Assembly part - housing 1 & 2
H Lower handle part
I Lower hinge part
J Upper hinge part
K Upper handle part
L-M Screw/Screw socket - set of 4
N
Upper hinge bracket
P Lower hinge bracket
Q Locking cap
R Upper latch
S Lower locking bracket
T Stop pin
U Spring
V
Hinge cap
W Upper locking bracket
Y
Stop clip
G2300/G2301
Angle Mount Wood Safeway
®
G2300/G2301
Angle Mount Wood Safeway
® G2300/G2301
Angle Mount Wood Safeway
®
