Making Smoothies

Step 1:

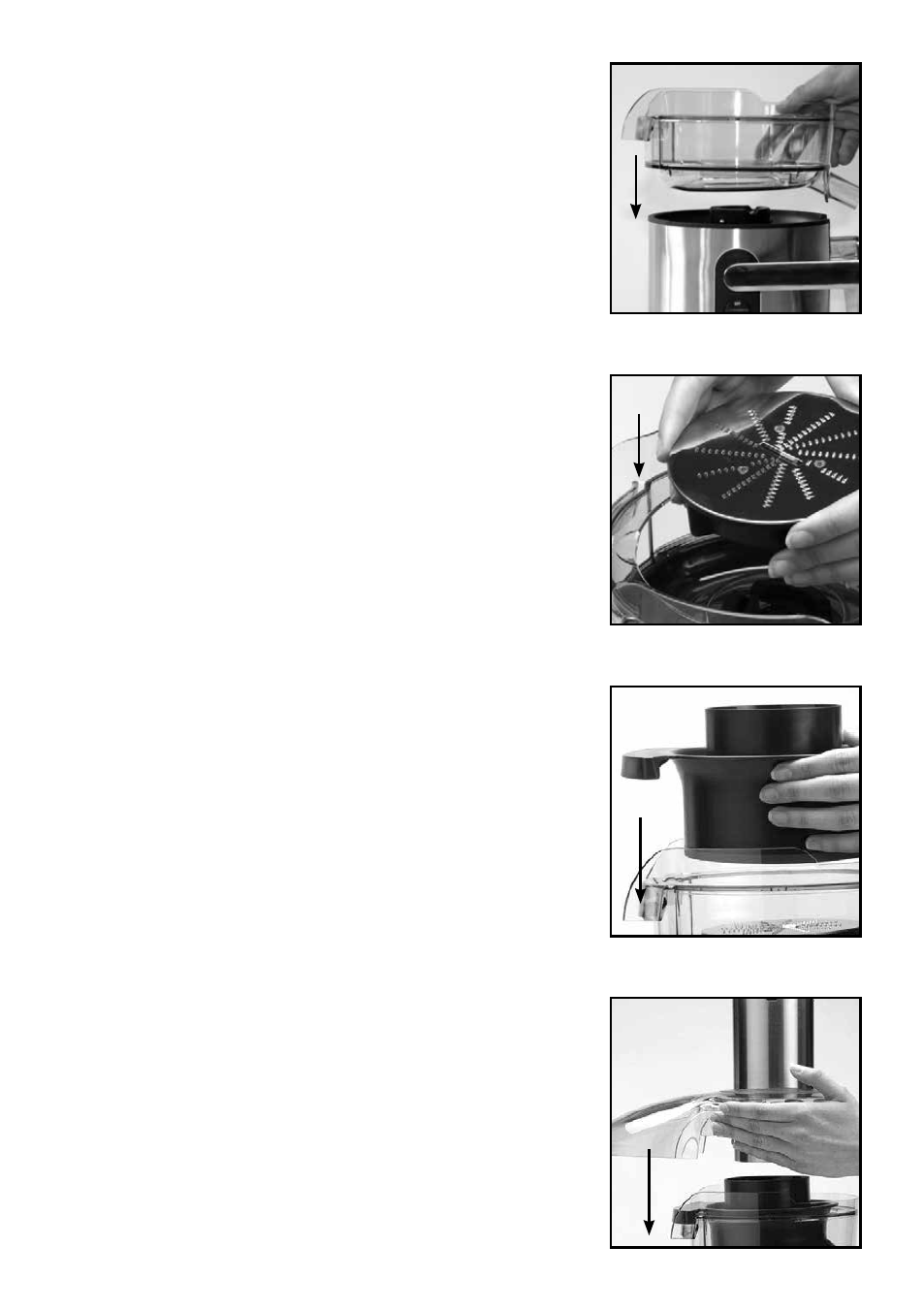

Place the Filter Bowl Surround on the top of the Motor Base

(picture A).
Step 2:

warninG: Ensure the Smoothie Disc is fitted securely

inside the integrated pulp container and onto the motor

base. Never use Smoothie Disc without Smoothie Insert. They

must always be used together. But do not use the Smoothie

Insert combined with the stainless steel filter basket.
attention: Ensure the Smoothie disc clean before assem-

bling. Any dehumidified left over food on the basket will

block the fine mesh holes. If necessary remove excess fibre

build up (from fruit or vegetables) according to the instruc-

tions ´Care and Cleaning`.
Place the Smoothie Disc into the Filter Bowl Surround and

onto the Motor Drive Coupling Push down until it clicks into

place. Ensure the Smoothie Disc is fitted securely inside the

Filter Bowl Surround and onto the Motor Base (picture B).
warninG: Ensure the Smoothie Disc is fitted securely

inside the integrated pulp container and onto the motor

base. Never use Smoothie Disc without Smoothie Insert. They

must always be used together.
Step 3:

Place the Smoothie Insert into the Filter Bowl Surround,

making sure the warning label on the handle is facing

upwards (picture C).
Step 4:

Place the Juicer Cover over the Smooothie Insert and Filter

Bowl Surround and lower into position (picture D).
Step 5:

Raise the safety locking arm up and lock into the two groo-

ves on either side of the juicer cover (picture E). The safety

locking arm should now be in a vertical position and locked

into place on top of the juicer cover (picture F).
Step 6:

Slide the food pusher down the feed chute by aligning the

groove in the food pusher with the small protrusion on the

inside of the top of the feed chute (picture G).
note: There is no need to use pulp container when using

the Smoothie Insert.
Step 7:

Place the juice jug provided under the spout on the right-

hand side of the juicer. The juice jug lid can be used to

avoid any splatter.
