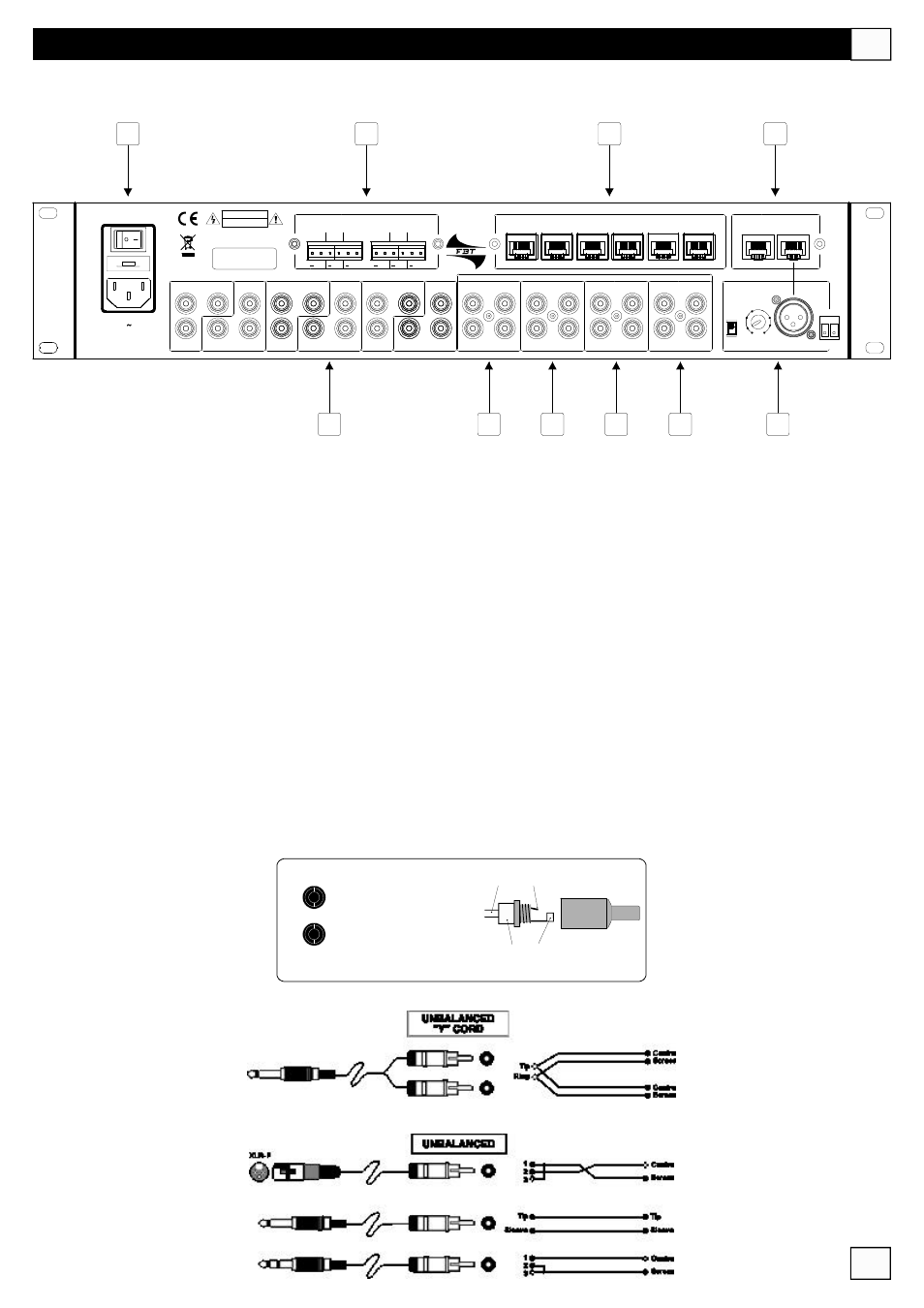

REAR PANEL UK
ZONE REMOTE CONTROL
1 2 3 4 5 6
MIC REMOTE CTRL
MIC 1 MIC 2
GAIN
PH
24V PRIORITY AUX MIC 1
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6
AUX CD TUNER TAPE
INPUTS
L
R
LINK IN
MMZ 6020
6 5 4 3 2 1
+ + + + + +
SPKR OUTPUTS 4/8 Ohm
CAUTION
RISK OF ELECTRICSHOCK DO NOTOPEN
TO REDUCETHERISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE
PARTS INSIDE REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL
Made in Italy
230 Vac / T1.6A
Power Consumption 220VA
L
R
LINK IN
L
R
LINK IN
L
R
LINK IN
LEFT SUB/MNO
RIGHT
LEFT
RIGHT SUB/MNO
LEFT SUB/MNO
RIGHT
LEFT
RIGHT SUB/MNO
LEFT SUB/MNO
RIGHT
LEFT
RIGHT SUB/MNO
70 30 dB
8
9
10
11 12 13 14
15 16
17
°
°
Connection with the mains is by means of a standard IEC socket; before connecting the device, make sure that the
supply voltage is not higher than the indicated voltage. The socket also includes the housing of power circuit
protection fuse: if the fuse breaks, it shall only be replaced by fuses with equal electrical features.
The power switch (8) turns the device on; if the matrix is mounted in a rack cabinet, make sure that access to the
power supply is easy.
Audio outputs for the relevant zones (1-6):
SUB/MNO: subwoofer outlet, in mono mode receives the sum L-R signals.
LEFT/RIGHT: stereo output for the connection of an additional amplifier or other device.
N.B. All audio inputs/outputs with RCA connector are for “line” level signals (non microphone)
Pin Jack RCA
Massa Schermo (Ground) / Masse
Fase+ Caldo (Hot) / Phase+
L
R Canale destro (Right)
Canale sinistro (Left)
Prese a Pin Jack
8
9
