Isotropic Electric Field Probe
© ETS-Lindgren, June, 2005
Revision F, Part # H-600057
12
XMIT/RCV
The fiber optic cable assembly from the receiver is attached to
the probe via two connectors. The cables are color-coded white
for XMIT, yellow for RCV. Identically colored dots are located on
the electronics housing adjacent to these connectors. Be sure
that each cable is attached to the proper probe connector.

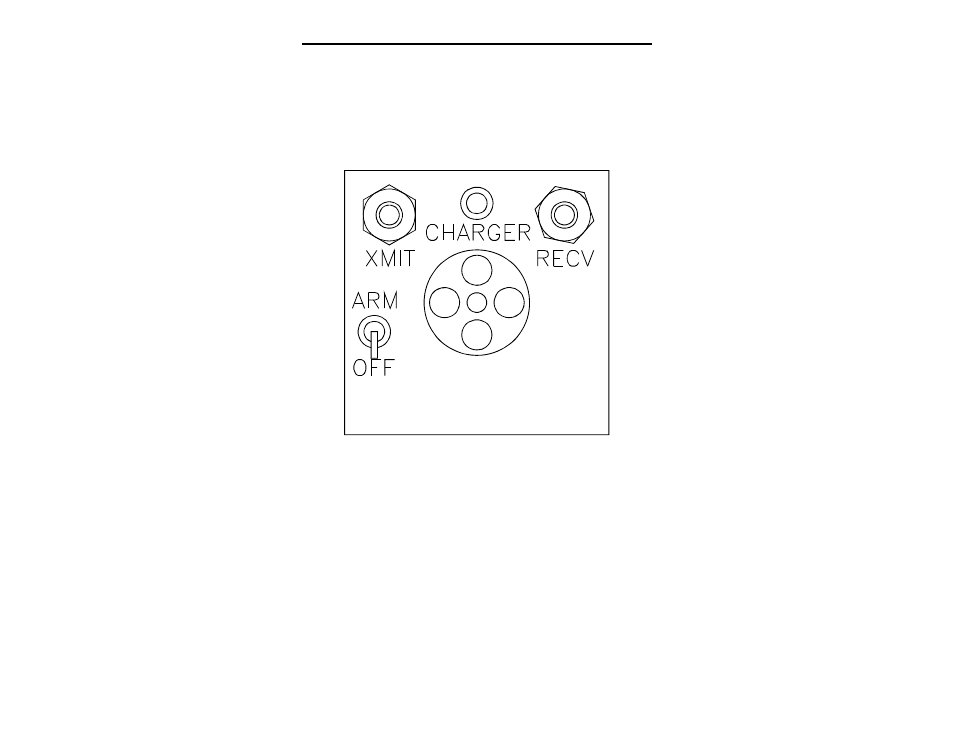

Figure 2: Switch and Connectors
When the fiber optic cables are not attached, always cover the
probe connectors with the protective plastic covers supplied with
the unit, or with similar material. This prevents dirt or other
contaminants from entering the connector and causing
communication problems.
