30 | Operation
M ODEL 5503-2M & 5503-3M: H-M ODE O PERATION

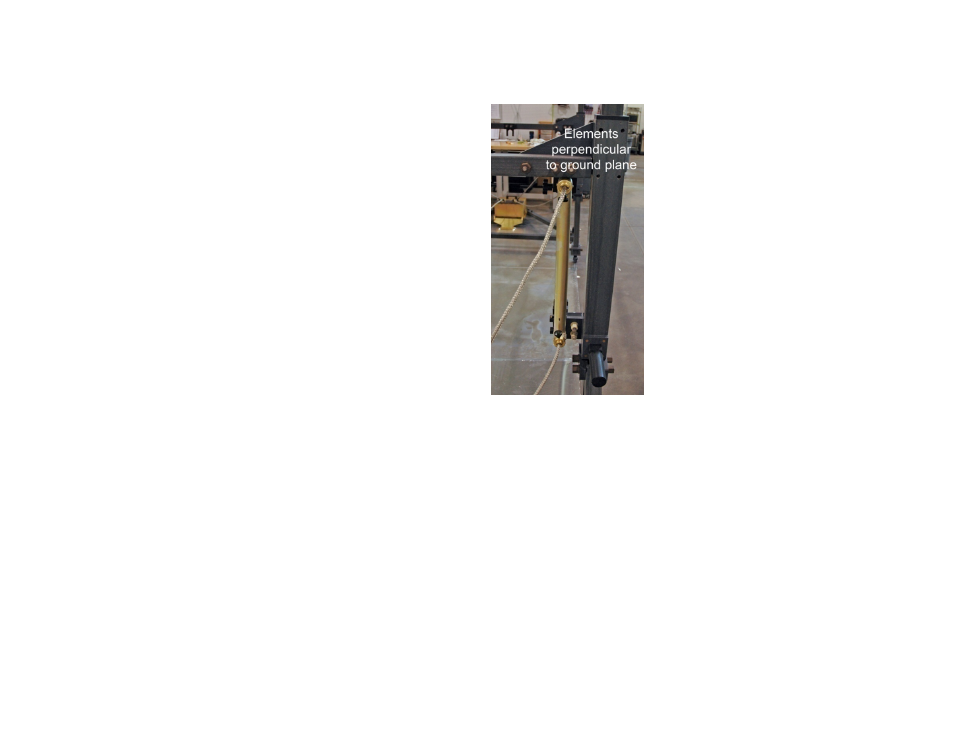

The H-field is generated when the two
antenna elements are perpendicular to
the ground plane.
1. Connect H-field low power balun box to generator unit. See page 26 for
the steps to change a balun box.
2. Rotate the elements to H-field position. See page 28 for the steps to rotate
the elements.
3. Verify that the cables from the elements are connected to the generator
unit.
4. Attach the RF or power input cable to the connector on the balun box.
