Assembly and Installation
|
13
4.0 Assembly and Installation
Before assembling or installing any
components, follow the safety information in
the ETS-Lindgren Product Information Bulletin
included with your shipment.

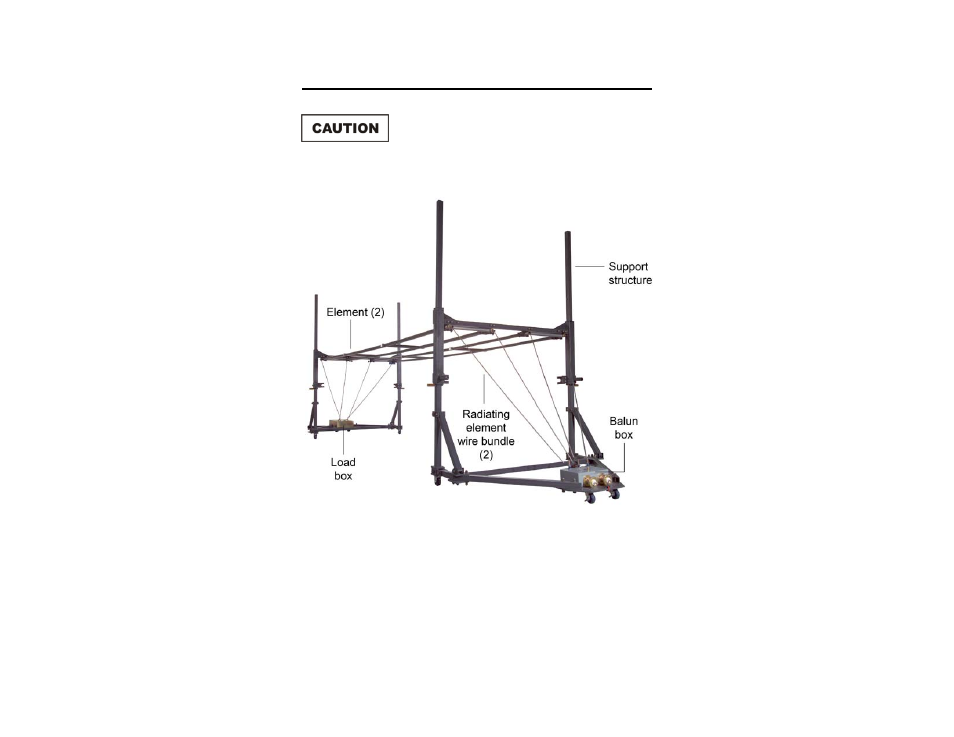

Model 5503-5M shown
with high power balun box
The Model 5503 Series E & H Field Generator consists of the following
components:
•
Non-conductive, non-metallic support structure, including four masts
that enable the vertical movement of the element carriers.
•
Two antenna elements, each consisting of a rectangular frame.
