M ODEL 5503-5M: E-M ODE O PERATION
The E-field is generated
when the two elements are
parallel with the ground
plane.
• Connect the cables from
the two elements to the
center post on the
high power balun box
labeled E.
• Connect the RF or power
input cable to the RF
connector on the
high power balun box
labeled E.

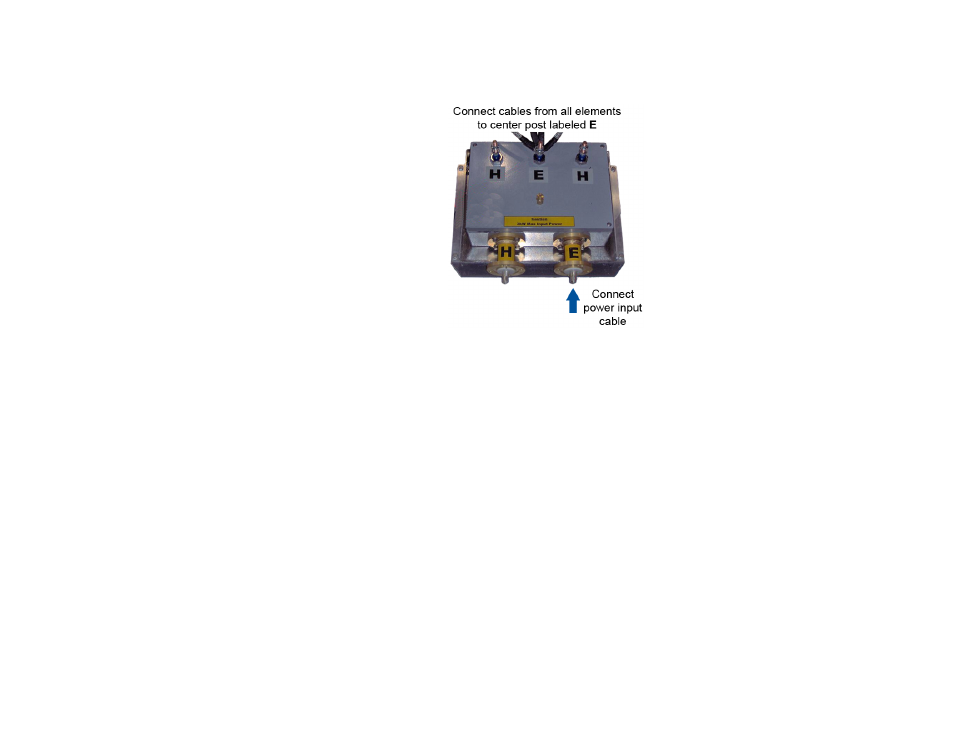

High Power Balun Box
