ETS-Lindgren 5503 Electric Field Generator User Manual
Page 16
16
|
Assembly and Installation
4.

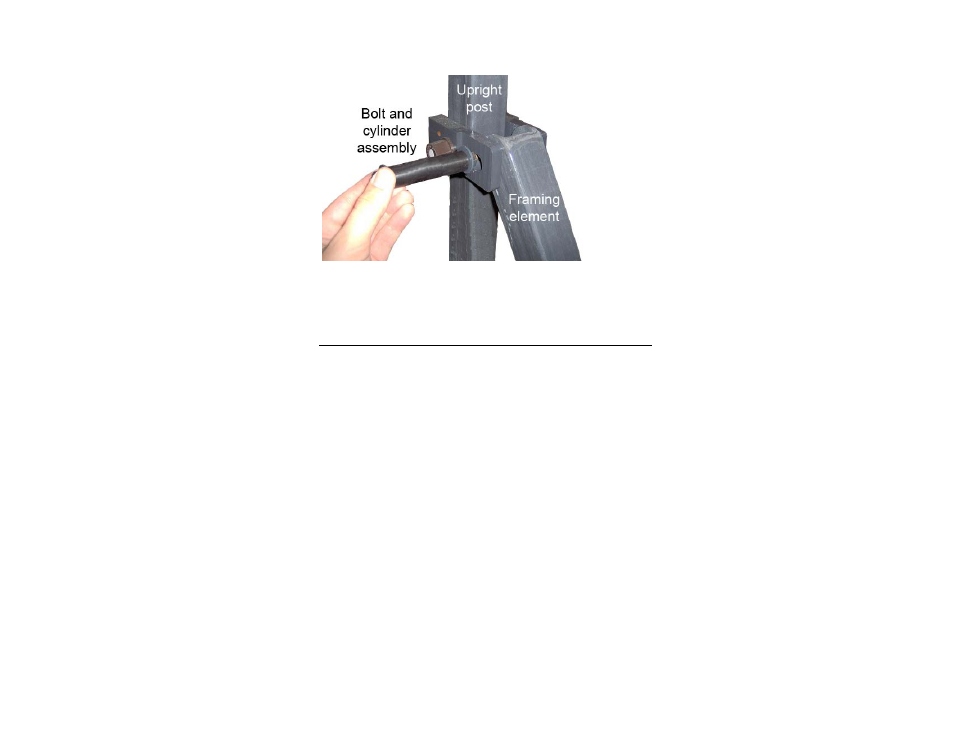

Repeat these steps to assemble the remaining vertical support.
Antenna Elements
When both sides of the support structure are completely assembled, attach the
antenna elements:
1.
Space the two pieces of the support structure approximately five meters
(16 feet) apart.
2.
Slide the ends of the antenna elements into the two clamps. One clamp is
located near the top of the carrier and the other on the side of the carrier
near the bottom.
3.
Insert the threaded knobs through the holes near the outer edge, and then
tighten the knobs. These knobs hold the elements in place inside the
U-shaped receptacle.
When both ends of each antenna element are secured in place, the antennas
can be positioned. See Operation on page 19 for information on antenna
orientation.
