Series 8700 / 8800 Unitized Curtain Wall Installation Instructions

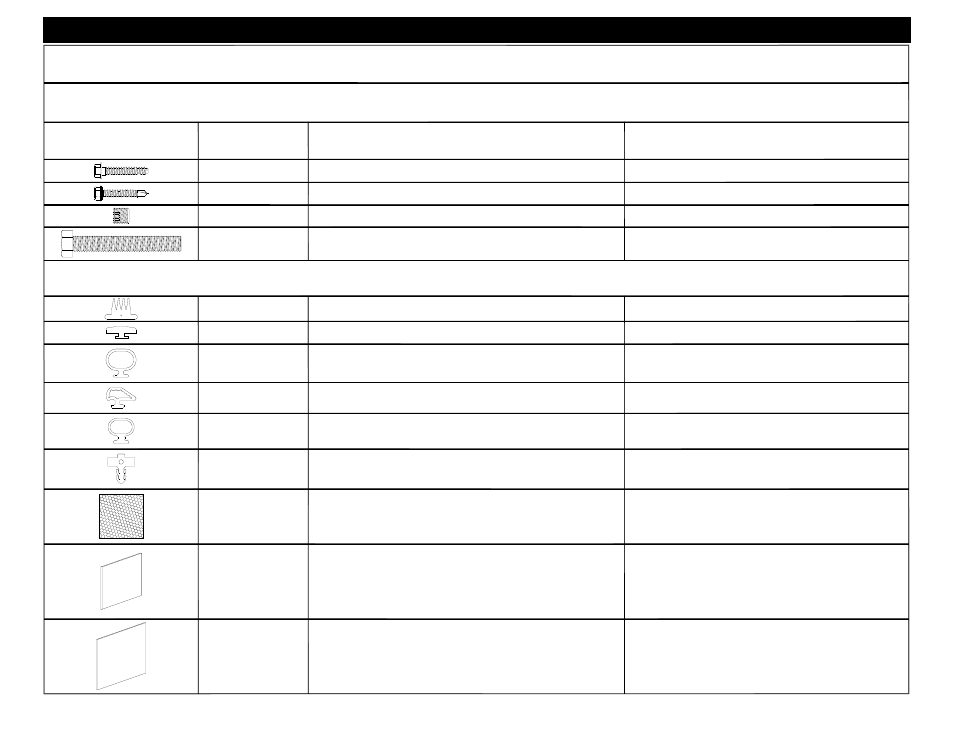

Section 2 - Parts Identification
FASTENERS
Profile Part # Description
SFQ5 1/4"-14 X 1 1/2" HX- SMS 18-8 B
M171 1/4"-14 X 1 1/2" HWH #3 UC TEK 3 SG
M170 1/2"-13 X 1/2" SHSS W/ CP - STEEL
M169 1/2"-13 X 3 1/2" HX-MS 18-8 (FULL THREAD)
WC19 HORIZONTAL STACK JOINT SEAL GASKET
Material
60 SHORE "A" DURO BLACK EPDM
LC23 HORIZONTAL STACK SPACER GASKET BLACK RIGID PVC
WC20 FIN BAR BULB GASKET 70 SHORE "A" DURO BLACK EPDM
WC21 VERTICAL STACK JOINT SEAL GASKET 60 SHORE "A" DURO BLACK SILICONE
WVD2 90° CORNER AIR SEAL GASKET 70 SHORE "A" DURO BLACK EPDM
WC16 FIN BAR PRESET ISOLATOR GASKET 85 SHORE "A" DURO BLACK SILICONE
HC07 FOAM CAULK BACKER 3/4” X 3/4” X 8” L-200 MINICELL FOAM CAULK BACKER
HC08
SSG STACK JOINT GUTTER SPLICE
GUTTER SPLICE 4 13/16” X 4 13/16” X 1/16”
50 SHORE "A" DURO BLACK SILICONE
HC09
CAPTURED STACK JOINT GUTTER SPLICE
GUTTER SPLICE 5 1/4” X 5 1/4” X 1/16”
50 SHORE "A" DURO BLACK SILICONE
ACCESSORIES
