EFCO CORPORATION 6/2012 PART NO. Y308 Page 9 of 23
Series 5600 Slope Glazed Curtain Wall Installation Instructions
Section IV: Rafter and Purlin Assembly
Rafter and Purlin Assembly
C.) Slide rafter and lower rafter clip assembly over gutter clip and align pre-fabricated
3/8” through bolt holes, install 3/8” X 3” hex bolt, washers & self-locking nuts as
shown in figure #6

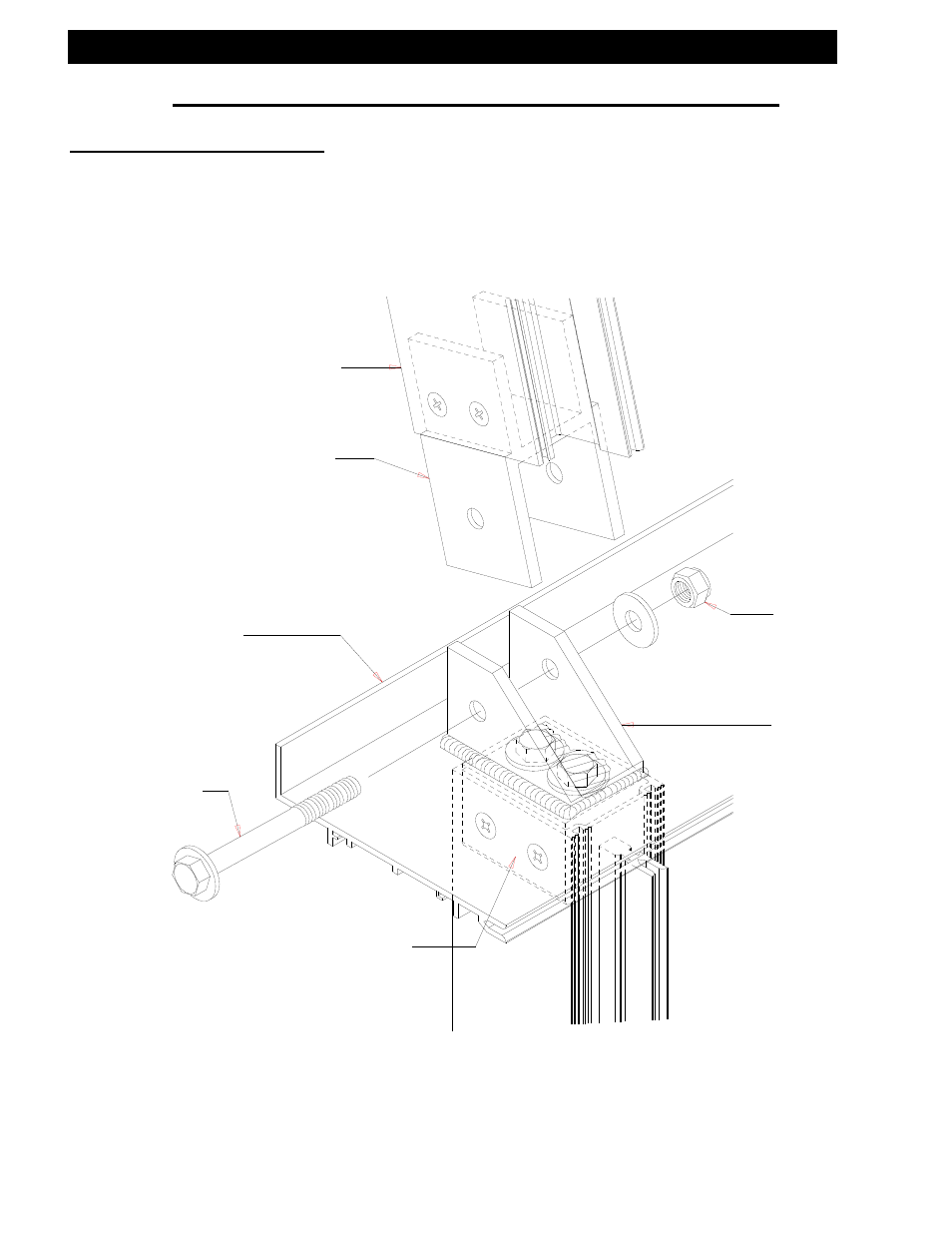

[FIG. 6]
Transition Gutter
Rafter
Lower Rafter Clip
3/8” X 3”
Hex bolt
Self – locking nut
Gutter Clip
Transition Anchor
