Series 5600 Slope Glazed Curtain Wall Installation Instructions
[FIG. 16B]
[FIG. 16A]
Section VII: Glazing Instructions
Glazing Instructions

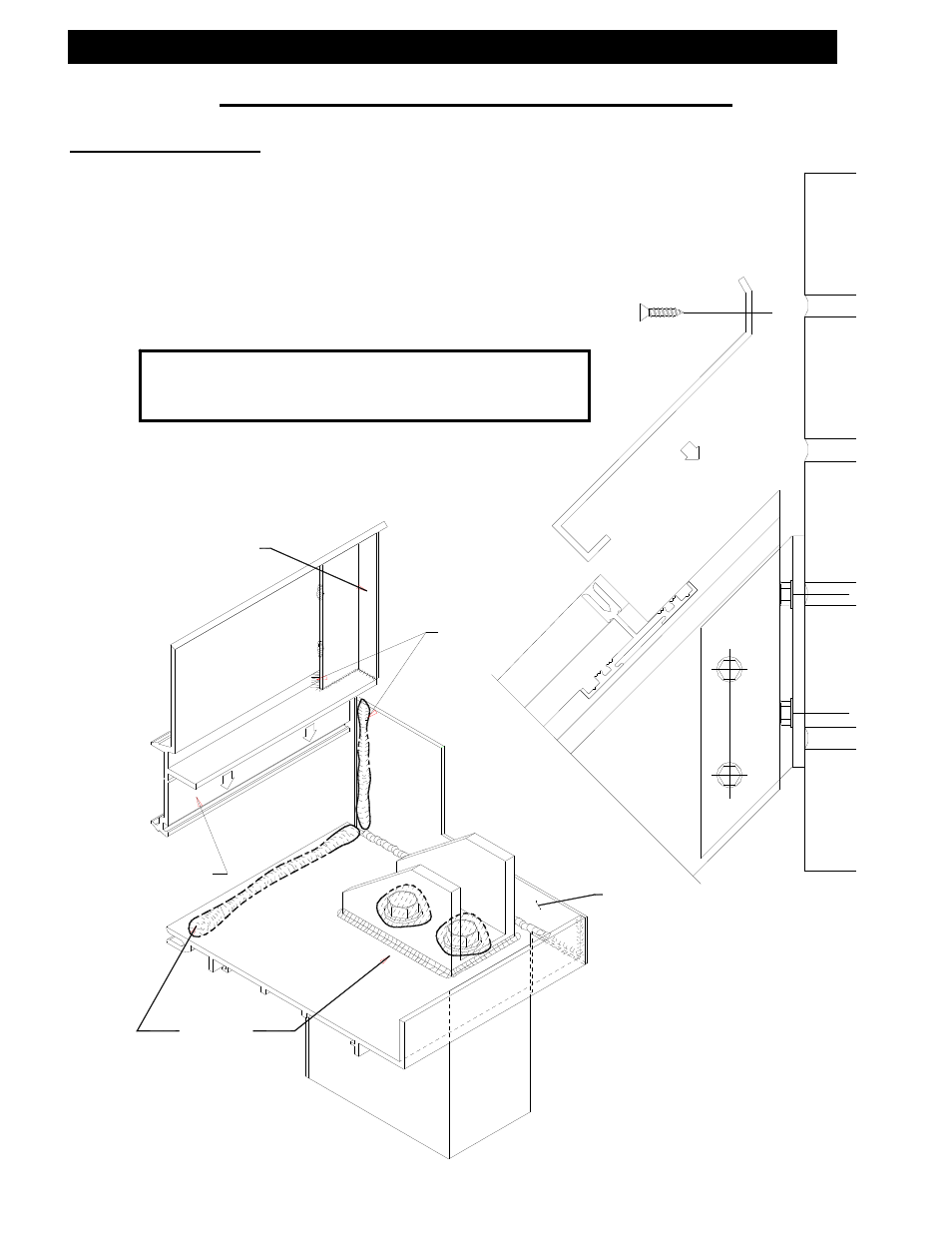

C.) Install transition pressure plate, flashing, and any
other infill as required prior to final assembly.
(Ref. Figs. 16A & 16B)
Note: Set transition pressure plate in full bed of
sealant at gutter and end cap locations.
(Ref. Fig. 16A)
Closure Angle
Sealant
End Cap as
designed on a
per job basis.
Bed of
sealant
Transition
Pressure
Plate
