End cap installation – EFCO S5600 Slope Glazed User Manual
Page 7
EFCO CORPORATION 6/2012 PART NO. Y308
Page 7 of 23
Series 5600 Slope Glazed Curtain Wall Installation Instructions
Section III: End Cap Installation
End Cap Installation

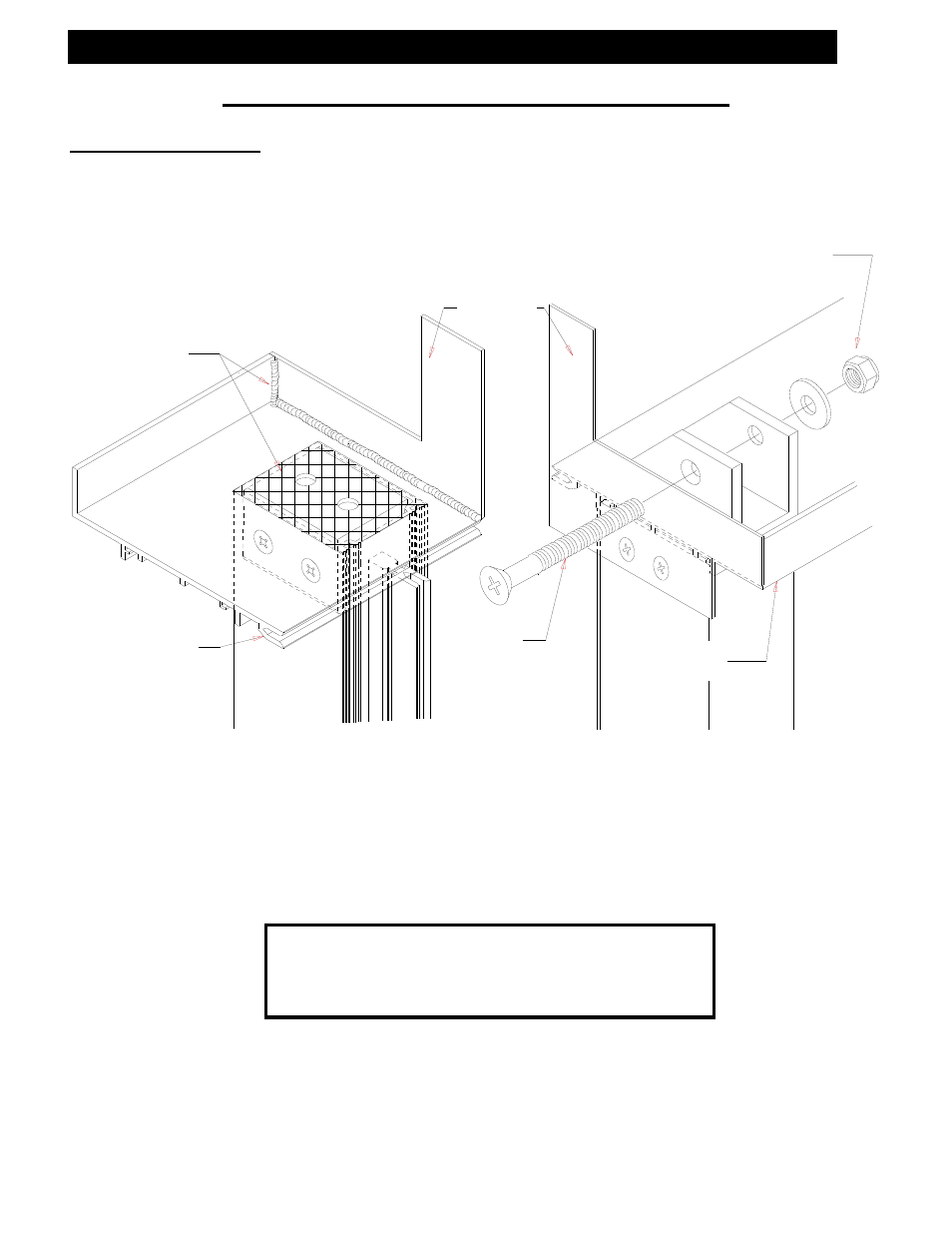

[FIG. 4]
Self – locking nut
Sealant
End Cap
3/8” X 3”
Flat head
Transition gutter
Transition gutter
S-5600 Wall Mullion
S-5600 Wall Mullion
Note: Refer to typical S-5600 Wall Installation
Instructions for procedures regarding
installation of curtain wall above or below
slope glazing system.
