EFCO CORPORATION 6/2012 PART NO. Y308 Page 23 of 23
Series 5600 Slope Glazed Curtain Wall Installation Instructions
1/32"
EQUAL EQUAL
1/32"
Section VIII: Snap-On Exterior Covers
Snap-On Exterior Covers

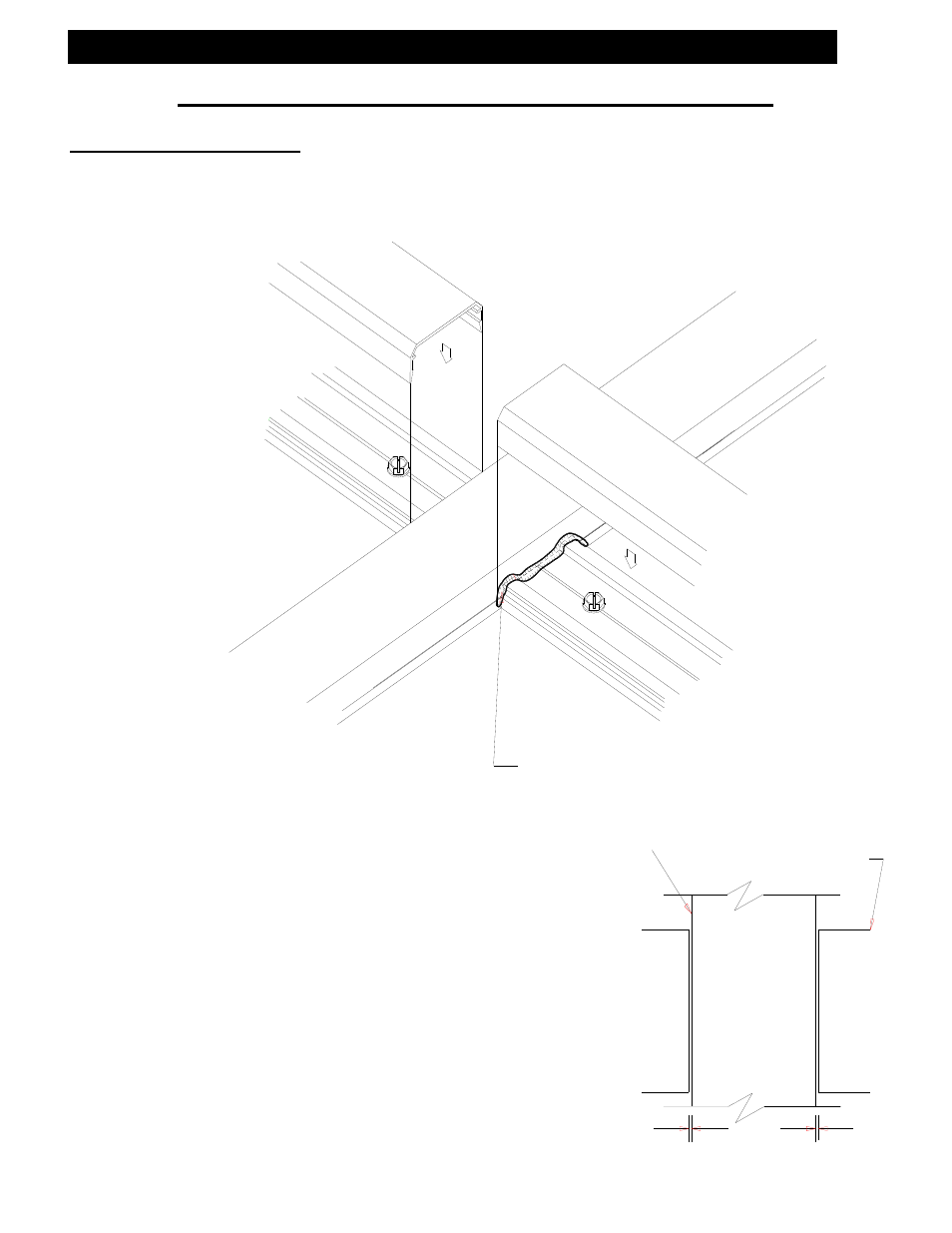

C.) After installation of purlin covers, seal as shown above for water drainage.
D.) Center horizontal snap cover in opening;
engage one side, then use block and
mallet to engage opposite side. Gaps at
ends should be equalized, and are
provided to allow installation, to allow
thermal movement, and provide
weepage.
Reseal pressure plate to vertical
covers prior to attaching
horizontal covers.
Vertical Cover
Horizontal
Cover
Equally Space
both ends of
horizontal covers.
