Dynojet DLM-OBDII Dialog Box—Channels Tab
Version 4 Data Link Module-OBDII Installation and User Guide
11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DYNOJET DLM-OBDII DIALOG BOX—CHANNELS TAB
The Channels tab displays the available channels and allows you to verify and enable
channels.
V ERIFYING THE S UPPORTED C HANNELS
To determine whether a channel is supported, the DJDLM-OBDII must communicate
with the vehicle’s PCM. You must verify the channel is supported before you can
enable a channel for use.
1
Click anywhere in the row containing a channel to select a single channel,
Ctrl+click to select multiple channels, or use Ctrl+A to select all channels.
2 Click Verify to communicate with the PCM to determine whether the channel is
supported.

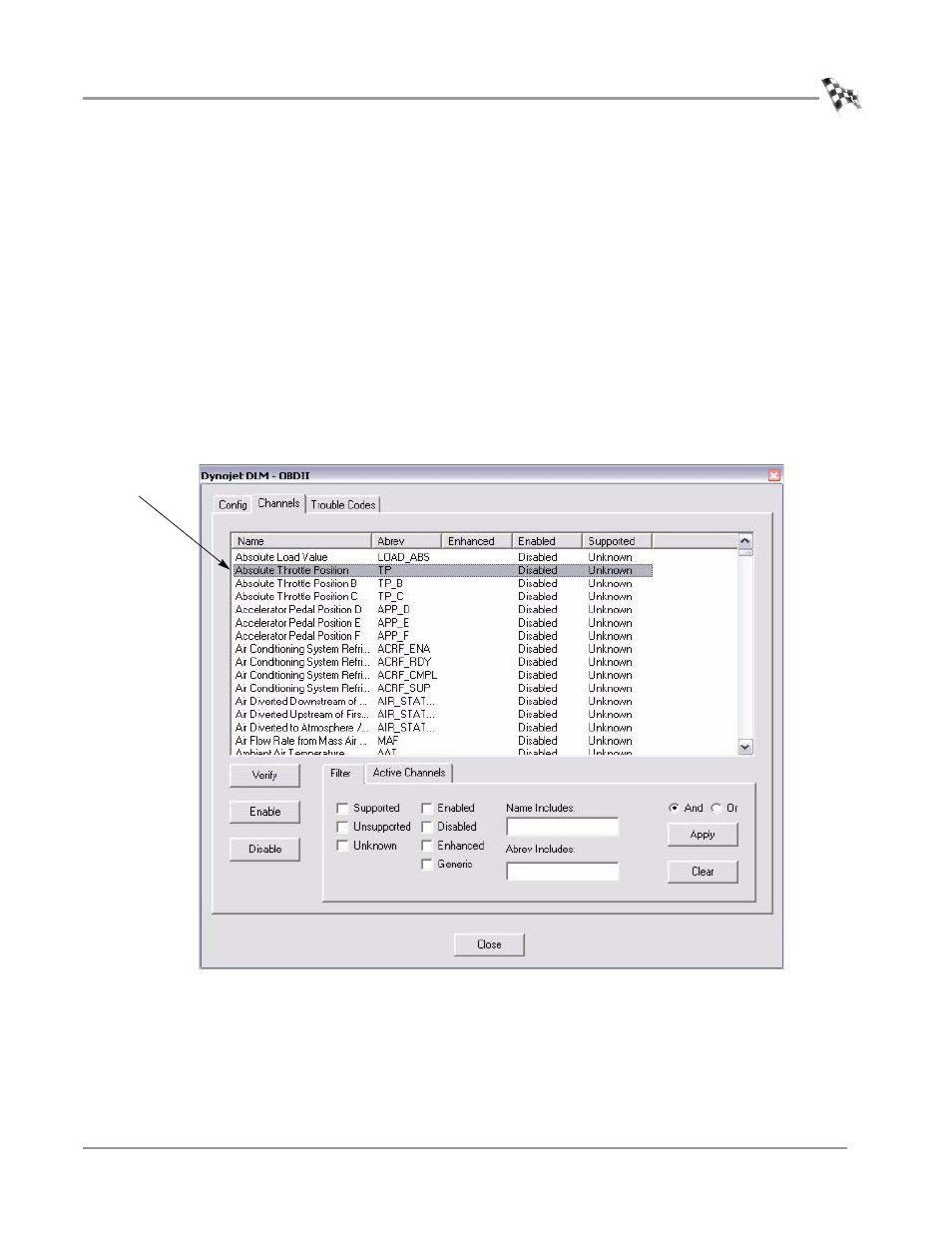

Figure 6: Channels Tab—Verifying the Supported Channels
click a channel
to select it
