Torque Module Installation and User Guide for Model 250i Dynamometers

C H A P T E R 1
Load Cell Installation

1-4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LOAD CELL INSTALLATION

This section describes how to remove the top covers, install the load cell, and replace
the top covers.

R

EMOVING

THE

C

ARRIAGE

AND

D

YNO

T

OP

C

OVER

You will need to remove the tire carriage and top cover in order to route the load cell
cable to the dyno electronics.
1

Using a 5/32-inch allen wrench, remove the two button-head screws securing the
carriage screw support bracket and set aside.

2

Remove the support bracket and set aside.

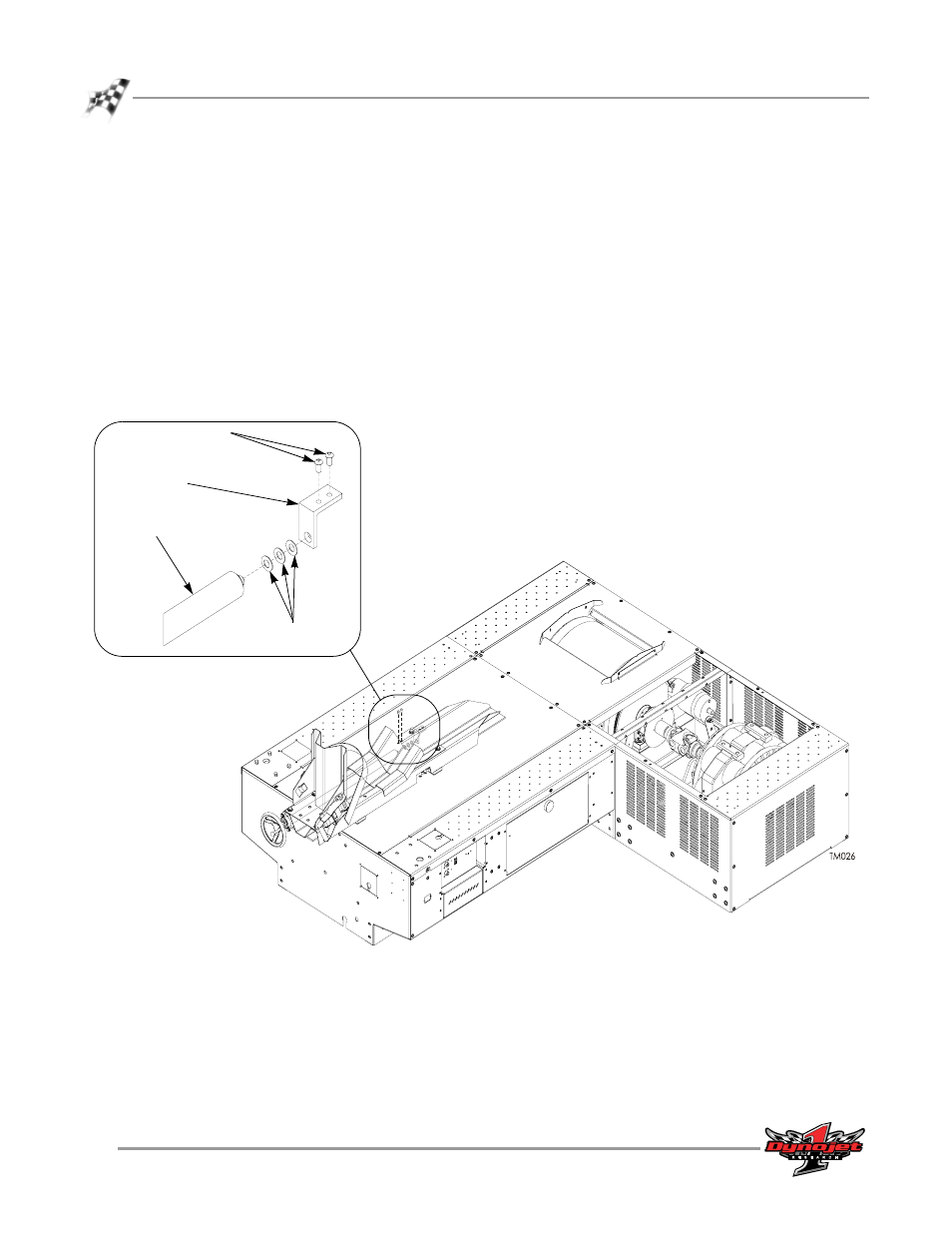

Figure 1-2: Remove the Support Bracket

screws

support

bracket

carriage screw

belleville washers
