Dynojet 250i: Torque Module - Manual (Page 14)

Torque Module Installation and User Guide for Model 250i Dynamometers
C H A P T E R 1
Torque Module Installation
1-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TORQUE MODULE INSTALLATION
This section describes how to install the Torque Module, route the load cell cable,
replace the carriage, and replace the brake cover.
A CCESSING THE D YNO E LECTRONICS
You will need to access your dyno electronics in order to add the torque module. Use
the following steps to access the dyno electronics.
1
Turn off the main power to the dyno.
To prevent possible injury, place the breaker inside the power distribution
enclosure to the off position and unplug the dyno. Refer to page 1-3 for more
information.
2 Remove the four screws securing the dyno electronics enclosure and set aside.
3 Slide the enclosure toward you and out of the dyno. Be sure not to pinch or pull
any cables.

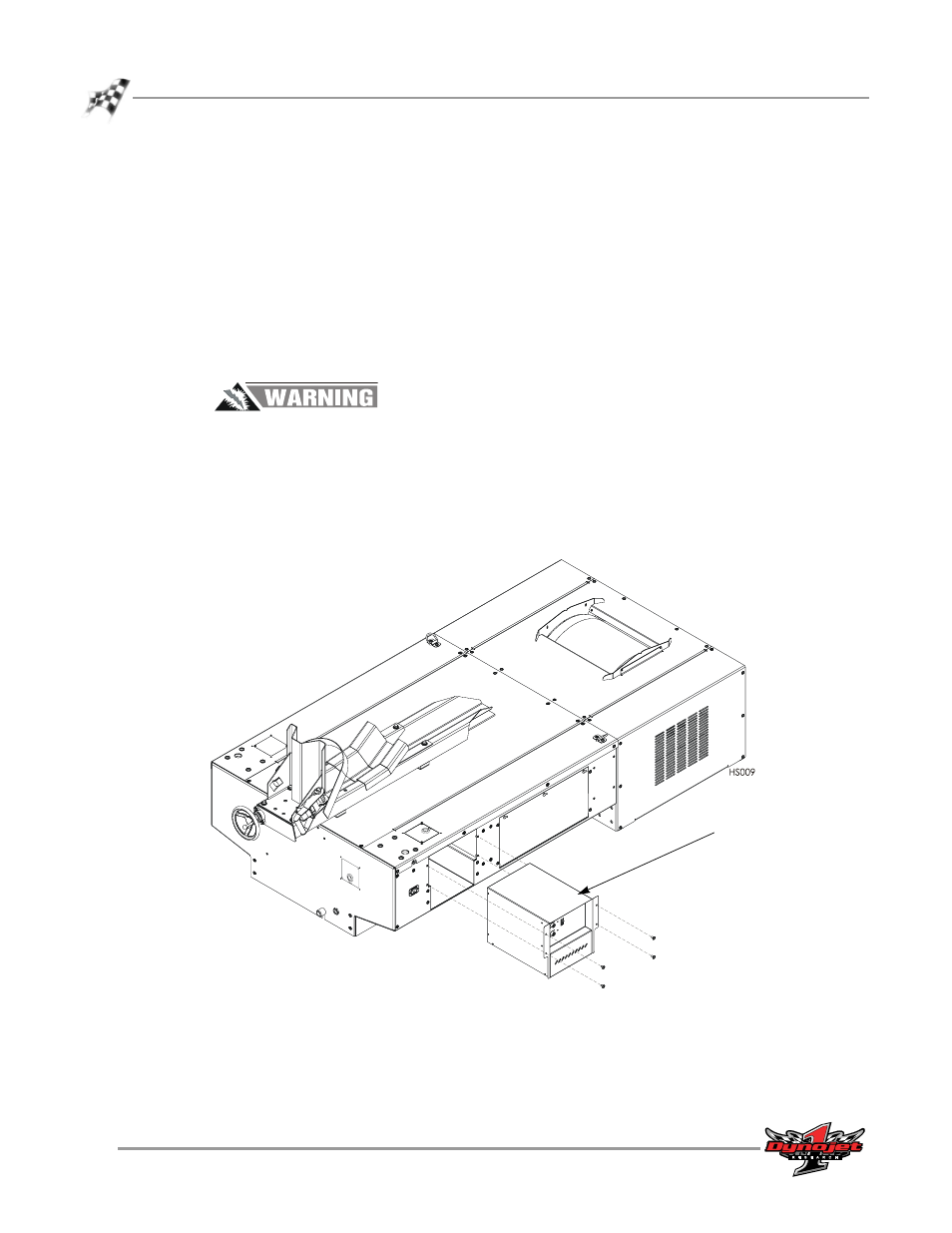

Figure 1-10: Remove the Dyno Electronics Enclosure
dyno electronics
enclosure
