Torque Module Installation and User Guide for Model 250i Dynamometers

C H A P T E R 1
Torque Module Installation

1-16

6

Plug the main power cord for the dyno in and place the breaker inside the power
distribution enclosure to the on position. Refer to page 1-3 for more information.

7

The green LED light on the Torque Module should now be on.

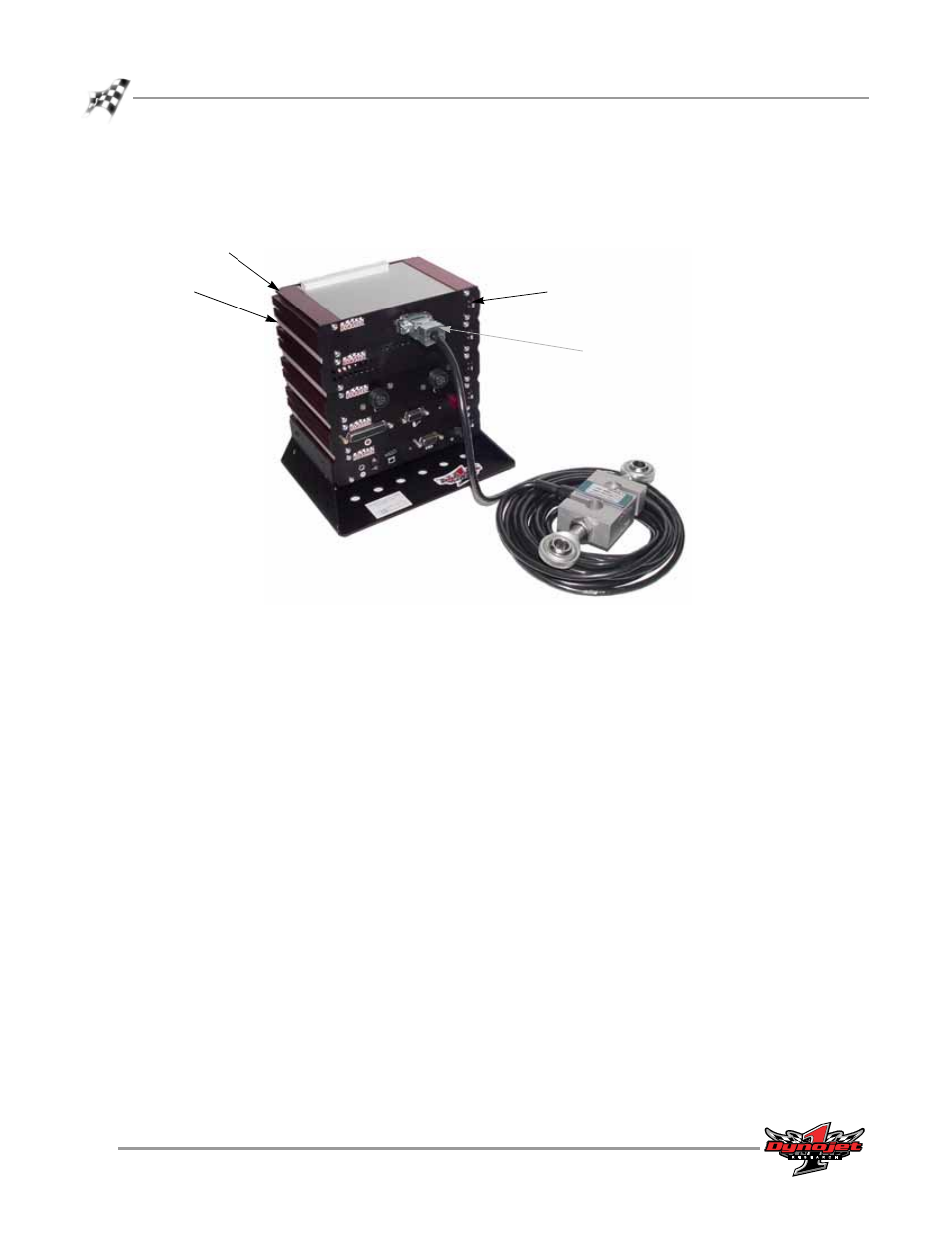

Figure 1-18: Attach Torque Module and Load Cell Cable

8

Replace the dyno electronics cover. Refer to Figure 1-11 on page 1-11.

9

Slide the dyno electronics enclosure back in the dyno. Refer to Figure 1-10 on
page 1-10.

load cell cable and port

do not attach at this time

green LED light

tie strap

torque module
