T H E TO R Q U E M O D U L E A N D W I N P E P 6
Torque Module Calibration
Version 2 Torque Module Installation and User Guide for Model 250i Dynamometers
A-3
3 Select Options  Calibrate.
Note: Before proceeding, be sure the eddy current brake is free and clear of any
obstructions. There should not be anything resting on the eddy current brake or
the dynamometer drum during this procedure.
4 Enter the Torque Module calibration value.
Enter the calibration number stamped near the bolt pattern at the end of the
calibration arm. If you do not have enough room to use the bolt pattern closest to
the end of the calibration arm, use the number stamped near the bolt pattern in
the center of the arm.
Note: Dynojet recommends you secure the calibration arm using the bolt pattern
closest to the end of the arm unless space constraints in your dyno room do not
allow you to.

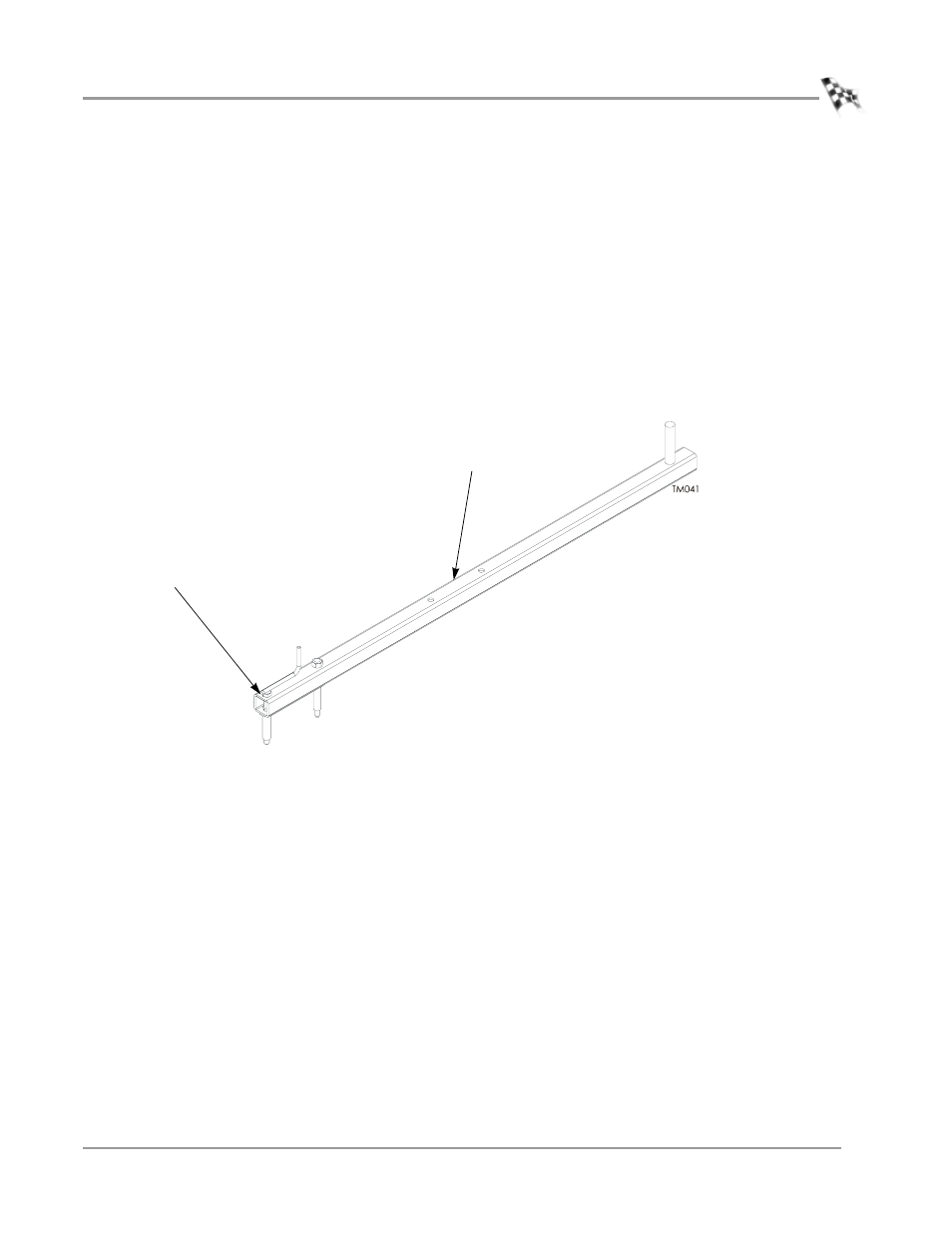

Figure A-3: Calibration Arm Number
Note: Follow the directions on the screen exactly. Failure to perform the
directions accurately will result in improper torque values.
bolt pattern closest to
the end of the
calibration arm
bolt pattern near the
center of the
calibration arm
