Towel bar, Rollers – Coral Industries 6000 Bypass with BTB Towel Bar - 26R1-P (If Purchased from a Plumbing Wholesaler – Most Common) User Manual
Page 7

26R1P 11/10

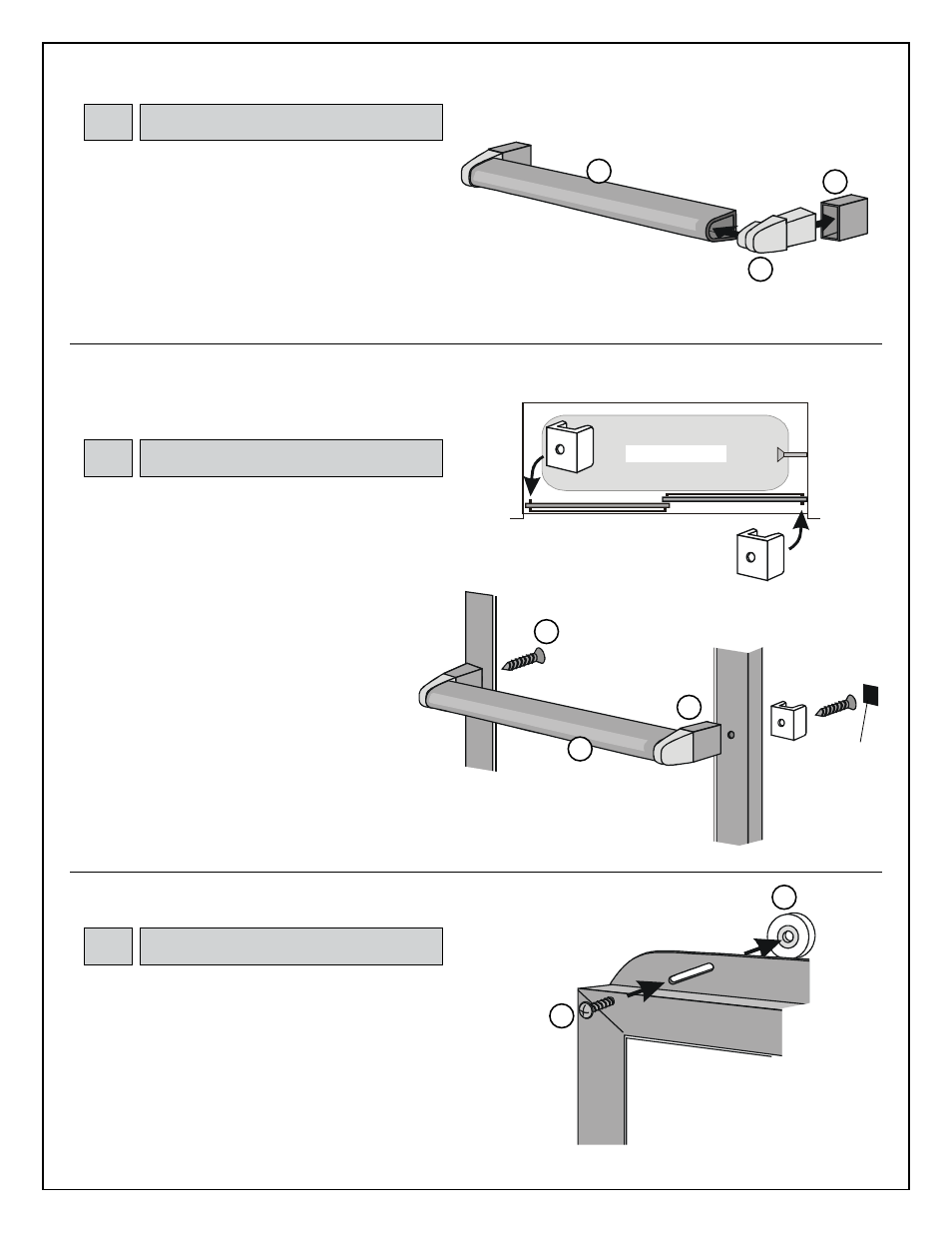

mount rollers (F) to top channel of doors using 8-32 x 3/8"
truss head screws (o). Rollers are to be mounted on same
side of doors as towel bars and at the midpoint of slots.
Mount towel bar and
pull/stop (e) to door panel
using
8A x 1 1/4" flat head screw (e).
Place
pull/stop label in recessed area of pull/
stop, covering screw head.
On opposite end of towel bar, mount bracket to
door panel using
8A x 1" pan head screw.
Repeat for remaining panel.
Note: Towel bar for outside panel faces outside
of shower, while towel bar for inside panel faces
inside of shower. Pull/stops should be mounted
on edge of panel closest to jambs as shown in
illustration.
Slide
sleeves from towel bar bracket kit (e) onto towel
bar brackets. Insert towel bar brackets (e) into each
end of
towel bar (D).
10
Towel Bar
(D)
11
Towel Bar
(D)
12
Rollers
(F)
towel
bar
towel bar bracket
bracket
sleeve
e
e
d
inside oF bath
Pull/stop
Pull/stop
8a x 1 1/4"
Flat head screw
towel bar
bracket with
sleeve
towel bar
d
8a x 1"
Pan head screw
e
e
Pull stop
label
Roller
8-32 x 3/8"
truss head screw
F
o
