26R1P 11/10

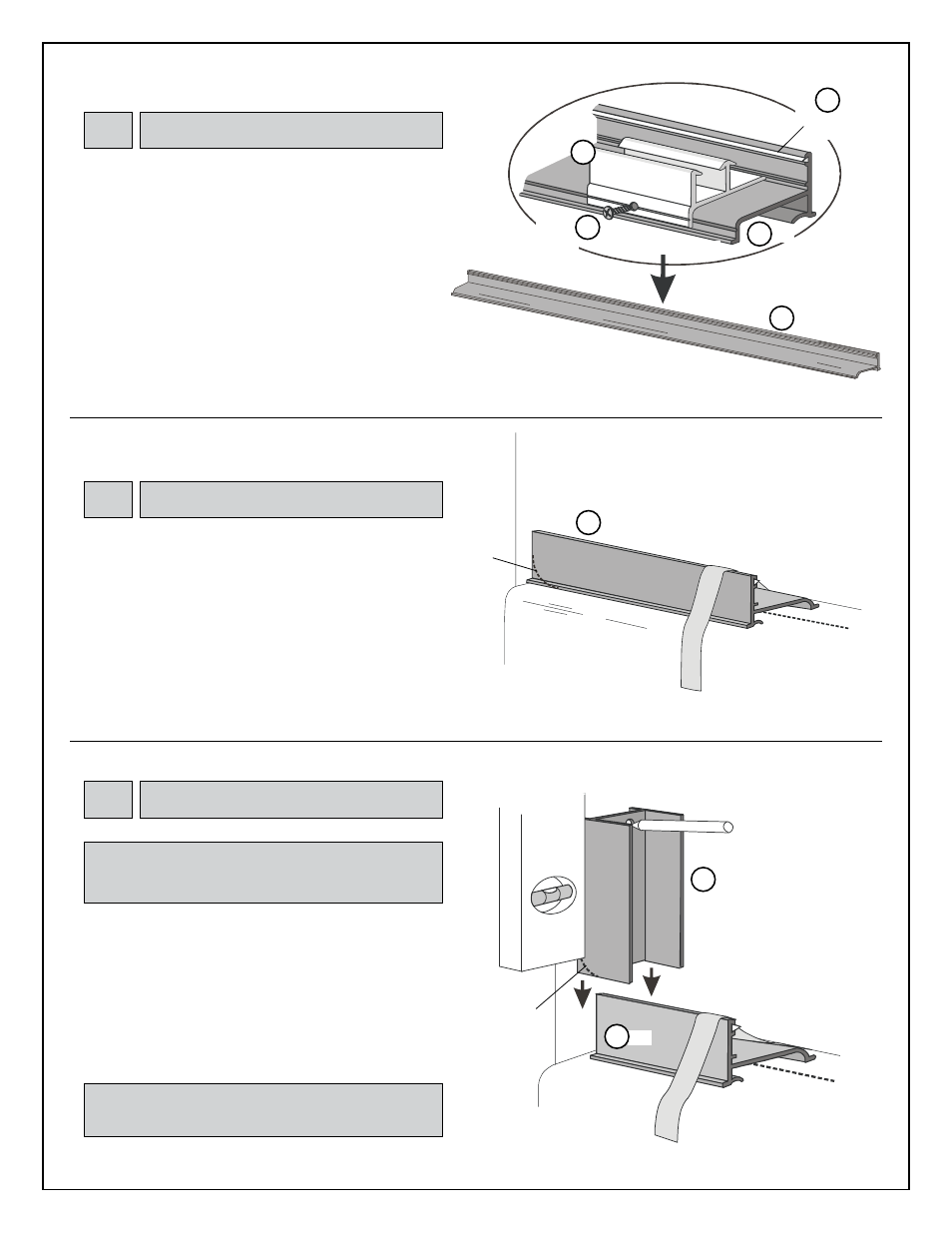

slide vinyl track guide (j) into small groove on upright of sill.

trim end flush with edge of sill.

locate center of sill. Position guide (g) at center of sill with

curved leg fitting over curve of sill, and back of guide fitting

under small lip on back upright of sill.

Position 1/8" drill bit in small groove on curved leg of guide

and drill through guide into sill. secure guide to sill with 8a x

3/8" pan head screw (n).

Position sill on centerline of tub with tall edge of sill

toward outside of tub. if necessary for a smooth fit, file

ends of sill to fit contour of unit.

tape sill to tub with masking tape. this will help hold sill

in place while positioning jambs.

4

Sill

(a)

/ guides

(J), (g)

Place one jamb (b) against wall, with bottom of jamb resting

on sill. if necessary for a smooth fit, file back edge of jamb to

fit contour of your unit.

align jamb vertically using a level and mark wall through

prepunched holes. Remove jamb and repeat procedure for

remaining jamb on opposite side.

drill where marked using 1/8" drill bit.

6

Jambs

(B)

For 901 jambs, short legs should be against wall.
For 531 jambs, long legs should be against wall.

when anchors (m) are used holes should be drilled using

3/16" drill bit. (use masonry bit for tile.)

5

Sill

(a)

Vinyl track

guide

j

Place guide at

center of sill

sill

inside oF bath

sill

a

a

guide

g

8a x 3/8"

Pan head

screw

n

centerline

masking

tape

sill

a

outside oF bath

File to fit con-

tour of unit

jamb

level

sill

a

b

mark wall through

prepunched holes

centerline

outside

oF bath

File to fit

contour of

unit
