Hanging inside door panel, Caulking – Coral Industries Provincial Classic Bypass with LSL Sill - 2CC1 (Most Common) User Manual
Page 7
2CC1-GP 3/07
Inside
Door
Panel
Header
Guide
Header
N
Inside
Door
Panel
Seal unit by caulking along outside edge of
enclosure where metal and bath meet,
especially where sill and tub meet. If desired,
caulk inside enclosure where jambs meet
walls.
Sill
OUTSIDE
OF BATH
OUTSIDE
OF BATH
C
C
10

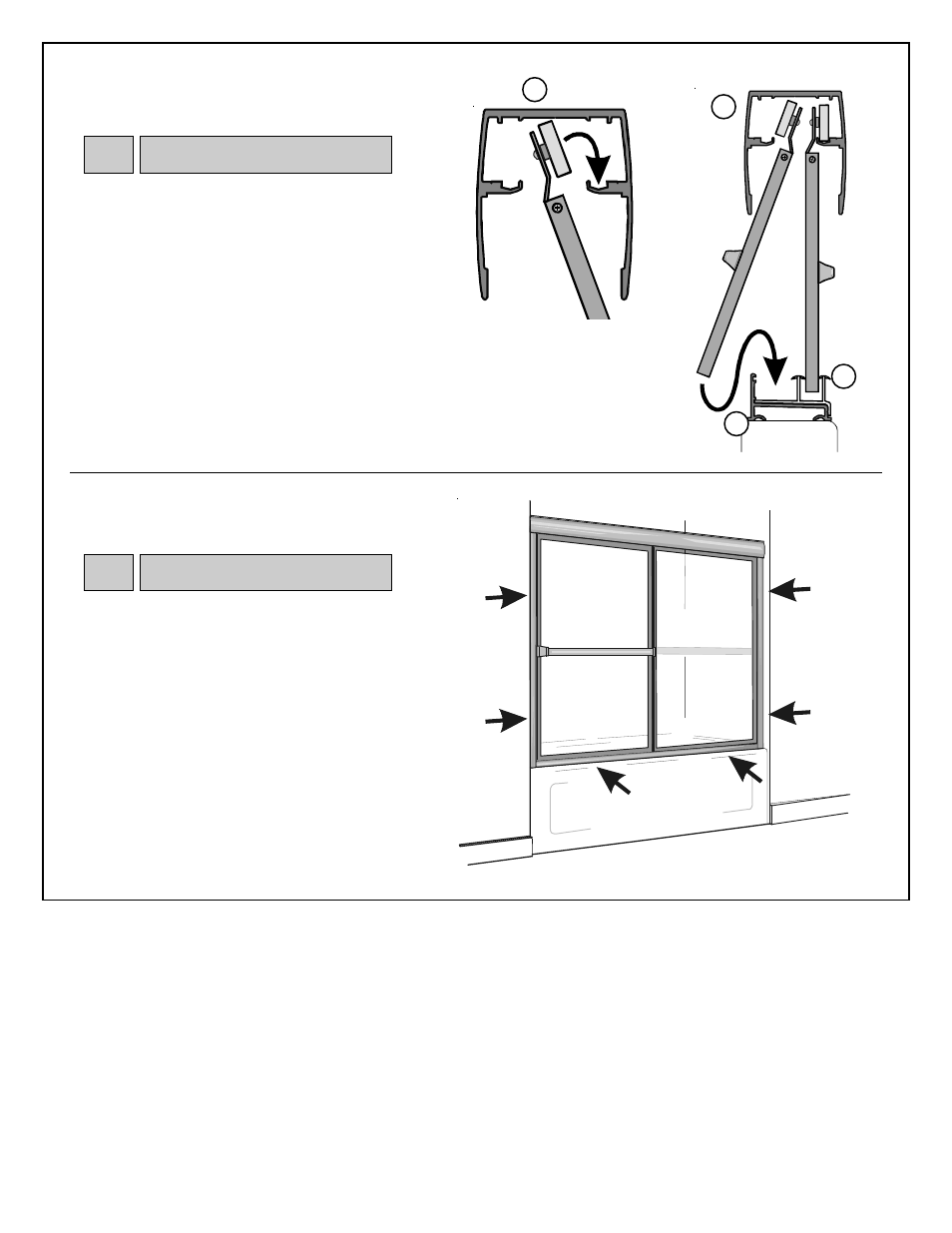

Hanging Inside Door Panel
11
Caulking
Caulk
A
Lift inside door panel into header with towel bar
facing inside of bath. Seat rollers in roller track
while guiding bottom of door into sill guide.
Repeat for outside door, hanging panel with
towel bar facing outside of bath.
Caulk
