Rollers, Header, Towel bar – Coral Industries Provincial Classic Bypass with LSL Sill - 2CC1 (Most Common) User Manual
Page 6
2CC1-GP 3/07

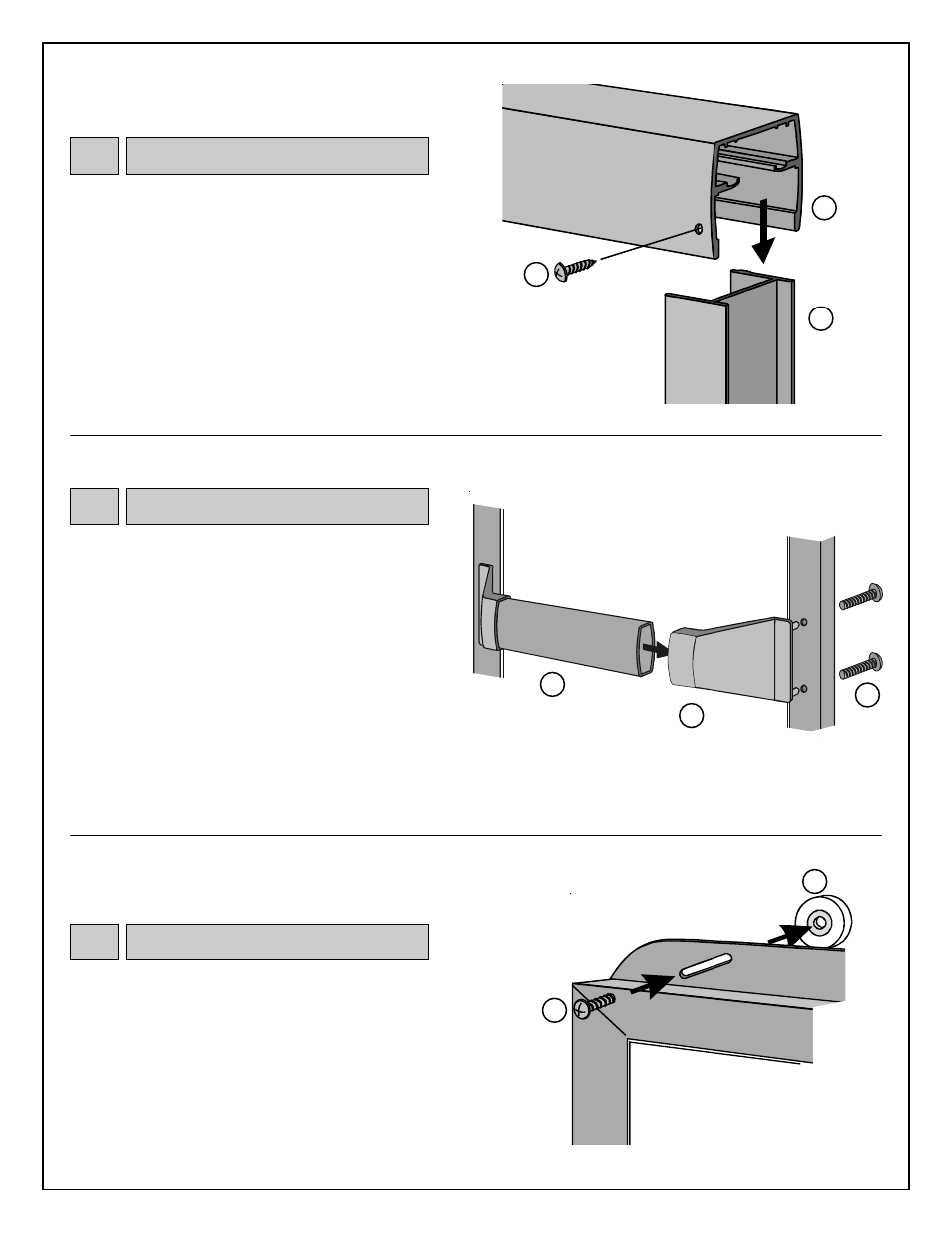

Mount rollers (H) to top channel of doors using
8-32 x 3/8" truss head screws (I). Rollers are to be
mounted on same side of doors as towel bars and at
the midpoint of slots. Rollers may be positioned up or
down to adjust for out of plumb conditions.
Roller
8-32 x 3/8"
Truss Head
Screw
9
Rollers
(H)
H
I
Lower header over jambs until seated squarely on both
jambs.
Attach header to jambs by drilling a 1/8" hole through
header into jambs on inside of tub near walls. Secure
using 8A x 3/8" truss head screws (J).
Towel bar for outside panel faces outside of bath while
towel bar for inside panel faces inside of bath.
Mount one towel bar bracket from towel bar kit (P) onto
door channel using 8-32 x 3/8" truss head screws.
Insert towel bar (D) into mounted bracket. Slide second
towel bar bracket onto opposite end of towel bar and
secure to door.
Repeat for remaining door panel.
C
B
8A x 3/8"
Truss Head
Screw
Header
Jamb
J
INSIDE OF BATH
7
Header
(C)
8
Towel Bar
(D)
P
8-32 x 3/8"
Truss Head
Screw
D
Towel Bar
P
Towel Bar
Bracket
