Jamb, Bumper, Header – Coral Industries Provincial Classic Bypass with LSL Sill - 2CC1 (Most Common) User Manual
Page 5
2CC1-GP 3/07

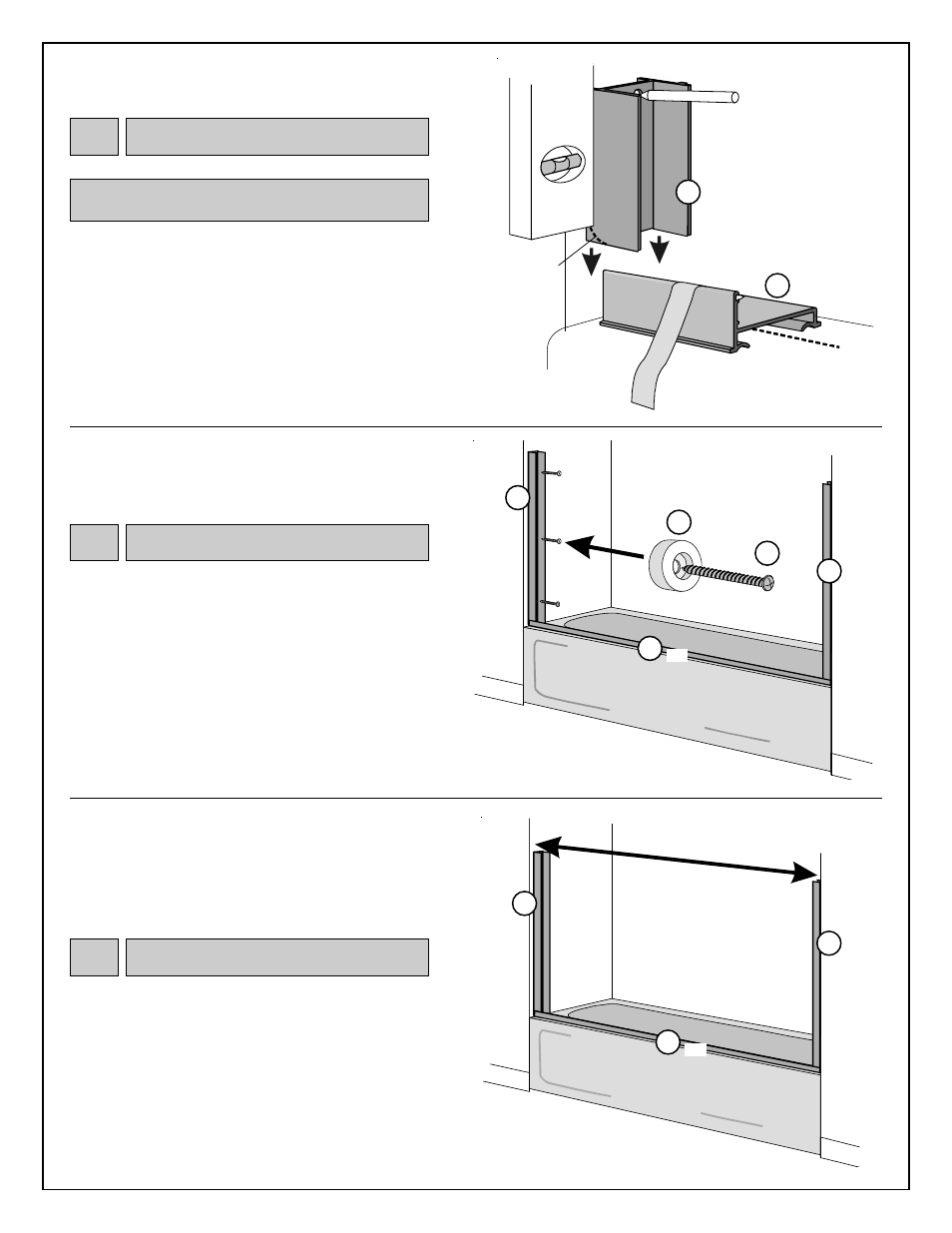

Place one jamb (B) against wall with short legs toward
wall and bottom resting firmly on sill. If necessary for a
smooth fit, file back of jamb (short legs) to fit contour of
your unit. Align jamb vertically using a level and mark
wall through prepunched holes. Repeat with remaining
jamb.
Remove jambs and drill where marked using 1/8" drill
bit.
Jamb
Level
Sill
B
Centerline
Masking
Tape
Mark wall
through
prepunched
holes.
A
File to fit
contour
of unit if
needed.
OUTSIDE
OF BATH
4
Jamb
(B)
When anchors (F) are used holes should be drilled
using 3/16" drill bit. (Use masonry bit for tile.)
Reposition jambs on tub and mount to wall using
8A x 1 1/4" pan head screws (K). Mount bumpers (G)
in middle holes.
Jamb
B
Jamb
B
8A x 1 1/4"
Pan Head
Screw
G
Bumper
K
Sill
A
OUTSIDE OF BATH
5
Jamb
(B)
/ Bumper
(G)
Measure from wall to wall (over the top of both jambs)
and cut header (C) to that measurement.
B
B
Jamb
Jamb
Sill
A
6
Header
(C)
OUTSIDE
OF BATH
