Coral Industries Regal Swing Door (1/4 Frameless) - 4FJ - Manual (Page 5)

4FJ-P 8/08
Sill
OUTSIDE OF SHOWER
C
Vinyl
Door
Seal V

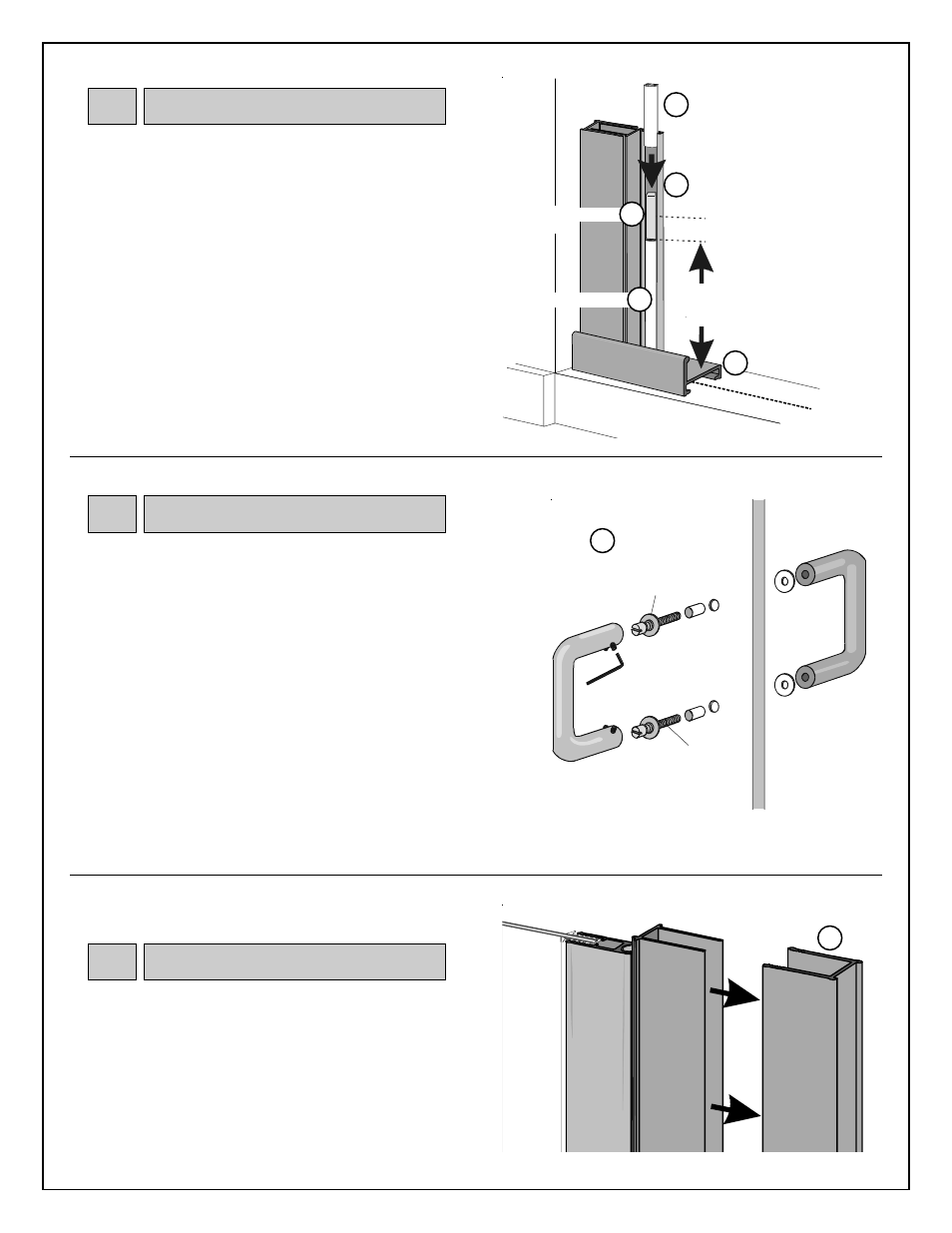

Vinyl door seal must be trimmed into two pieces and
replaced in open channel of magnetic door stop with metal
slide (attached to magnet in magnetic catch kit (G)) in
between vinyl pieces.
Mark center of magnetic door stop. Trim vinyl door seal to
fill open channel of door stop from sill to 2” below center
mark.
Insert vinyl in channel.
Insert metal slide (attached to magnet in magnetic catch kit)
in channel on top of vinyl.
Insert remaining piece of vinyl in channel on top of metal
slide. Trim vinyl flush with door stop at top of unit.
2” Below Center
Center
Magnetic Door Stop
G Metal Slide
V Vinyl Door Seal
Cut vinyl door seal to fill
area between sill and 2”
below center mark.
4 Metal Slide
(G)
A
5 Push / Pull Handle Kit
(F)
Handles will be mounted on glass before hanging door panel.
Push / Pull handle kit (F) comes with parts assembled in the
order they will be once installed on glass. Disassemble parts.
Place bushings in holes in glass. Trim as needed so that
bushings are flush with surface of glass. Place one plastic
washer on each connector screw and insert screws (from
inside surface of glass) through bushings in glass.
Place second plastic washer on exposed end of connector
screws on outside surface of glass. Holding exterior handle in
place on outside surface of glass, tighten connector screw to
secure handle.
On inside surface of glass, slip interior handle over connector
screws and tighten with 3/32" allen wrench.
Exterior
Handle
Plastic
Washer
Handle
Connector
Screw
Bushing
Plastic
Washer
INSIDE OF SHOWER
3/32 Allen
Wrench
Interior
Handle
Push/Pull Handle Kit F
Position hinge door stop, which is attached to door panel,
into jamb on opposite side from magnetic door stop.
For safety purposes, door should be installed to open out
from shower.
Hinge Door Stop
(attached to door)
OUTSIDE OF SHOWER
Jamb B
Door
Panel
6 Hinge Door Stop with Door Panel
