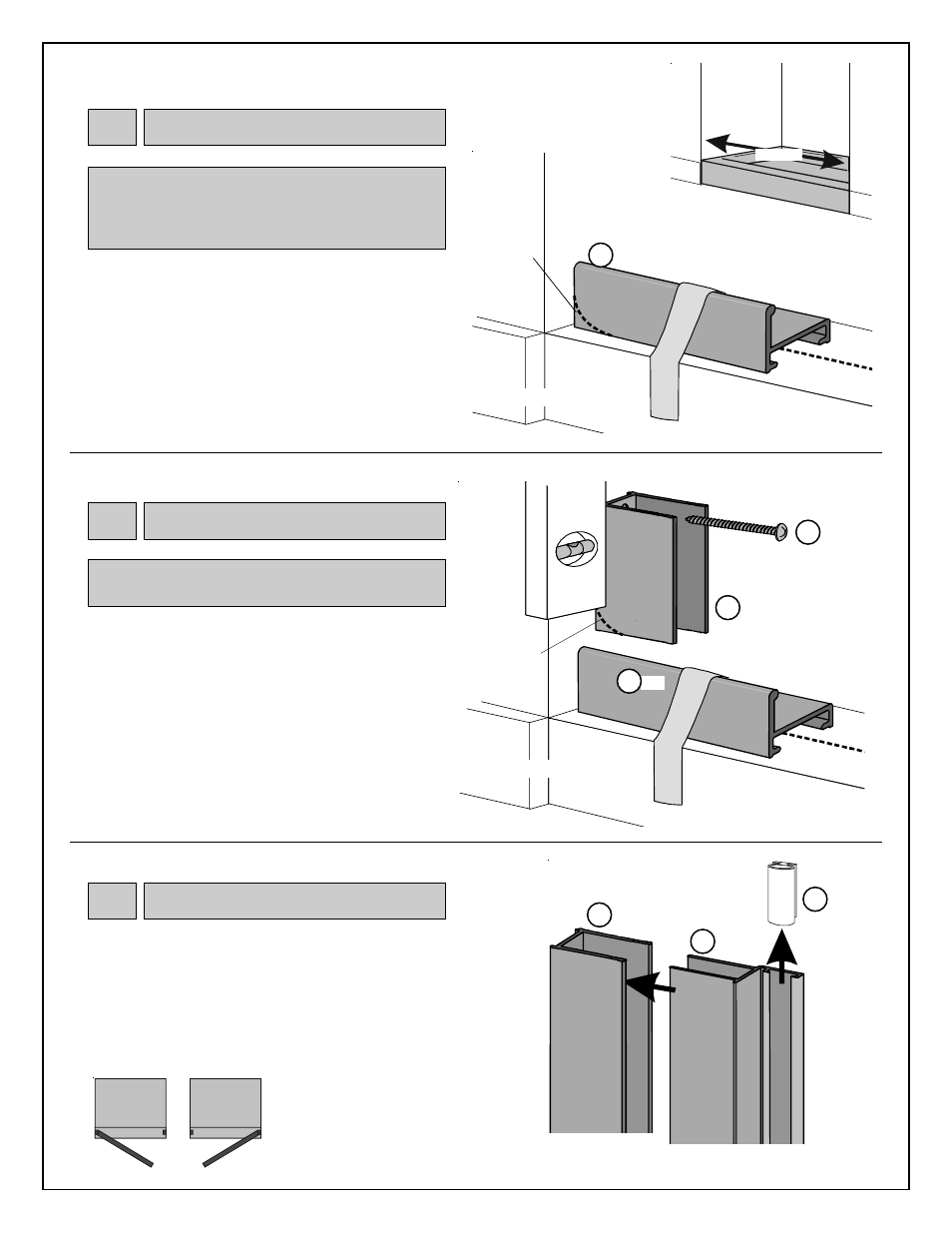

Due to the manufacturing process, there may be rack
marks present at one end of your sill. Sill must be
trimmed to fit your individual opening. When cutting
sill, make certain to trim off end with rack marks.
Place jambs (B) on sill with short legs against wall. Align
vertically on wall using a level. Mark wall through
prepunched holes. Remove jambs and drill where
marked using 1/8" drill bit.
If necessary, file sharp corners on back of jambs to fit
contour of your unit.
Reposition jambs on wall and secure using 8A x 1" pan
head screws (J).
Contour
as
needed
Jamb
B
Level
Measure opening at threshold of shower and cut sill (A)
to exact measurement. If necessary, file sharp corners to
fit contour of your unit.
Position sill on center of threshold with tall edge of sill
toward outside of shower. Tape sill to threshold with
masking tape to hold in place while positioning jambs.
Threshold
Centerline
Masking
Tape
Sill A
File sharp
corners as
necessary
to fit
contour of
your unit
Sill
A
Centerline
Measure
8A x 1" Pan
Head Screw
J
OUTSIDE OF SHOWER
OUTSIDE OF SHOWER
2 Jambs
(B)
When anchors (L) are used, holes should be drilled
using 3/16" drill bit. (Use masonry bit for tile.)
Remove vinyl door seal (V) from channel of magnetic
door stop (C).
Choose “opening” side onto which magnetic door stop will
be attached. Door stop is normally mounted in jamb nearest
to showerhead. Slide magnetic door stop into jamb with
channel facing outside of shower.
Vinyl
Door
Seal
Magnetic
Door Stop
V
INSIDE
OF
SHOWER
INSIDE
OF
SHOWER
Door Door
Door may be installed to
hinge from either jamb.
3 Magnetic Door Stop
(C)
1 Sill
(A)
Jamb
B
Channel of
magnetic door
stop faces
outside of
shower
C
OUTSIDE OF SHOWER
