6N0 6/09
Vinyl glazing is used to cushion and secure glass in metal.
There are two types of vinyl glazing included in your unit -
horizontal (I) and vertical (H). The vertical glazing is thinner
and will be installed first.
Water may be used to lubricate glazing and make installation
easier. Glazing is designed to fit tightly. A wooden block
may be used to press vinyl into place.
Measure length of panel glass form header to sill and add
1/4". Cut 2 pieces of vertical glazing (H) to this
measurement, one for inside and one for outside of panel.
Press ends of glazing into place first, fitting glazing into gap
between metal and glass. Work toward center, pressing
glazing into place.
Repeat for inside of shower and for opposite side of panel
on inside and outside of shower.
H
Glazing =
Measurement + 1/4"
Vertical
Glazing
OUTSIDE OF SHOWER
Vertical
Glazing
Jamb
12 Vertical Glazing
(H)
Vertical
Glazing
Glass

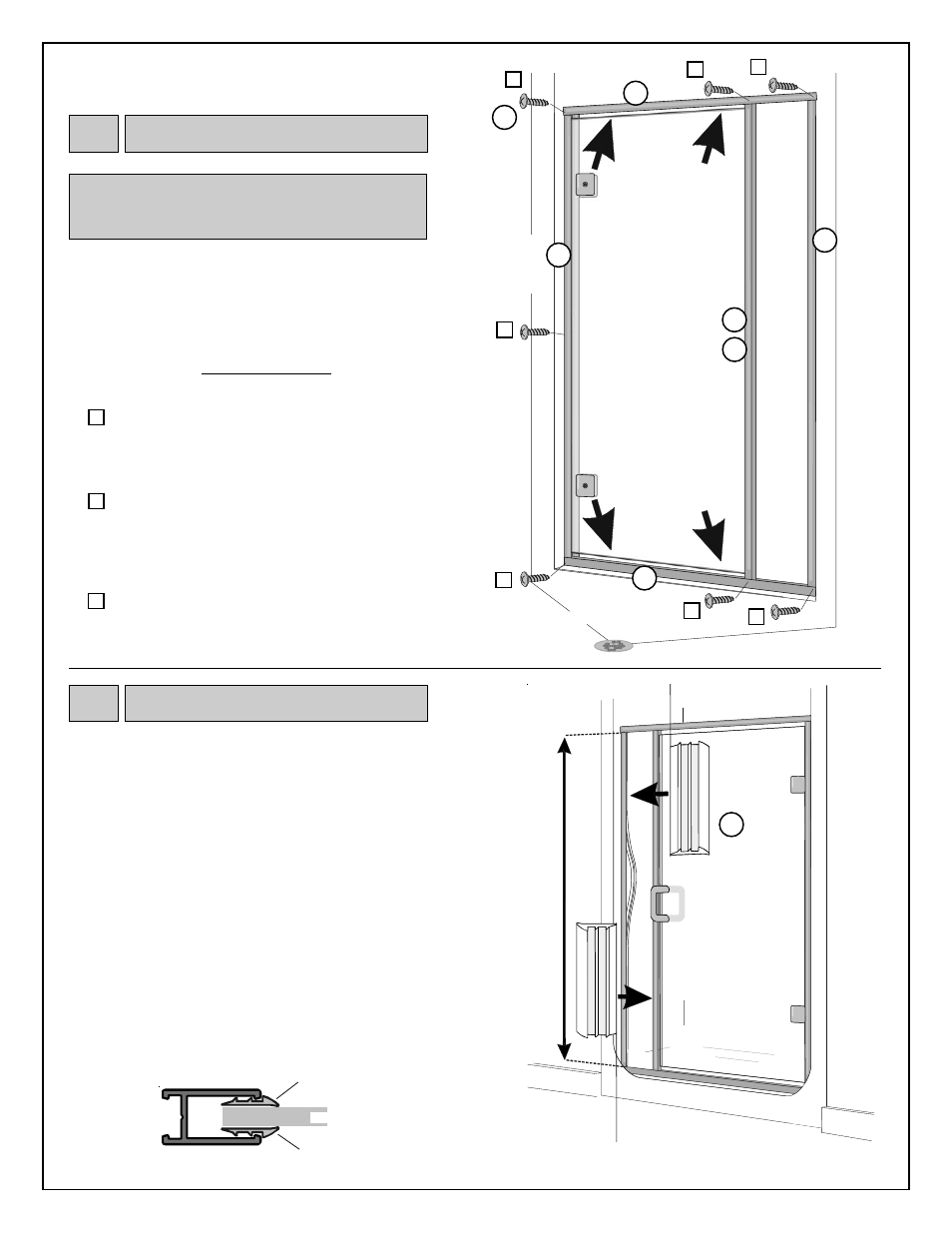

Check alignment of door, panel glass, panel jamb, and
magnetic door stop. Adjust as needed so that door closes
evenly, there is an even reveal of space at top and bottom
of door, and magnetic slide aligns with handle magnet.
Once desired alignment of parts has been achieved,
secure parts together from inside of shower using 8A x 3/8"
pan head self-drilling screws (M).
Attach wall jamb to hinge door stop in three locations
- at top of unit, securing header, jamb and door stop
together; at midpoint; and at bottom of unit, securing
sill, jamb and door stop together.
Attach magnetic door stop to panel jamb in two
locations - at top, securing header, magnetic door
stop and panel jamb together, and at bottom,
securing sill, magnetic door stop and panel jamb
together.
Attach opposite wall jamb to header at top and sill
at bottom.
When drilling or screwing into metal, make certain
that glass is clear from area. Do not hit glass with
drill bit.
D Jamb
D
Jamb and
Magnetic
Door Stop
B
Header
INSIDE OF SHOWER
Check for even reveal of
space at top and bottom
of door glass
Sill
M
8A x 3/8"
Pan Head
Self-Drilling
Screw
11 Aligning / Securing Verticals
a
b
c
a
b
c
a
b
a
c
Jamb
and
Hinge Door Stop
E
D
A
