6N0 6/09

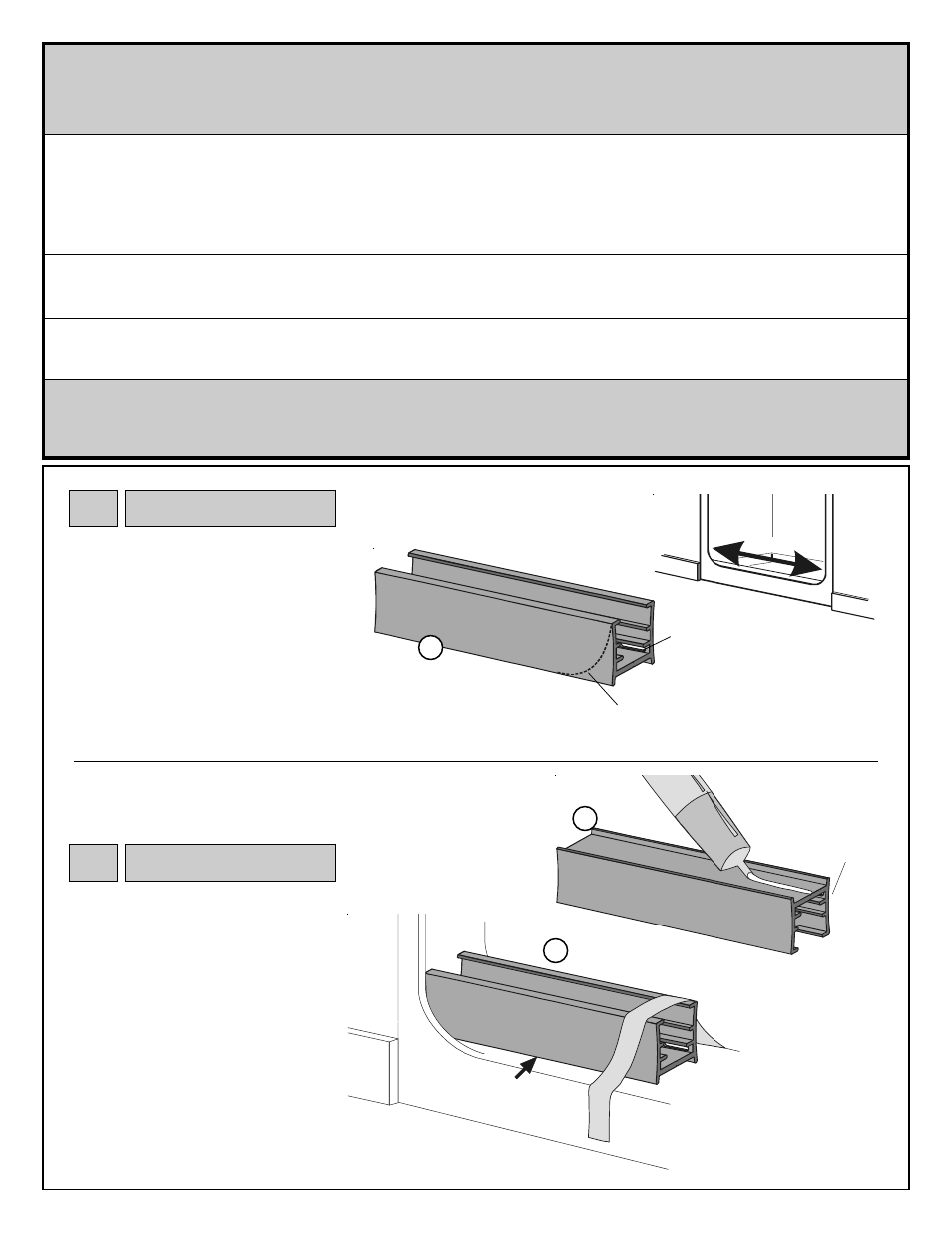

Header and sill are identical except that the
sill has weep holes on inside surface.
Identify sill with weep holes.
Determine placement of sill (A) on shower
threshold. Normally door is installed with
sill centered on the flat surface of threshold.
Measure opening at threshold and cut sill to
that measurement. If necessary, file sharp
edges to fit rounded corners of your unit.
With sill in upside down position, apply a
1/4" bead of caulk along bottom of sill.
Position sill on threshold with weep holes
facing inside of shower. Tape to threshold
with masking tape to hold in place while
positioning jambs.
Clean caulk that squeezes out from under
sill with a wooden wedge, plastic scraper, or
popsicle stick.
Measure
1 Sill
(A)
OUTSIDE OF SHOWER
Sill
A
File sharp edges to
fit contour of your
unit if needed.
Weep holes
face inside
of shower.
2 Sill
(A)
Sill
A
Silicone
Caulk
Weep holes
face inside
of shower.
Threshold
Masking
Tape
Sill
A
OUTSIDE OF SHOWER
Clean caulk that
squeezes out from
under sill.
Before starting installation of your new enclosure, carefully read all instructions
and lay out parts to become familiar with their identity.
Frameless patch-hinge doors, by nature of their design, are not completely watertight.
CLEANING
SEALING
Seal unit by caulking along outside of enclosure where metal and bath meet, especially where sill meets threshold. If desired,
caulk inside of enclosure where jambs meet walls.
Cleaning and care of your enclosure is important to its lasting beauty. A nonabrasive liquid cleaner is recommended.
Never use scouring powder or pads.
Kwikstal doors are designed to be reversible and may be installed to hinge-left or hinge-right. They may
hinge off wall jamb or panel jamb. The following instructions show a hinge-left door, hinging off wall jamb.
Other arrangements are installed in a similar manner.
Do not attempt to cut mirrors or glass used in this enclosure. Tempered glass and mirror will shatter if cut.
Care should be taken when standing raw glass on its edge. Glass may shatter if corners are bumped or edge is rested
on a rough floor surface. Cardboard, wood blocks (provided with hardware), or a similar surface is a safe resting surface
for glass.
C A U T I O N
