Coral Industries Hyaline Swing Door/ILP (1/4 Frameless) - 6N0 - Manual (Page 4)

6N0 6/09
On opposite side of unit, place hinge door stop (with
door attached) over wall jamb with bottom of door
stop seated in sill. For safety purposes, door should
be installed to open out from shower.
Place remaining jamb (panel jamb) over panel glass
with long legs of jamb fitting over edge of glass 3/8", and
bottom of jamb seated in sill.
Vinyl door seal (G), in magnetic door stop (E), must be
removed from channel, trimmed into two pieces and
replaced with metal slide (R) in between vinyl pieces.
Mark center of magnetic door stop. Trim vinyl door seal
to fill open channel of door stop from sill to 2" below
center mark. Reinsert cut vinyl in channel. Follow with
metal slide and remaining piece of vinyl. Trim vinyl flush
with door stop.
Slide magnetic door stop over jamb, with bottom of door
stop seated in sill and vinyl door seal facing outside of
shower.
Door Panel
A
Sill
Hinge Door
Stop
attached to
Door Panel
OUTSIDE OF SHOWER
B Jamb
OUTSIDE OF
SHOWER
8 Hinge Door Stop

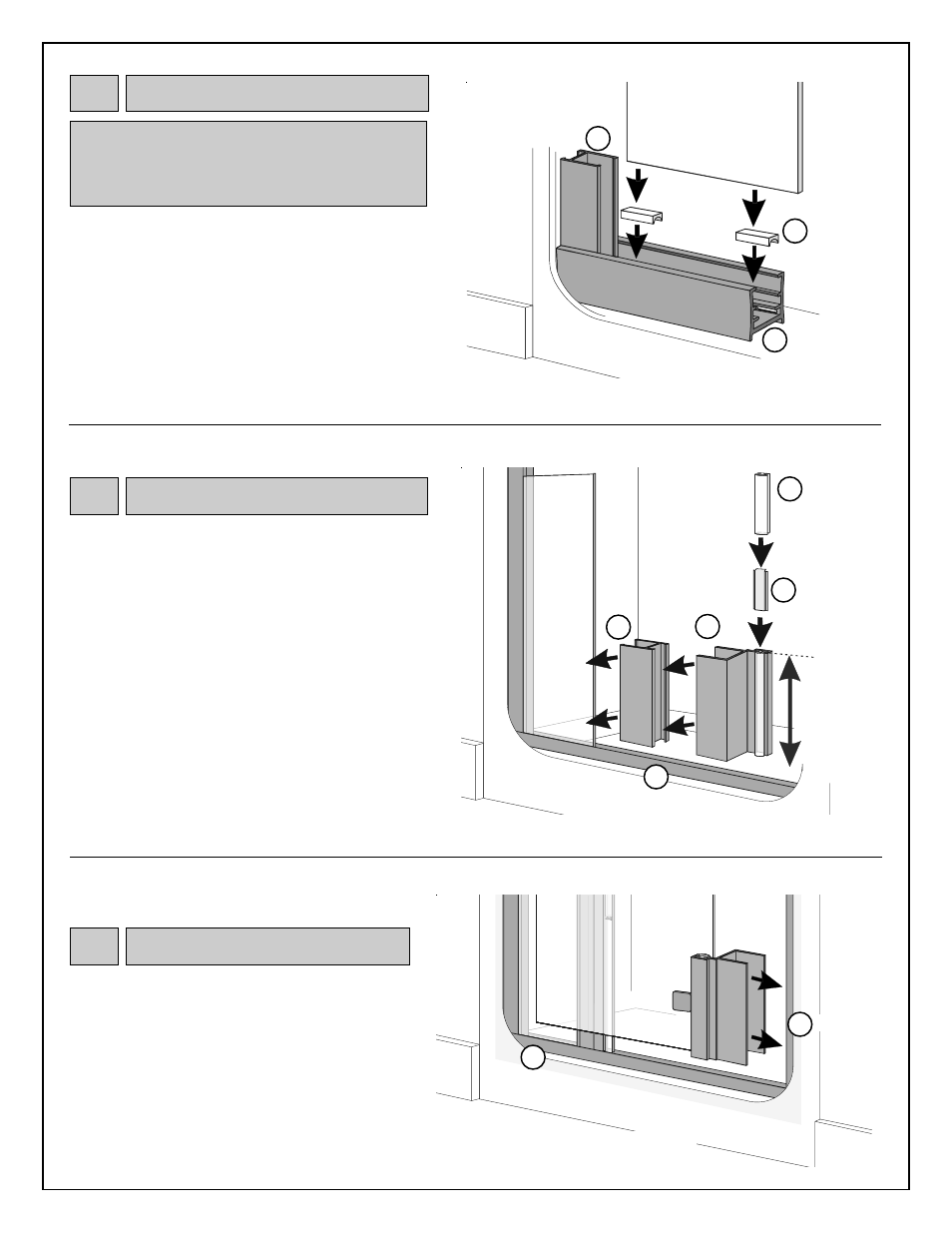

Setting blocks (O) are used in sill to provide a resting
surface for panel glass. On panel side of unit, place one
setting block in sill at edge of wall jamb. A second setting
block should be placed in sill to support other corner of
panel glass once glass in placed in unit. Measure panel
glass and position remaining setting blocks accordingly.
Place panel glass in wall jamb with bottom of glass resting
on setting blocks in sill and side of glass seated in wall
jamb 3/8".
O Setting
Blocks
OUTSIDE OF SHOWER
Panel Glass
A Sill
Jamb D The following instructions call for glass to seat in
verticals 3/8". This distance may be adjusted from
1/4" - 1/2" to accommodate out-of-plumb walls and
allow for a better fit of parts.
6 Setting Blocks
(O)
/ Side Panel
7 Jamb
(D)
/ Magnetic Door Stop
(E)
Cut vinyl
door seal to
fill area
between sill
and 2" below
center mark
D
Jamb
E
Magnetic
Door Stop
Vinyl Door
Seal
faces outside
of shower
A
Sill
Metal
Slide R
G
