0S3-GP 6/02

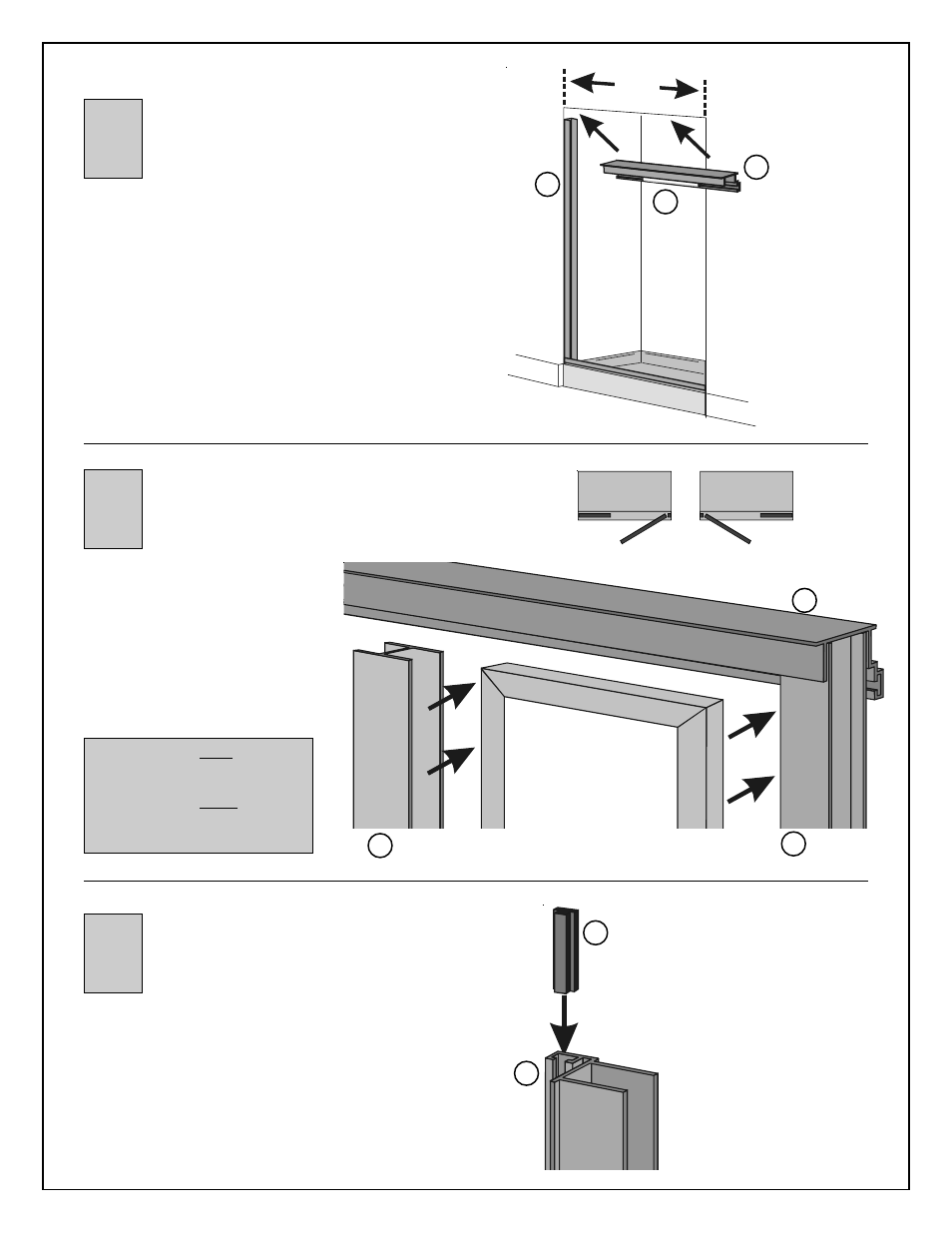

Make certain that vinyl steam seal (H) is inserted in slot of
header (C). Slide steam seal toward center of header.

Measure wall to wall opening at top of jamb and cut header
to that measurement. Place header in position over jamb
with long leg of header toward inside of shower and vinyl
steam seal facing outside of shower.

Hold header in place while positioning remaining jamb on
wall. Secure jamb to wall using 8A x 1" pan head screws.
Header should rest on top of jambs.

3

Header

Vinyl
Steam
Seal

Jamb

OUTSIDE OF SHOWER

B

C

H

Measure

Long leg of
header is
toward inside of
shower with
vinyl steam
seal facing
outside of
shower.

4

Choose side on which side panel
will be mounted. Insert side panel
into jamb with bottom resting on sill.
Parts will be secured after door is in
place and adjustment has been
made for proper alignment.

Slide double channel (D) onto side
panel.

Header

C

Jamb

Side

Panel

OUTSIDE OF SHOWER

B

Double

Channel

D

On units with clear, painted

glass, the painted surface of
glass faces outside of shower.

On units with tinted, painted

glass, the painted surface of
glass faces inside of shower.

Magnetic Strip

G

Slide magnetic strip (G) into slot on
magnetic door stop (E). Trim ends
even with door stop using scissors.

5

Magnetic

Door Stop

E

Door may be
installed to hinge
from either wall jamb.

Side

Panel

INSIDE OF

SHOWER

INSIDE OF

SHOWER

Door

Door

Side

Panel
