Coral Industries Hyaline Swing Door/DPNL (1/4 Frameless) - 6T0 - Manual (Page 6)

6T0 6/09
B
D
Wall
Jamb
Header
OUTSIDE OF SHOWER
Glazing =
Measurement + 1/4"
I
Horizontal Glazing
Vinyl glazing is used to cushion and secure glass in metal.
There are two types of vinyl glazing included in your unit -
horizontal (I) and vertical (H). The horizontal glazing is
thicker and will be installed first. Water may be used to
lubricate glazing and make installation easier. Glazing is
designed to fit tightly. A wooden block may be used to press
vinyl into place.
Measure width of panel glass from wall jamb to panel jamb
and add 1/4". Cut 2 pieces of horizontal glazing to this
measurement, one for inside and one for outside of panel.
Press ends of glazing into place first, fitting glazing into gap
between metal and glass. Work toward center, pressing
glazing into place.
Install glazing for both side panels working from outside to
inside; bottom to top.
Door Panel
12 Horizontal Glazing
(I)
Check alignment of door, panel glass, panel jamb, and
magnetic door stop. Adjust as needed so that door closes
evenly, there is an even reveal of space at top and bottom
of door, and magnetic slide aligns with handle magnet.
Once desired alignment of parts has been achieved,
secure parts together from inside of shower using 8A x 3/8"
pan head self-drilling screws (M).
Attach hinge door stop to panel jamb in five locations
- at top of unit, securing header, jamb and door stop
together; at bottom of unit, securing sill, jamb and
door stop together; and at three points evenly spaced
between top and bottom.
Attach magnetic door stop to panel jamb in five
locations - at top, securing header, magnetic door
stop and panel jamb together; at bottom, securing
sill, magnetic door stop and panel jamb together;
and at three points evenly spaced between top and
bottom.
Attach wall jambs to header at top and sill at bottom.
When drilling or screwing into metal, make certain
that glass is clear from area. Do not hit glass with
drill bit.
D Jamb
D
Jamb and
Magnetic
Door Stop
B
Header
INSIDE OF SHOWER
Check for
even reveal
of space at
top and
bottom of
door glass
Sill
M
8A x 3/8"
Pan Head
Self-Drilling
Screw

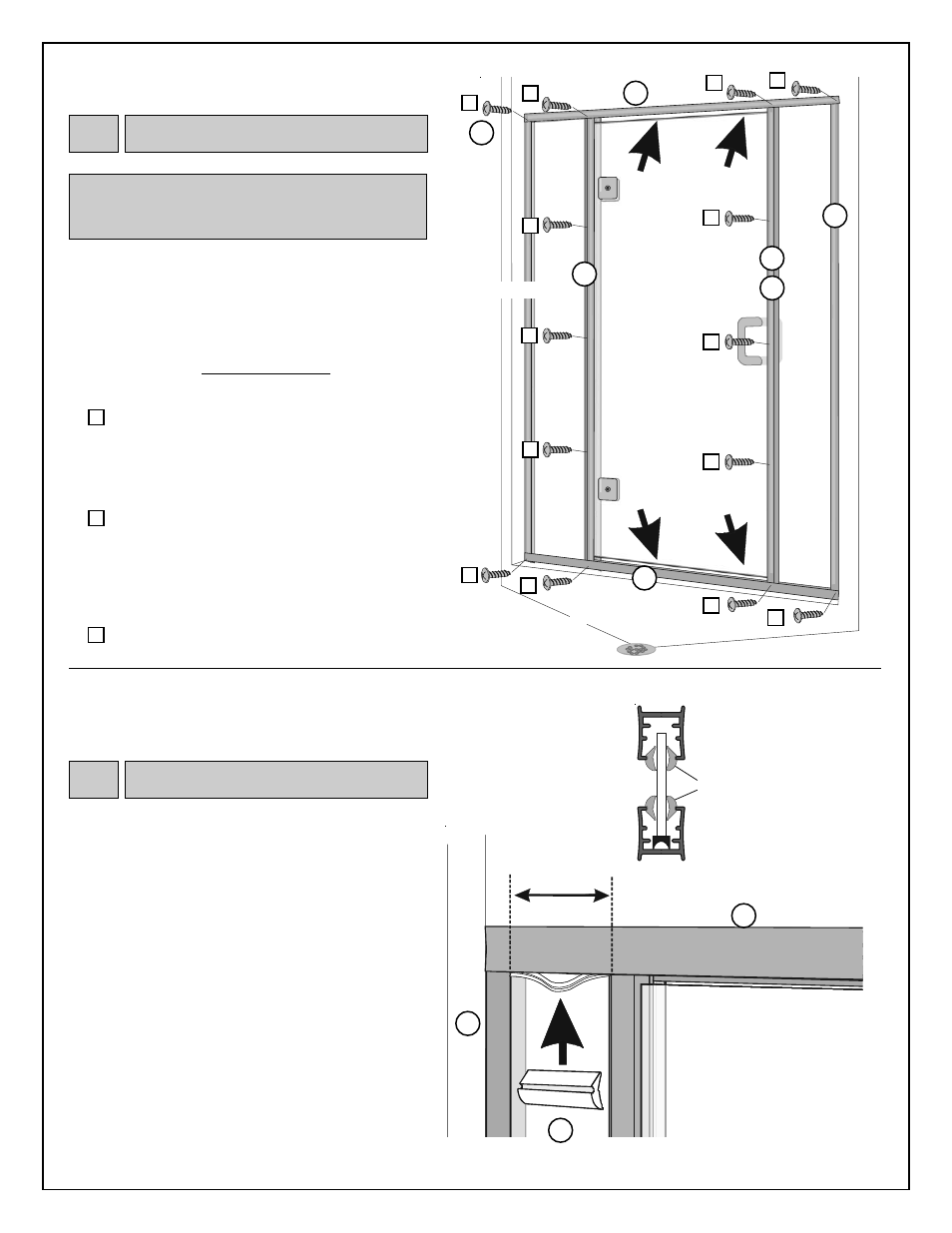

11 Aligning / Securing Verticals
a
b
c
a
b
c
a
b
a
c
Jamb
and
Hinge Door Stop
E
D
A c
c
Header
Horizontal
Glazing
Sill
HORIZONTAL
CROSS SECTION
a
a
b
b
b
