6T0 6/09

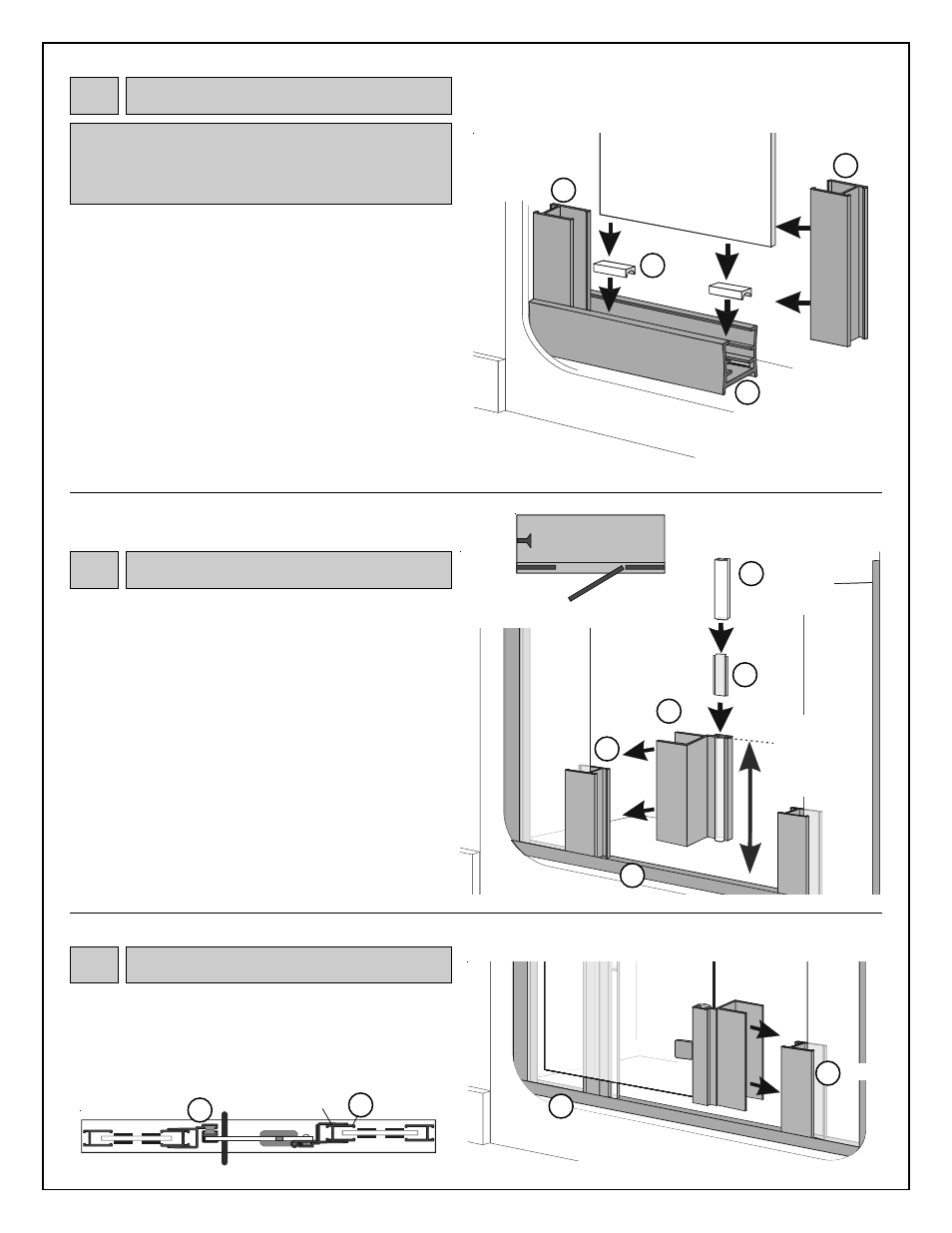

On opposite side of unit, place hinge door stop (with door
attached) over wall jamb with bottom of door stop seated in sill.
For safety purposes, door should be installed to open out from
shower.
Decide which will be the opening side of your door. Door is
normally installed to open on the side of unit nearest to
showerhead.
Vinyl door seal (G), in magnetic door stop (E), must be
removed from channel, trimmed into two pieces and replaced
with metal slide (R) in between vinyl pieces.
Mark center of magnetic door stop. Remove vinyl door seal and
trim to fill open channel of door stop from sill to 2" below center
mark. Reinsert cut vinyl in channel. Follow with metal slide and
remaining piece of vinyl. Trim vinyl flush with door stop at top.
Slide magnetic door stop over jamb, with bottom of door stop
seated in sill and vinyl door seal facing outside of shower.
Door Panel
A
Sill
OUTSIDE OF SHOWER
B Jamb
OUTSIDE OF
SHOWER
8 Hinge Door Stop
Jamb
Magnetic
Door Stop
Vinyl Door
Seal
faces outside
of shower
A
Sill
Metal
Slide R
G
7 Jamb
(D)
/ Magnetic Door Stop
(E)
E
D
Hinge Door
Stop attached
to Door Panel
Magnetic
Door Stop E
Hinge Door Stop B Jamb
Cut vinyl
door seal to
fill area
between sill
and 2" below
center mark
Setting blocks (O) are used in sill to provide a resting surface
for panel glass. Place one setting block in sill at edge of wall
jamb. A second setting block should be placed in sill to support
other corner of panel glass once glass is placed in unit.
Measure panel glass and position remaining setting blocks
accordingly.
Place panel glass in wall jamb with bottom of glass resting on
setting blocks in sill and side of glass seated in wall jamb 3/8".
Place remaining jamb (panel jamb) over panel glass with long
legs of jamb fitting over edge of glass 3/8", and bottom of jamb
seated in sill.
Repeat for opposite side.
The following instructions call for glass to seat in
verticals 3/8". This distance may be adjusted from 1/4"
- 1/2" to accommodate out-of-plumb walls and allow for
a better fit of parts.
6 Setting Blocks
(O)
/ Side Panels
O Setting
Blocks
OUTSIDE OF SHOWER
Panel Glass
A Sill
Jamb
D
OVERHEAD VIEW Showerhead
Normal
opening side
Panel Panel
Jamb D
OVERHEAD VIEW
