NarrowStik Version
The WingMan can be factory configured as a traffic director and operated using a NarrowStik Control Head. Please refer to
the NarrowStik Control Head Manual for installation, wiring connections, and operation of the Control Head.
Wiring
For models with independently flashing Red or Blue Lightheads located on each end, the Blue and Brown wires will be used to
control these heads. The Blue wire is connected to +12V and the Brown to Ground. Refer to the Control Head manual for operation
with the Control Head.
3UP OPTIX AND OR 6UP OPTIX NARROWSTIK VERSIONS
DRIVER
SIDE
PASSENGER
SIDE
BLUE
YELLOW
GREY
GREEN VIOLET
TAN
ORANGE
BROWN
RED WIRE = POWER, +12VDC
RED/WHITE WIRE = POWER, +12VDC
WHITE WIRE = DIMMING MODE

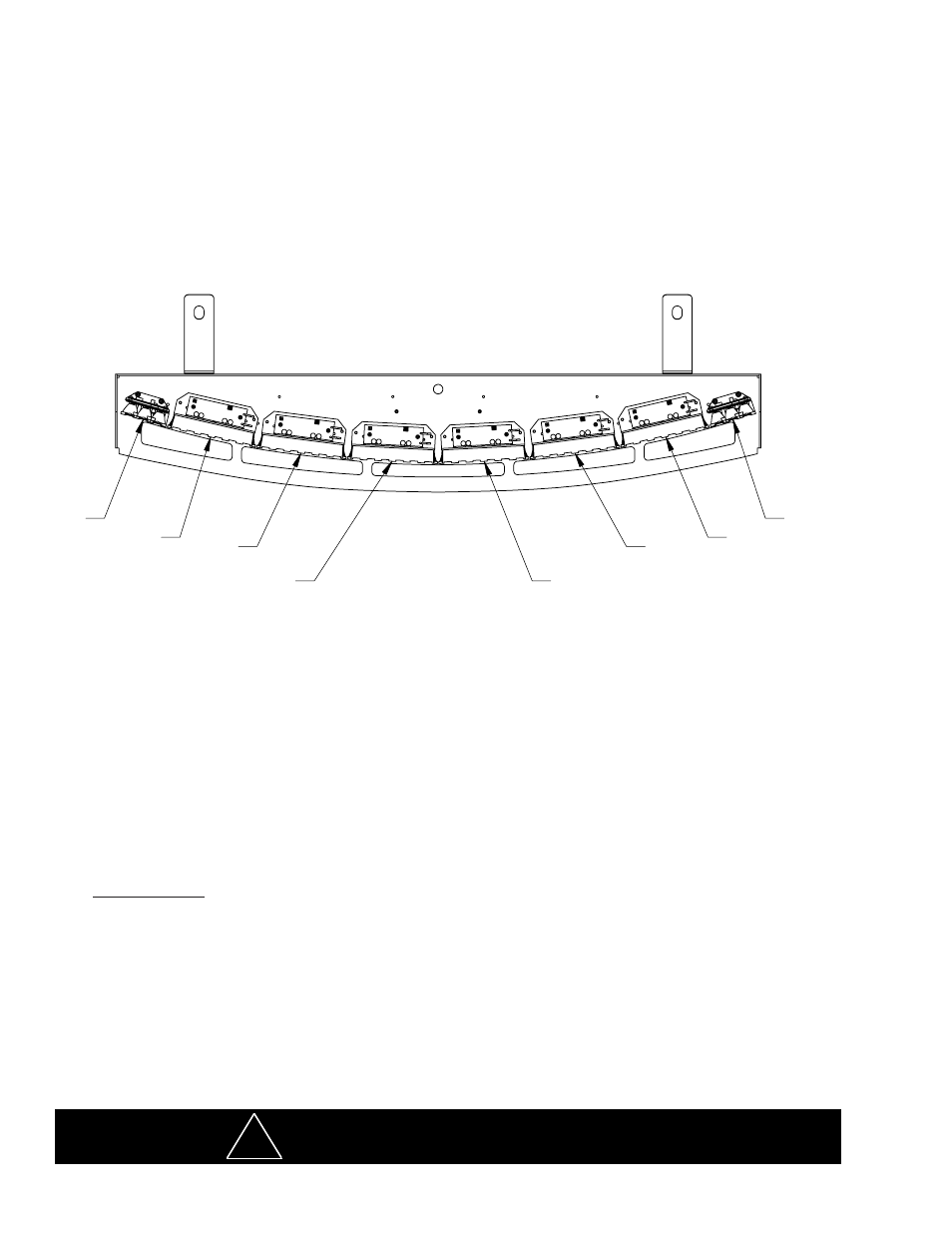

WIRING DIAGRAM
NARROWSTIK WINGMAN
3UP AND 6UP TORUS NARROWSTIK VERSIONS
LED Fusing Considerations
Although the average current draw per module is very low, due to the type of circuit used to power each module, the instantaneous
peak current to a module can be significantly higher during low voltage conditions. To avoid prematurely blowing ATO style fuses
or tripping breakers it is recommended the following rule-of-thumb be used to size fuses or breakers. This is especially important in
lightbars with many LED modules running off a single fused source.
Minimum fuse size calculation: (See Wiring Diagram page 5)
For LED 12 volt electrical current
1.5 X (number of 6LED modules being fused) + .5 X (number of 3LED modules being fused) = Total Electrical Current at 12.8 VDC
LED MODULES
Operating Specifications for directional module:
Operating Voltage: 10-16 VDC, Reverse Polarity Protection
Current Draw : Flashing Module
Red/Amber - .25A avg @ 12.8 Volts
Blue/White - .4A avg @ 12.8 Volts
Steady Burn Module
Red/Amber - .5A avg @ 12.8 Volts
Blue/White - .8A avg @ 12.8 Volts
Available Colors - Red , Blue, Amber, and White
This Product contains high intensity LED devices. To prevent eye
damage, DO NOT stare into light beam at close range.
