Code 3 WingMan with Torus - Manual (Page 6)

6
Installation Instructions per Vehicle (continued)
2006+ Chevy Impala

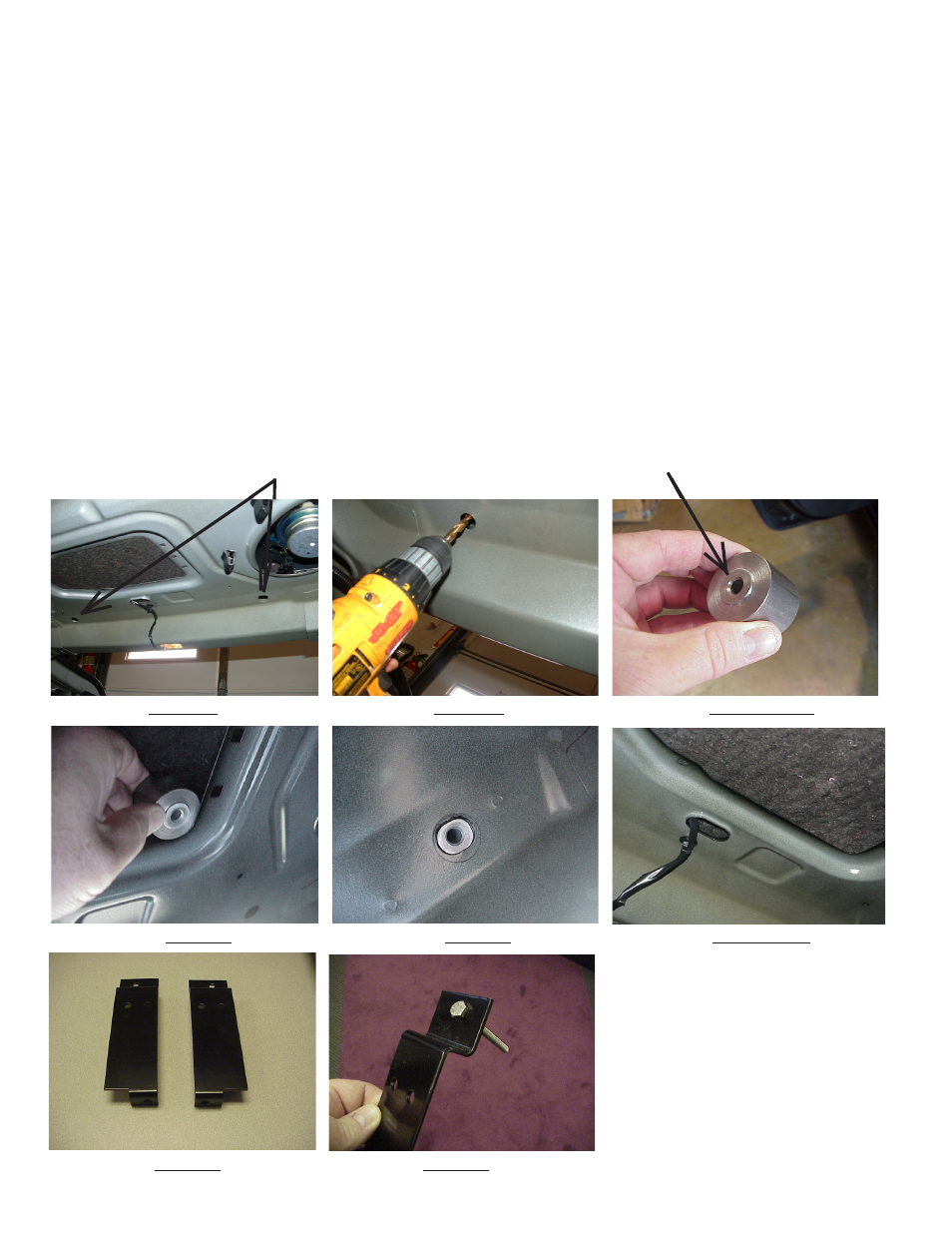

FIGURE 24 FIGURE 25 FIGURE 26
Step 1 From inside the trunk of the Impala, locate the two existing holes in the Impala's rear deck (see Figure 24).
Step 2 Center a 3/8" drill in the existing holes as shown in Figure 25 and drill the two mounting holes through the fabric of the rear deck.
Step 3 Locate the two Mounting Bracket Spacer Bushings from the parts bag (the Mounting Bracket Spacer Bushings are shown in Figure 26).
Push up on the rear deck fabric and starting in the corner of the open area in the center of the rear deck (as shown in Figure 27), push the spacer
into position with the locating shoulder toward the sheet metal and centered in the existing holes in the Impala's rear deck. When the Spacer Bush-
ings are installed correctly they will look as shown in Figure 28.
Step 4 Drill a hole for the cable in the desired location through the rear deck with a 3/8" drill. Inside the oblong hole shown in Figure 29 is a good
location for the cable hole or hole(s). Make sure you don't drill the cable hole too far toward the front of the vehicle. Note: If you are installing a
Double Stack Version of the WingMan with the NarrowStick option you can use a 3/4" diameter drill to create a hole for both cables or
you can drill two 3/8" diameter holes about an inch apart.
Step 5 For Mounting Bracket orientation see Figure 7 showing the WingMan Mounting Brackets. The Passenger Side Mounting Bracket is shown
on the left side of Figure 30 and the Driver's Side Mounting Bracket is shown on the right side of Figure 30 .
Step 6 Insert the 1/4"-20 X 2 1/2" Hex Head Bolts into the square holes in the Mounting Brackets as shown in Figure 31.
___
Two Existing Holes
_
Locating Shoulder
FIGURE 27 FIGURE 28 FIGURE 29
FIGURE 30 FIGURE 31
