Code 3 WingMan with Torus - Manual (Page 10)

10
Torus 3LED PCB
Changing Flash Patterns

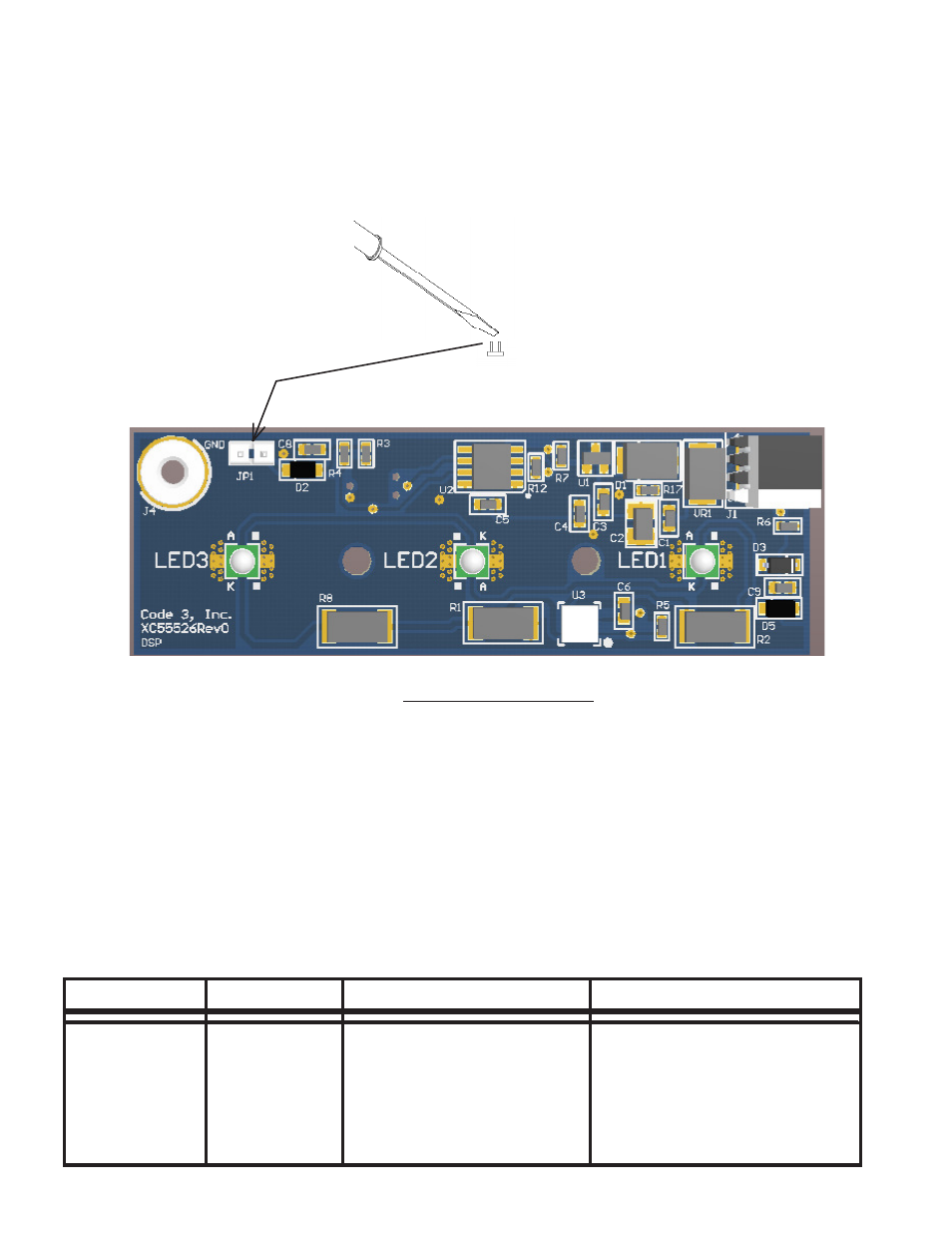

To change the flash patterns on the LED Light Heads, remove the mounting screws that attach the Cover to gain access
to the printed circuit boards inside (see the exploded view on page 11). Momentarily short and release the pattern
change prongs as shown below to change patterns.
Carefully replace the cover and fasten cover mounting screws.
Note: Be extremely careful to replace the wiring such that you don't pinch a wire when you replace
the cover. Test the unit to be sure that it works as intended.
JP1
Flash Pattern Header for
1. Momentarily short and release
to change patterns
2. Hold for 5 seconds to reset the
flash pattern to the first pattern
Directional Module Flash Pattern - Table 2
Cycle Flash-70 - (DEFAULT) Variable
Flash Single
NFPA Quad Flash-80 Cycle Flash-150
Quad Flash-70 Five Flash-150
Steady Burn Quad Flash-150
Five Flash-70 Triple Flash-150
Triple Flash-70 Double Flash-150
Double Flash-70 Single Flash-150
Single Flash-70 Single Flash-250
Quad Pop Flash-70 Single Flash-375
PROBLEM
LED module not
operating when
powered.
POSSIBLE CAUSE
a. Bad power/ground
connection.
b. Defective module.
SOLUTION
a. Fix connection.
b. Replace module
TROUBLESHOOTING GUIDE
Troubleshooting
All WingMan Rear Bars are thoroughly tested prior to shipment. However, should you encounter a problem during installation or during the
life of the product, follow the guide below for information on repair and troubleshooting. Additional information may be obtained from the fac-
tory technical help line at 314-996-2800.
Note: LED modules must be replaced as a module. There are no user serviceable parts.
