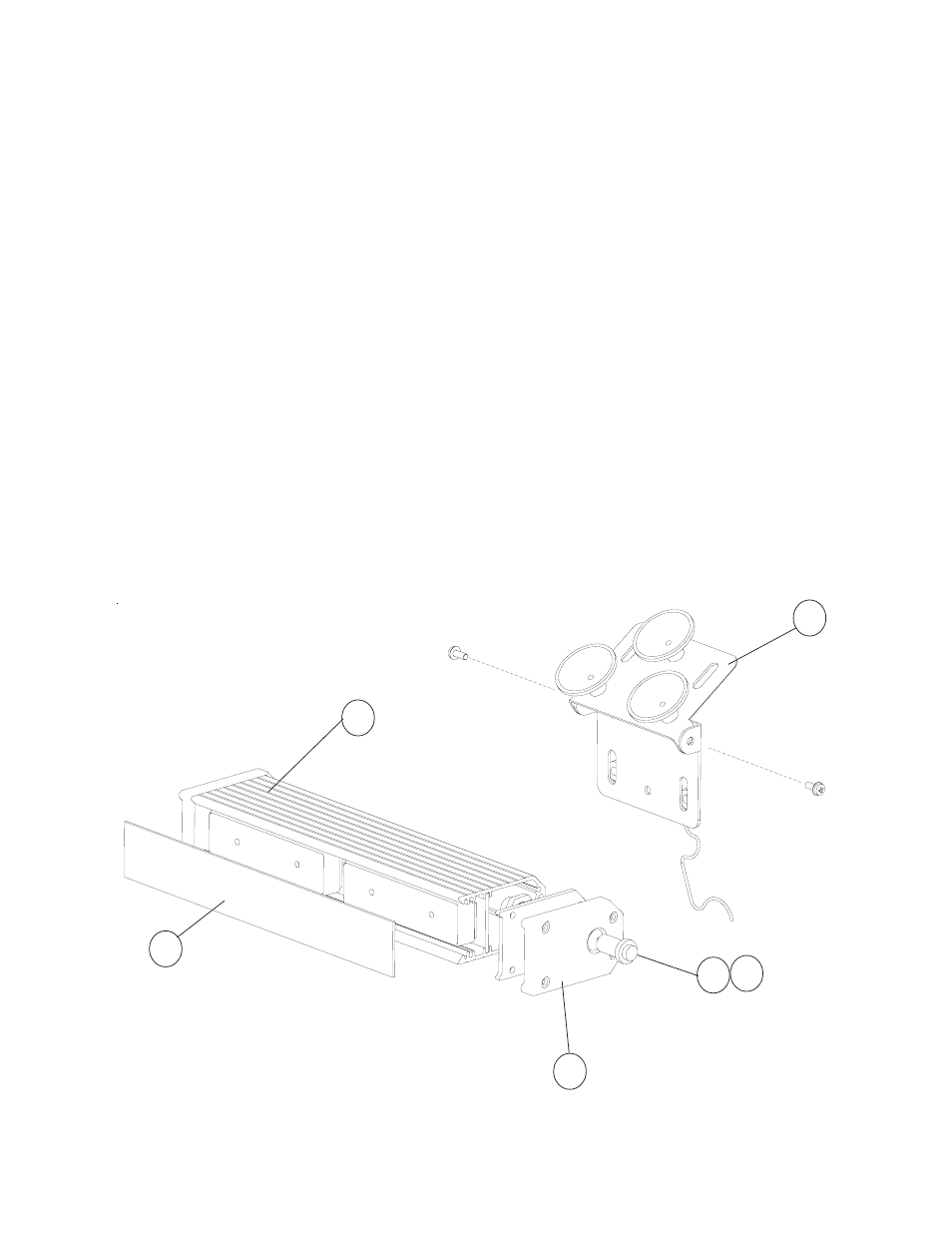

Figure 4 – Code 3 LED X Deck Lights User Manual

Page 9

background image

9

Parts List

Ref No.

Description

Part No.

LX1F-X/

LX2F-XX LX3F-XXX

LX1SB-X

1

Switch

T05742

1

1

-

2

Switch Harness

T05763

1

1

-

3

Clear Lens

T05735

-

1

-

T05734

1

-

-

T89943

-

-

1

4

Extrusion

T05724

-

1

-

T05737

1

-

-

T89942

-

-

1

5

End Cap

T02650

2

2

2

6

RVM Suction Cup Mtg. Kit

S14041

1

1

1

Not shown

Optional RVMMMS Mfg. Kit

RVMMMS

1

1

-

Not shown

#6x1/2" sheetmetal screw

T02797

8

8

8

Not shown

Adhesive Pad

T01665

1

1

1

Not shown

Hole plug

T00337

1

1

1

Not shown

Optional RDMRVM Mtg. Kit

RDMRVM

1

1

1

Not shown

Cig. Lighter Cable Ass'y

T03042

1

1

1

3

1

5

2

6

4

Figure 4
