Code 3 LED X Deck Lights User Manual
Page 4

4
The RDMLED Rear Deck Mounting option allows the LED unit to be mounted to the rear deck of your vehicle.
The following instructions must be followed to insure that the unit is mounted correctly:
Attach the mounting hardware to the unit as shown in Fig. 2. Place the unit against the rear deck and make
adjustments with the hardware until the product is located in an area that does not obstruct the view or inflict
injury to either driver or passenger. Tighten loose hardware and mark the position of each mounting foot.
Remove bracket assemblies from the unit. Using the marked positions, mount the brackets on the rear deck
with user supplied sheet metal screws or through-bolts. Mount the unit to the brackets using the included nuts
and carriage bolts. Adjust the unit to provide the most effective signal.
Caution: The unit must be mounted through the steel of the vehicle. Avoid mounting to plastic or
other non-structural members.
Optional RDMRVM
Rear Deck Mtg. Bkt.
Optional RVMMMS
Mirror Mount System

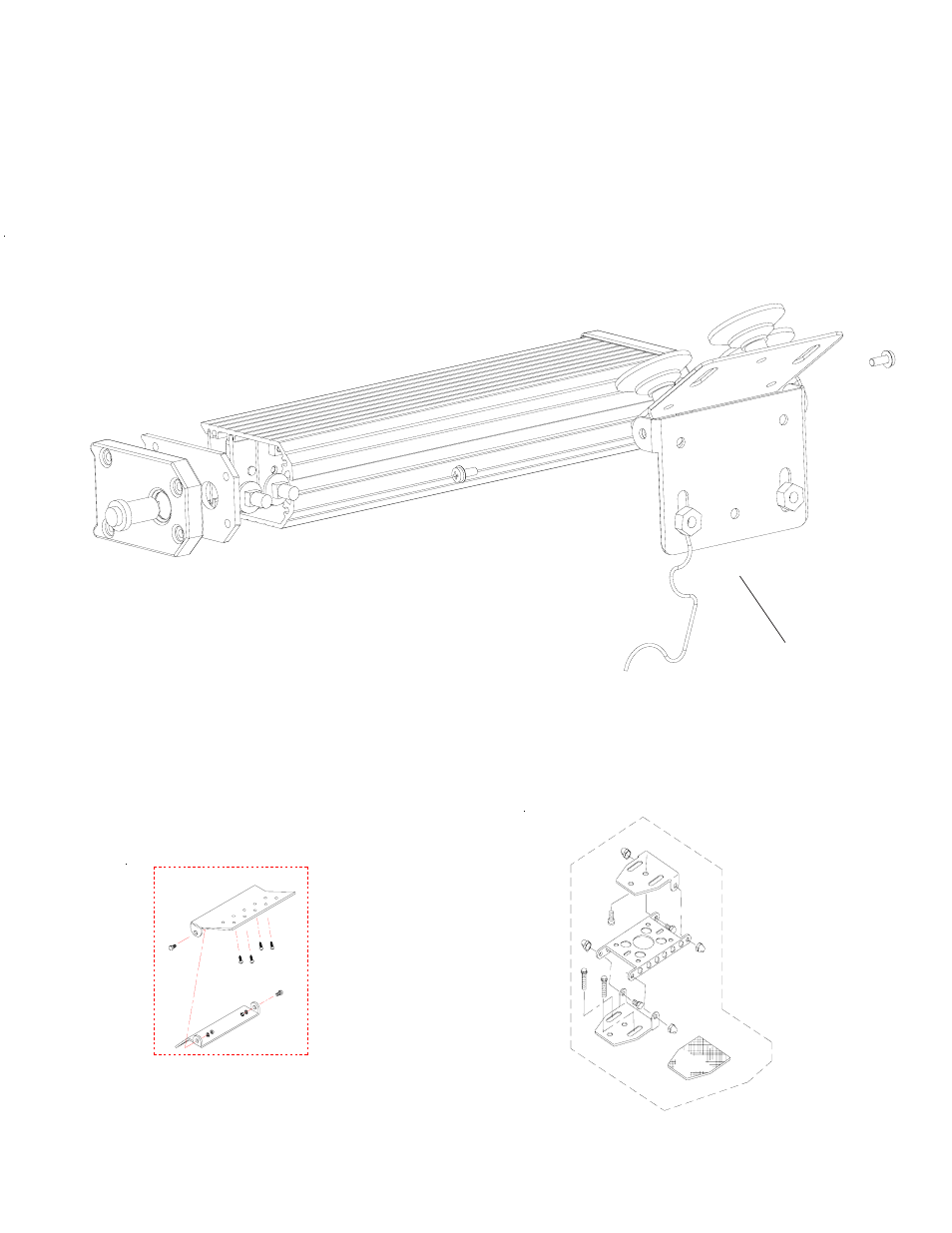

FIGURE 2
MOUNTING
S14041
Std. suction cup
Mounting kit
