Code 3 Excalibur - Manual (Page 14)

14

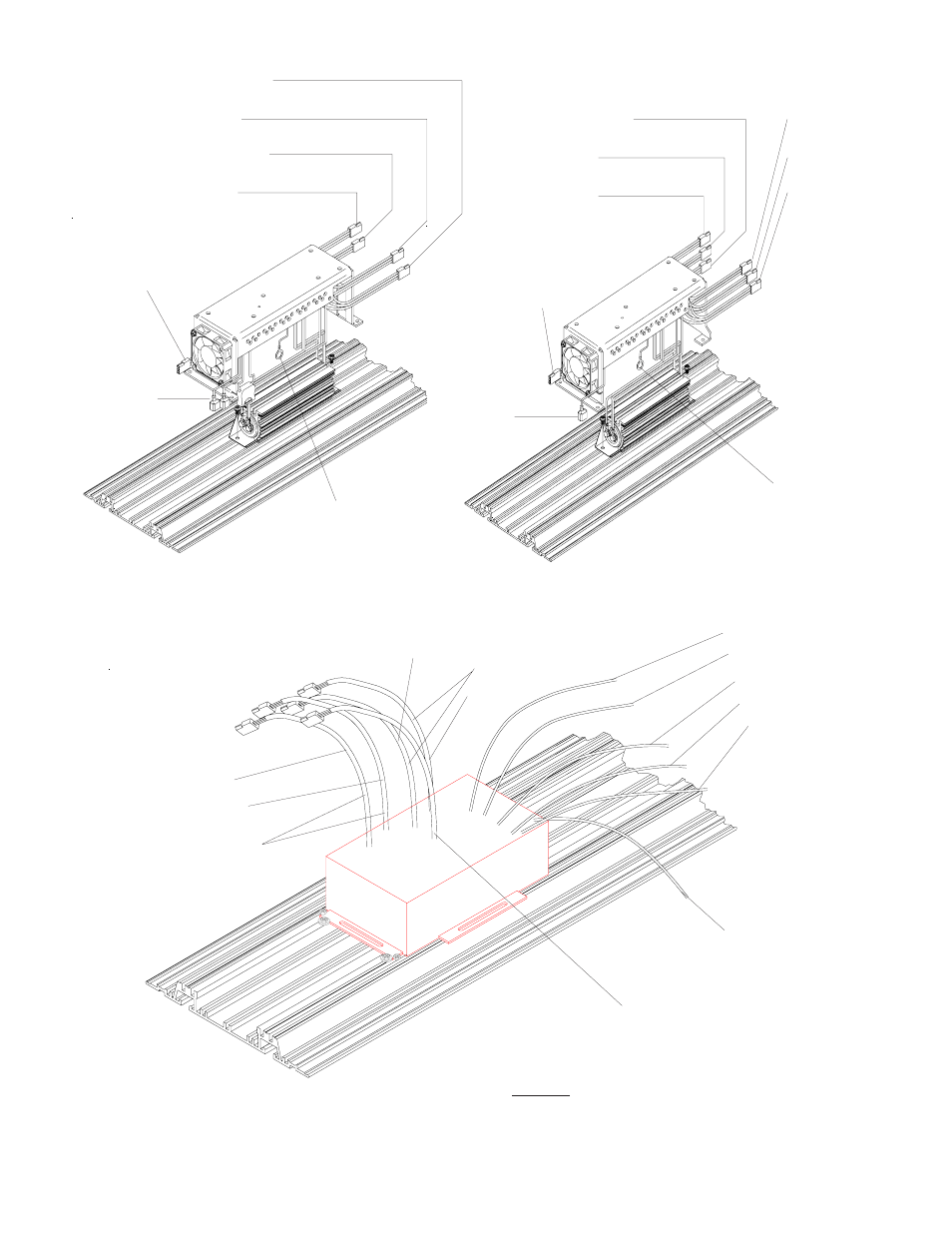

FIGURE 9
4-Head Power Supply
6-Head Power Supply
+12VDC
(Red)
+12VDC
(Red)
Ground Wire
(Blk)
Ground Wire
(Blk)
Control Wire Harness
(Yel/Blk,Brn/Blk)
Control Wire Harness
(Yel/Blk,Brn/Blk)
Passenger's Side Front
(Org,Blk,Blk/Wht)
Driver's Side Front
(Brn,Blk,Blk/Wht)
Passenger's Side Rear
(Grn,Blk,Blk/Wht)
Driver's Side Rear
(Yel,Blk,Blk/Wht)
Rear Aux. Output
(Red,Blk,Blk/Wht)
Rear Output
(Grn,Blk,Blk/Wht)
Rear Output
(Yel,Blk,Blk/Wht) Front Output
(Brn,Blk,Blk/Wht)
Front Output
(Org,Blk,Blk/Wht)
Front Aux. Output
(Wht,Blk,Blk/Wht)
1
2
3
4
5 N/C
REAR
+12v(RED)
GND(BLK)
N/C(GREY)
FRONT(GRN)
REAR(BLUE)
RANDOM
FLASH
(YEL)
PSE 490E
FIGURE 9A
FRONT
