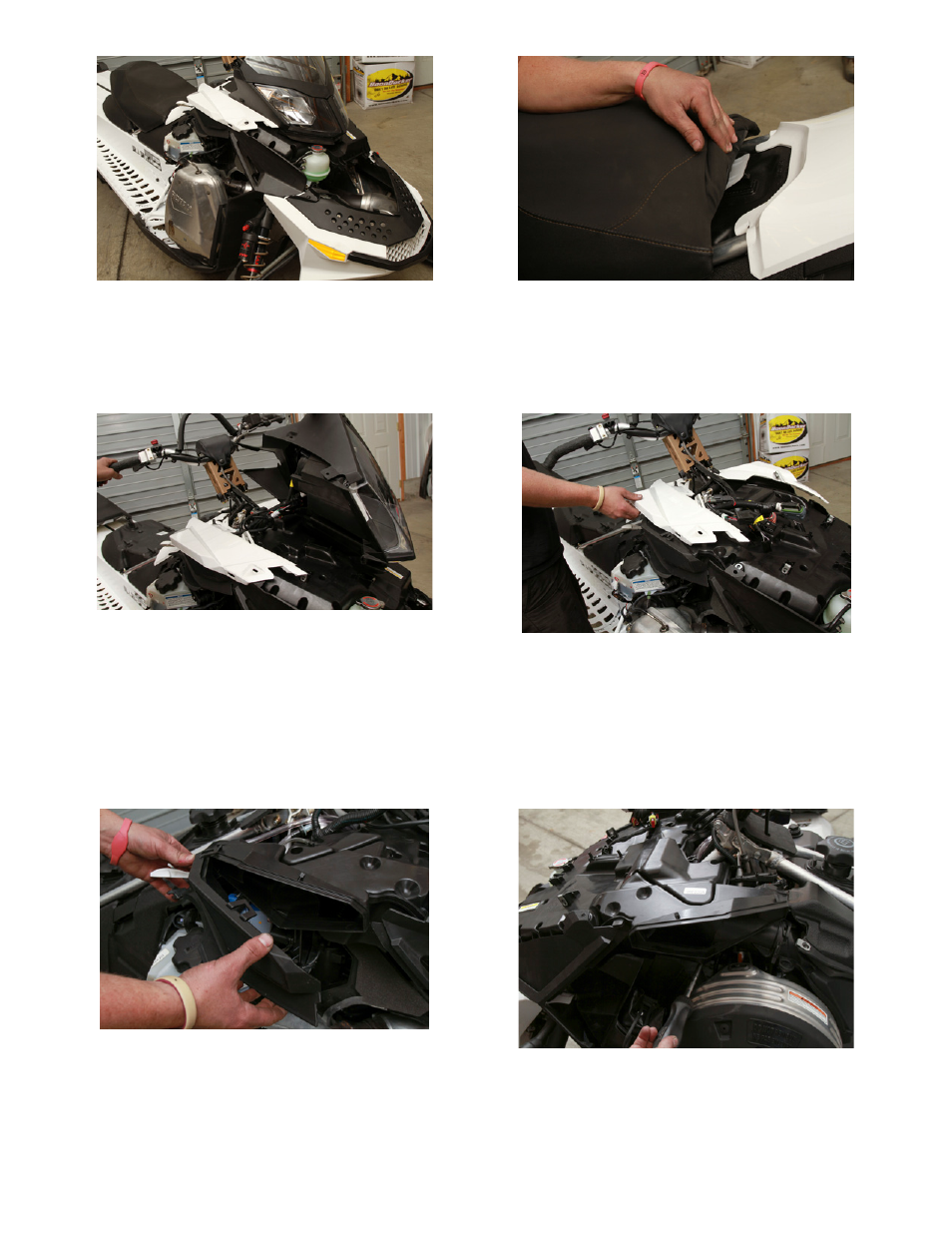

1. Remove both side panels and hood.
BoonDocker tollfree: 877-522-7805 local: 208-542-4411 fax: 208-524-7381 www.boondockers.com 2
2. Remove the seat by lifting up on the white plastic le-
ver under the front and pulling the seat rearward.
3. Remove the torx bolts holding on the headlight /
gauge cluster. Disconnect the wiring harnesses hooked
to the headlights and gauge. Remove headlight and
gauge cluster.
4. Remove the torx bolts holding the tank cowl to the air
box plenum, remove the gas cap nut, remove gas cap
and remove tank cowl.
5. Remove air intake screens from each side of the air
box plenum. Be careful to not damage the clips when
removing.
6. Remove the hose clamp holding the air box plenum
to the intake flute.
