3 mounting the display to the scale base, Mounting the display to the scale base – Salter Brecknell 6700U Series (USB) User Manual
Page 14
14
67XXU USB/Serial Scale Service Manual
10.
Turn the scale upright.

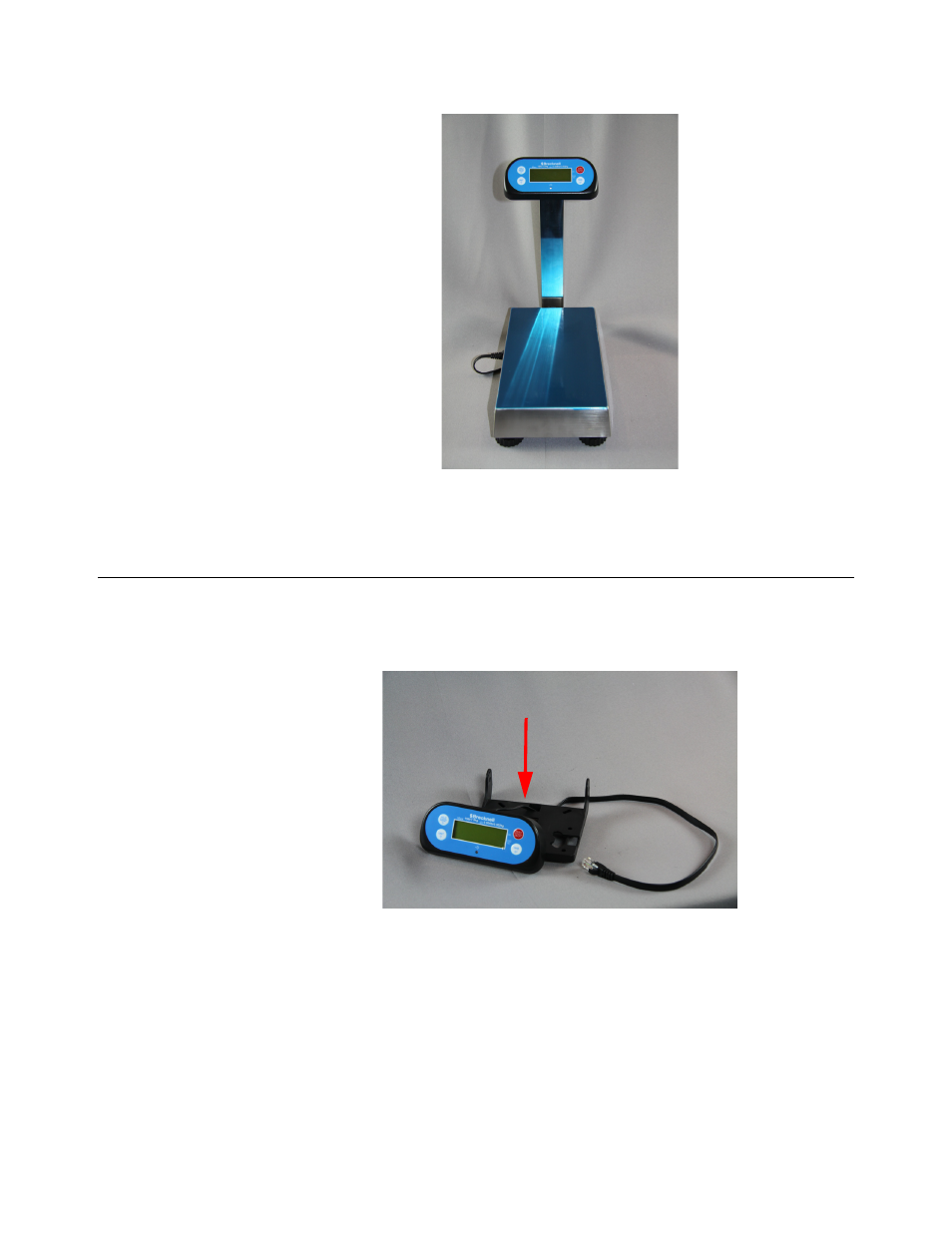

Figure 2.13 Column and Remote Display Installed
2.3 Mounting the Display to the Scale Base
The bracket mounts the remote display to the scale base.
1.
Pull the remote display cable through the rectangle cut out in the display
bracket.
Figure 2.14 Display Cable Routing
