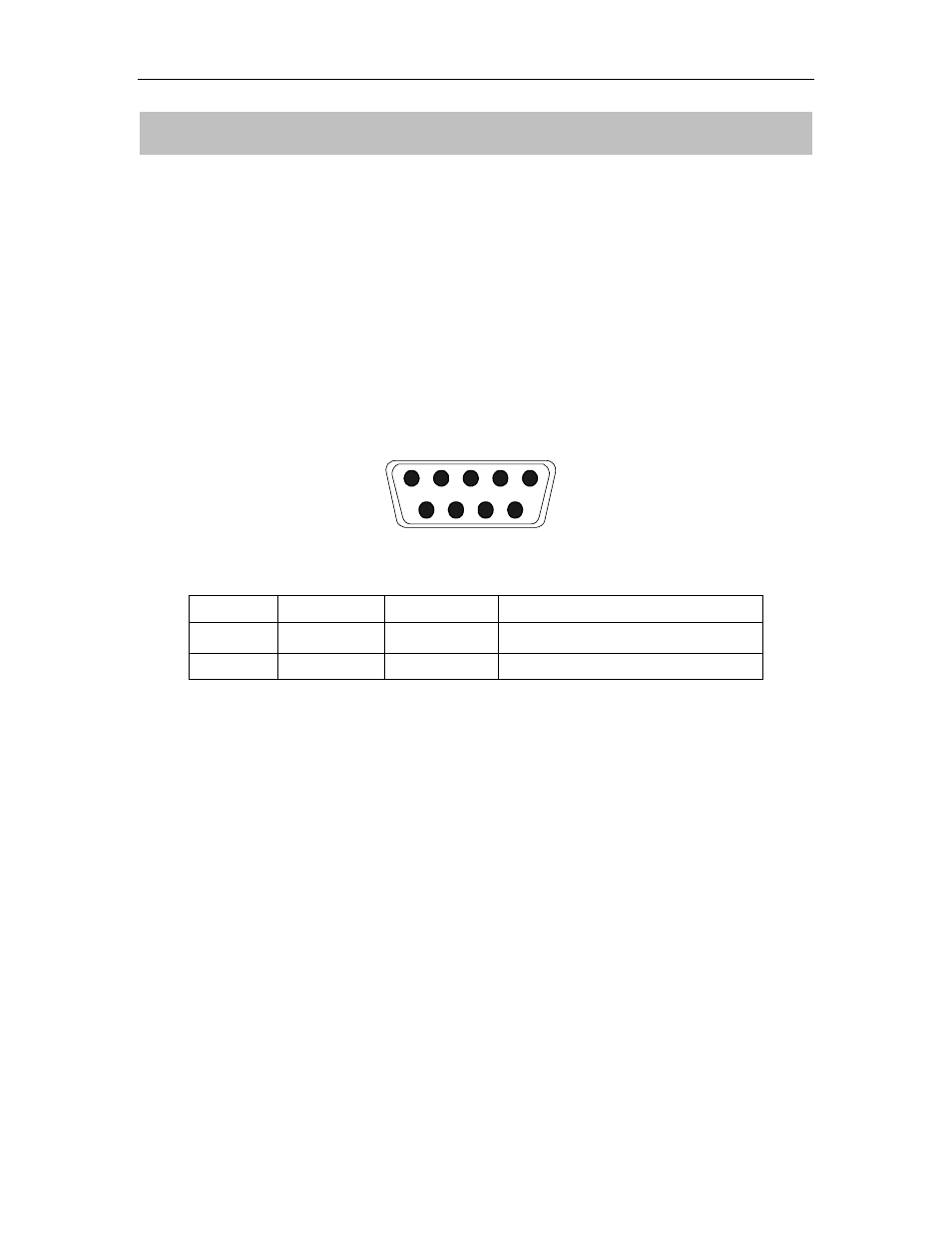

10. RS-232 OUTPUT
The CS-250 Series of scales can be ordered with an optional RS-232 output.
Specifications:
RS-232 output of weighing data
ASCII code
600~9600 Baud
No Parity
RS-232 (9pin D type connector)
Pin ２
RXD
Input
Receiving data
Pin ３
TXD
Output
Transmission data
Pin ５
GND
―
Signal ground
9pin D Connecter:
Scale Computer/Printer
Pin 2: Pin 3
Pin 3: Pin 2
Pin 5: Pin 5
Note: If data is not getting in PC/Printer, want to inter-change one of the Pin 2
and Pin3 connections
１ ２ ３ ４ ５
６ ７ ８ ９
