CHAPTER 7: OPERATION
7.1 DISPLAY
The Model 400ES indicator utilizes a 6-digit LED (Light Emitting Diode) display. Table 7-1
summarizes the display annunciators.
7.1.1 LIGHT EMITTING DIODE (LED) DISPLAY
Figure 7-1 shows the display detail of the 400ES LED display.
  


III
LO
TARE
lb
MOTION
kg
GROSS
NET
ZERO
DISP T
T

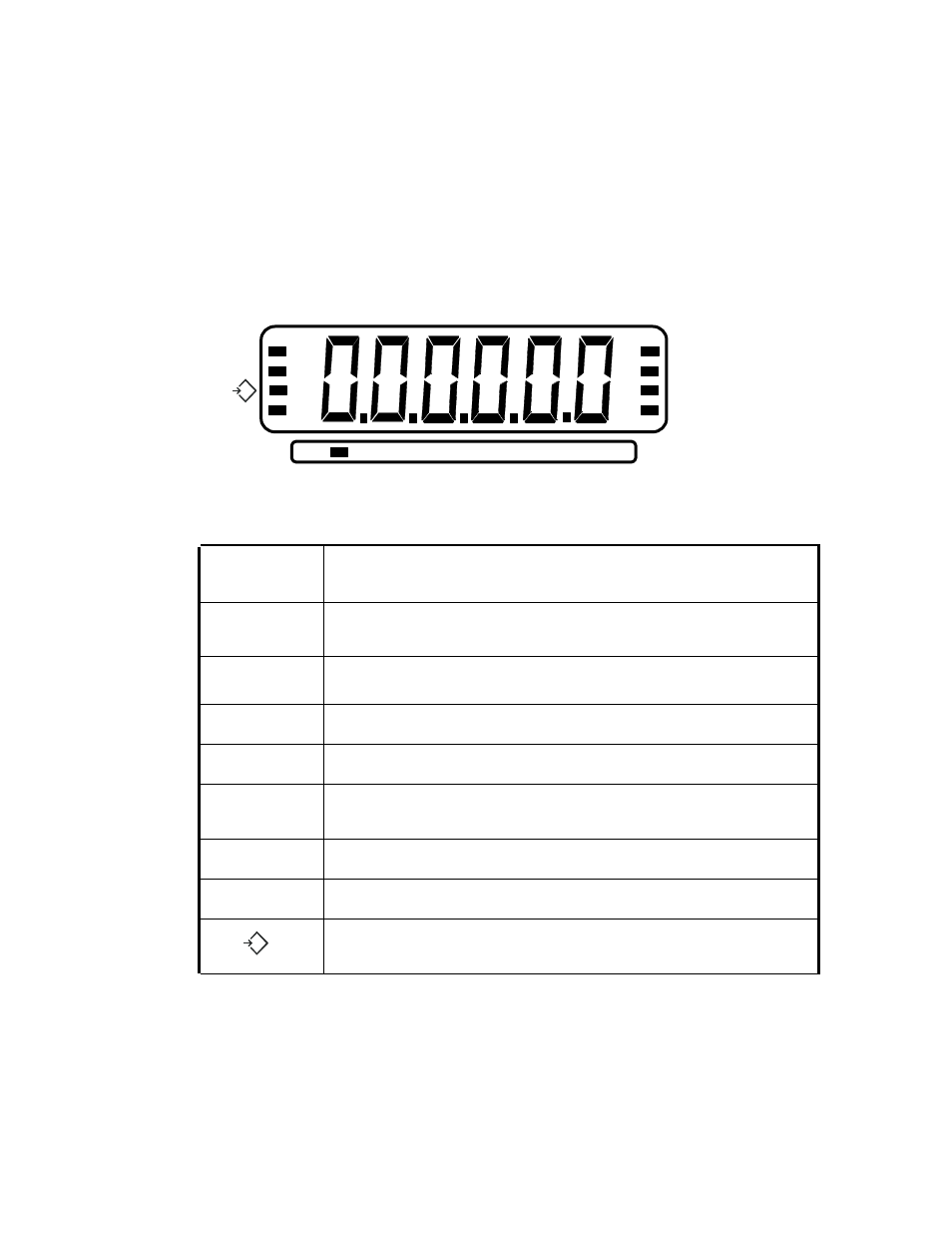

FIGURE 7-1: 400ES LED Display Detail
LED
Annunciator
MEANING
ZERO Better known as the “Center of Zero” annunciator, this light is active
whenever the displayed weight is within ± 0.25 divisions of true zero.
NET
Denotes that the indicator is displaying net weight.
GROSS Denotes that the indicator is displaying gross weight.
TARE Indicates that a tare weight has been established in the system.
lb and kg Indicates the unit of the displayed weight. No unit means that the indicator is
displaying weight in the custom unit.
MOTION This light is on whenever the scale is in motion.
DISP T Denotes that the indicator is currently displaying the current tare weight.
T
Indicates that a tare weight has been established in the system via the
keyboard.
TABLE 7-1: 400ES Annunciator Definitions
