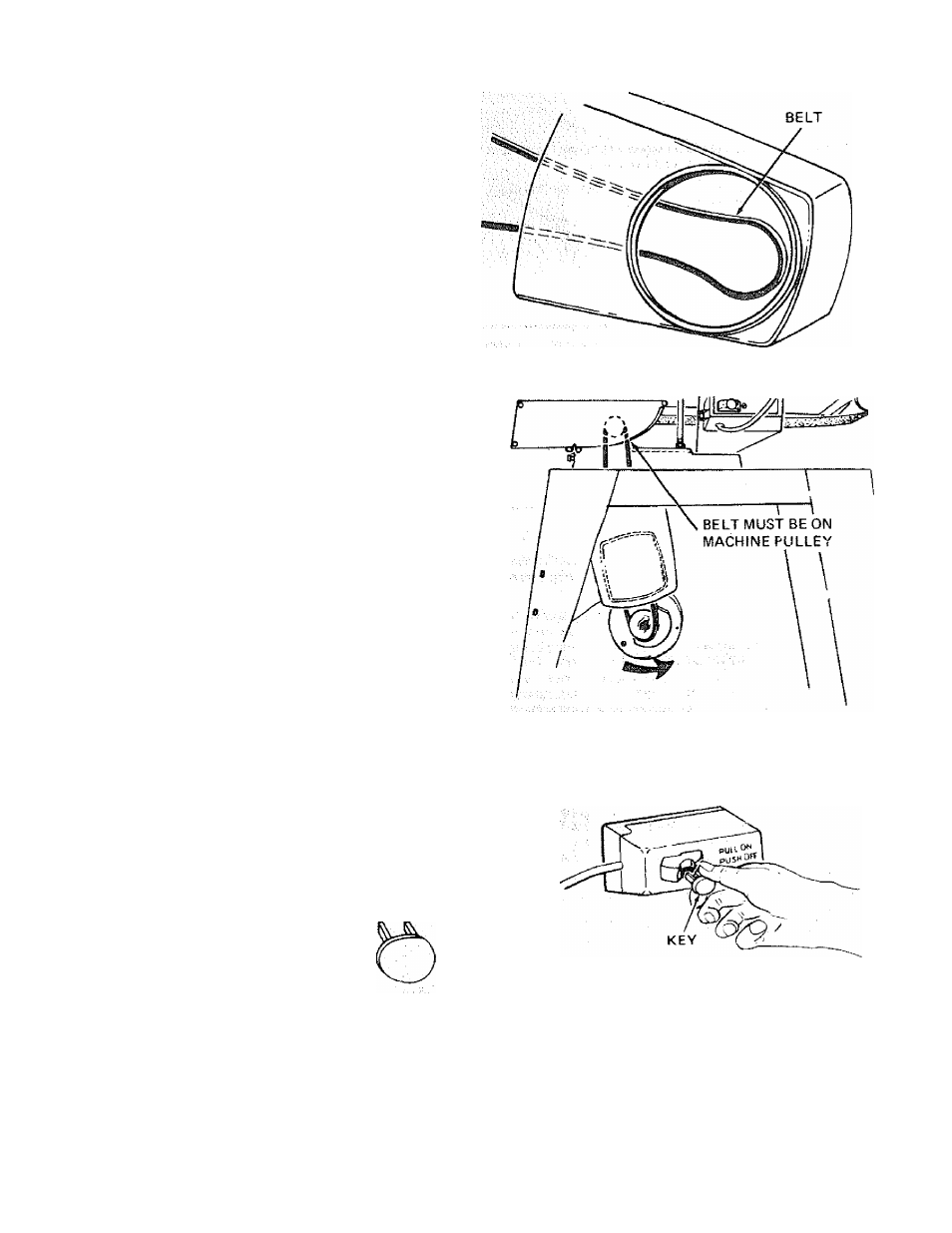

5' Riacebèltovër machiné puile^^^
bell into
thé open, end of the guard anci oiit the round openi ng.
MAKE SURE BELtHÀS NOT SLIPPED OFF OF
MACHINE PULLEY FROM STEP 3> DISC AND
DUST TRAP INStALLAtlON.
6 Place the belt onto the motor pulley by rotating the
pulley.
7. Move the motor sideways so that the belt is in the
center of the opening in the top of the base. Visually
tine up the pulleys and V-belt.
8. PUSH dovvrivya rd on motor to apply tensi o n to belt a nd;
tighten motor bolt huts.
^
9. Check guard support before tightening guard support
screws.
Guardsupportmustbecenteredaroundmotor
shaft. Tighten screws.
10. Push guard into position on guard support.
ON-OFF SWITCH
WARNIIMG: DON'T CONNECT POWER CORD TO
SURE MOTOR ROTAtlON IS CORRECT. SEE PAGE 5,
The On-Off Switch has a locking feature. THIS FEATURE IS
INTENDED TO PREVENT UNAUTHORIZED AND POSSIBLE
HAZARDOUS USE BY CHILDREN AND OTHERS.
1, Insert key into switch.
NOTE:
Key is made of yellow plastic
