VCR Setup

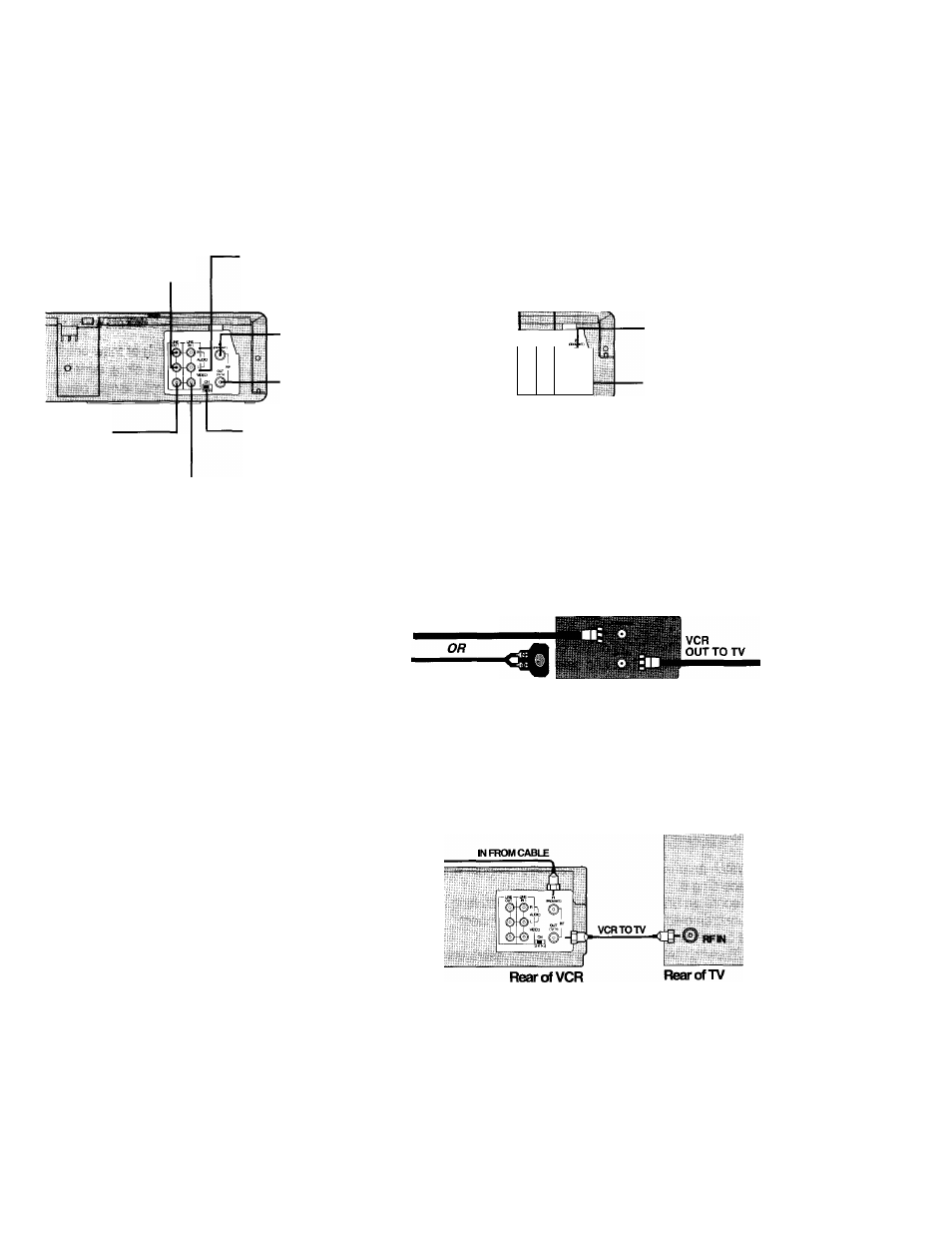

Rear Panel
Use the jacks on the rear panel to connect the VCR to other components and signals, including: VCRs, TVs,
stereo equipment, digital video components, antenna and cabie signais.
VR8160
VR5160
AUDIO OUT (L7R)
Used to output audio signals to
connected equipment.
AUDIO IN (L7R)
Used to input audio signals from
connected equipment.
IN FROM ANT
Used to input cable or
antenna signals.
OUT TO TV
Used to output VCR
signals to a TV.
VIDEO OUT
Used to output video signals
from VCR to connected
equipment.
VIDEO IN
Used to input video signals
from connecfed equipment.
CH 3/4
Set to channel 3 or 4 to match
the channel selected at the TV.
AUDIO OUT
Used to output audio
signals to connected
equipment.
pAL DIO-
è
11
a©L
.AUDIO IN
Used to input audio signals
from connected equipment.
IN FROM ANT
Used to input cable or
antenna signals.
Connections
OUT TO TV
Used to output VCR
signals to a TV.
VIDEO OUT ---------------
Used to output video
signals from VCR to
connected equipment.
CH 3/4
Set to channel 3 or 4 to match the
channel selected at the TV.
VIDEO IN
Used to input video signals from
connected equipment.
tii!;'!;;: '... i . ' h
-'li.T.:
Antenna Connection
If your outside antenna cable is a 300 ohm flat feeder, use
an adapter to connect the antenna to the VCR input termi
nal. You can purchase an adapter at an electronics store.
If your antenna already has a round lead, simply connect it
to the terminal on the rear panel of the VCR.
Once your antenna is connected to the VCR, connect a
cable from the VCR to your TV from the “Out to TV”
terminal on the rear panel of the VCR.
Cable Connections
Basic Cable TV Connection
This set-up will enable you to:
- Record an unscrambled channel.
- Watch an unscrambled channel while recording it.
- Record an unscrambled channel while watching
another (only when you connect a cable-compatible TV).
You will need to:
• Select TV channel 3 or 4 to receive video signals.
• To record a channel while watching another, press
TVA/CR on the remote control to turn off the “VCR”
indicator in the VCR display and select a desired
channel on the TV.
75-ohm
round
antenna lead
Cable/Antenna
IN TO VCR
300-ohm flat
antenna lead with adapter
