UNPACKING AND CHECKING CONTENTS
TOOLS NEEDED
Medium Screwdriver
Small Screwdriver
Combination Square
Wrenches
3/8 in. 7/16 in.
1/2 in. 9/16 in.
3/4 in.
Model 113.24181 Motorized Table Saw is shipped complete
in one carton including Two Table Extensions and Steel
Legs.
Separate all parts from packing materials and check each
one with the illustration and the list of Loose Parts to make
certain ail items are accounted for, before discarding any
packing material.
If any parts are missing, do not attemp to assemble the
table saw, plug in the power cord or turn the switch on
until the missing parts are obtained and are installed
correctly.
Remove the protective oil that is applied to the table top
and edges of the table. Use any ordinary household type
grease and spot remover.
CAUTION; Never use gasoline, naptha or similar highly
volatile solvents.
Apply a coat of automobile wax to the table.
Wipe all parts thoroughly with a clean, dry cloth.
W A R N I N G : F O R Y O U R OWN SAFETY. NEVER
CONNECT PLUG TO POWER SOURCE OUTLET UNTIL
ALL ASSEMBLY STEPS ARE COMPLETE, AND YOU
HAVE READ AND UNDERSTAND THE SAFETY AND
OPERATIONAL INSTRUCTIONS.

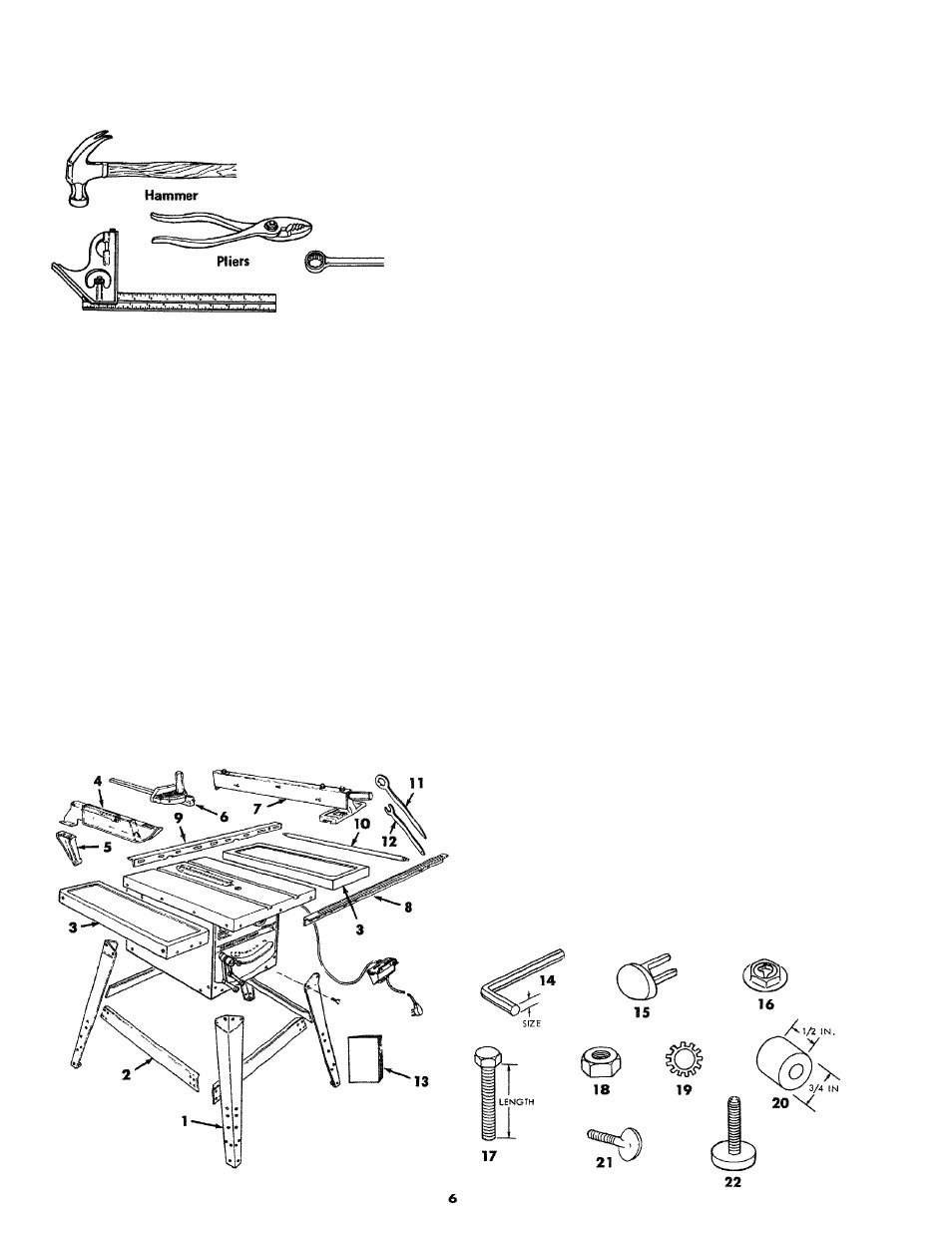

LIST OF LOOSE PARTS
Key
No. Part Name Qty.
1 Leg......................................................................................................... 4
2 Stiffener................................................................................................. 4
3 Table Extension .................................................................................... 2
4 Blade Guard and Spreader .................................................................. 1
5 Spreader Support................................................................................ 1
6 Miter Gauge ........................................................................................... 1
7 Rip Fence .............................................................................................. 1
8 Fence Guide Bar with Rip Scale (Front) ............................................. 1
9 Fence Guide Bar (Rear) ....................................................................... 1
10 Guide Bar Rod ....................................................................................... 1
11 Arbor Nut Wrench ................................................................................. 1
12 Arbor Wrench ........................................................................................ 1
13 Owners Manual ..................................................................................... 1
Pkg. of Miscellaneous Small Parts No. 62596
Consisting of the Following:
14 Setscrew Wrench, 3/32 in.................................................. 1
14 Setscrew Wrench, 1/8 in.............................................................. 1
14 Setscrew Wrench, 5/32 in.................................................. 1
14 Setscrew Wrench, 3/16 in.................................................. 1
15 Switch Key .................................................................................... 2
16 Self-Threading Nut....................................................................... 2
17 Hex Head Screw, 5/16 in.—18 X 1 - 1/2 in. long .. 2
17 Hex Head Screw, 5/16 in.—18 X 7/8 in. long ... 2
17 Hex Head Screw, 5/16 in.—18 x 5/8 in. long ... 16
17 Hex Head Screw, 1/4 in.—20 x 1/2 in. long . . . . 16
17 Hex Head Screw, 5/16 in.—18 X 1-1/4 in. long .. 8
17 Hex Head Screw, 1/4 in.—20 x 5/8 in. long . . . . 2
18 Hex Nut, 5/16 in.—18
(approx, dia. of hole 5/16 in.)................................................. 28
18 Hex Nut, 1/4 in.-20
(approx, dia. of hole 1/4 in.)................................................... 18
18 Hex Nut, 1/2 in.-13
(approx, dia. of hole 1/2 in.).................................................. 8
19 Lockwasher, 5/16 in. External Type
(approx, dia. of hole 5/16 in.) ................................................ 28
19 Lockwasher, 1/4 in. External Type
(approx, dia. of hole 1/4 in.)................................................... 18
20 Guide Bar Spacer ........................................................................ 2
21 Thumbscrew, 5/16 in.—18x 1 in. long....................................... 1
22 Leveling Foot................................................................................ 4
