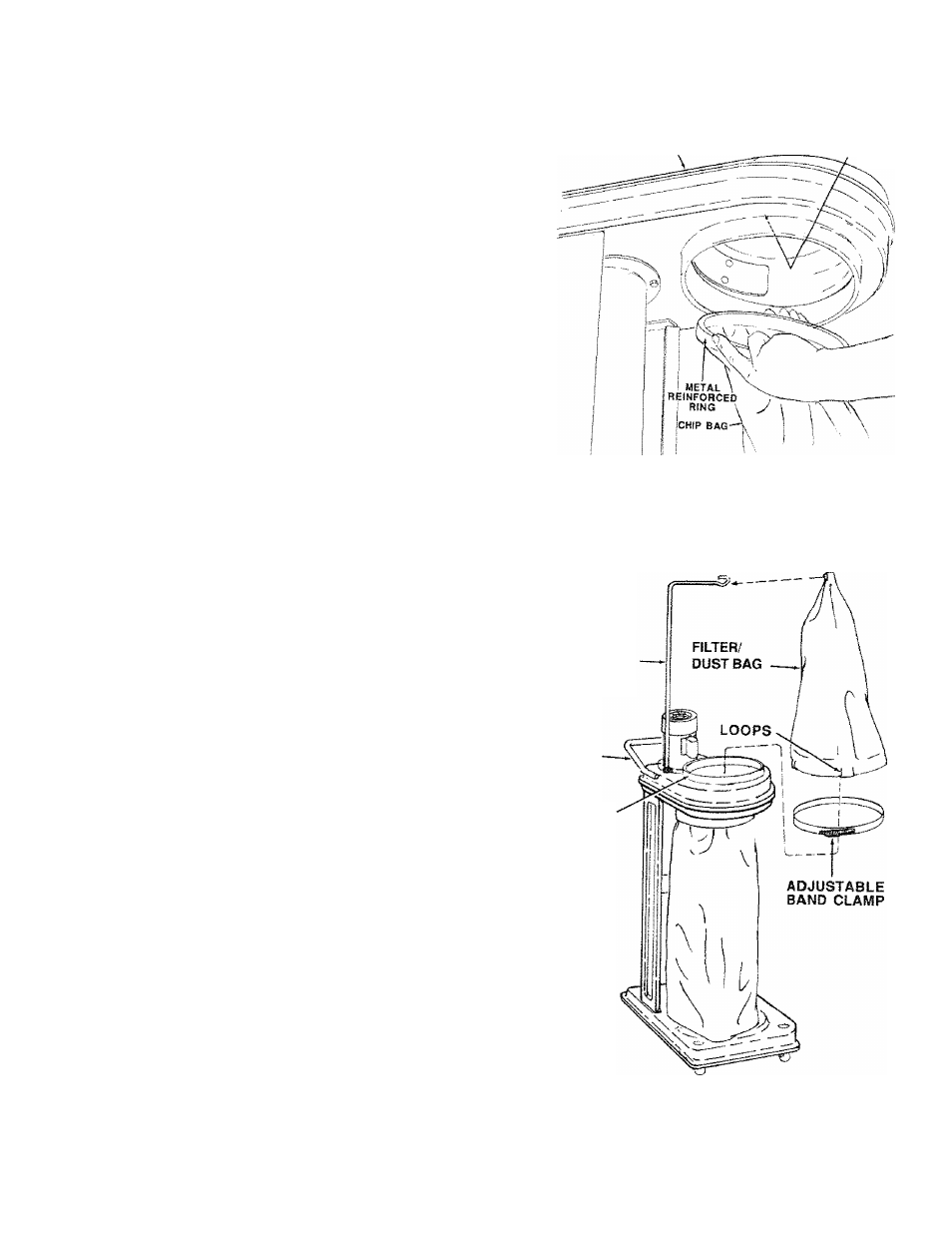

CHIP BAG ASSEMBLY -

LOWER FiLTRATION HOUSING

1. Insert lower

Chip Bag

by tilting the

Metal Reinforced

Band at

an angle and position it through the hole in the

lower

Filtration Housing.

2. Tuck one side of the

Band

under the

Sawdust

Chute Extension.

Allow the opposite side to rest on the ridge of the

opening.

4. Tug on the

Chip Bag

to insure proper seating.

FILTBATION HOUSING

SAWOUST CHUTE

extension

UPPER FILTER/DUST BAG ASSEMBLY

1. Disconnect the

Adjustable

ßandC/ampandinsertthe

end through the loops provided at the opening of the

Fllter/Dust

Sag.

2. Invert the

Filter/Dust Bag and

slip the open end of the

Bag

over the 1" Relief on the top opening of the

Filtration Housing.

3. Secure the

by adjusting the rectangular barto the

fourth set of hooks.

4. Pull the lever tight until it seats itself.

CAUTION: Make sure the opening of the bag Is

tight against the relief so dust will not escape.

FILTER/
DUST BAG
HOLDER

HANDLE

R ELIEF
