10 in. TABLE SAW
MODEL NO. 137.248850

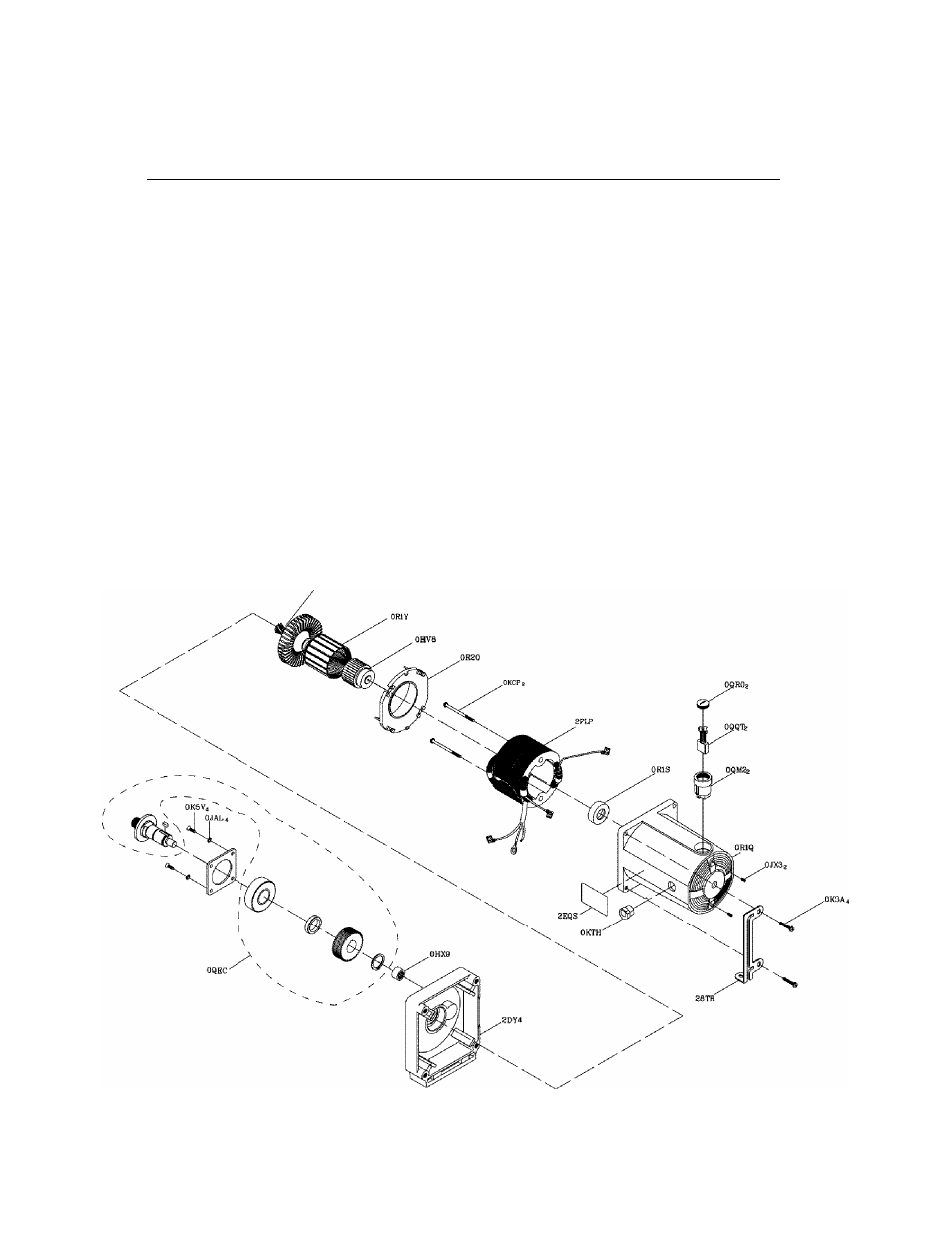

PARTS LIST AND SCHEMATIC FOR MOTOR
l.D.
Descirption
Size
QTY
0HV8
BALL BEARING
6201ZLU
1
OHVU
BALL BEARING
6200ZZ
1
0HX9
NEEDLE BEARING
HK-1010
1
OJAL
EXT.TOOTH LOCK WASHER
cp4
4
0JX3
HEX, SOC. SET SCREW
M5*0.8-8
2
0K3A
CR.RE. PAN HD. SCREW & WASHER
M5*0.8-30
4
0K5V
CR.-RE, COUND.HD.SCREW
M4*0.7-8
4
OKCP
CR.RE. PAN HEAD TAPPING & WASHER SCREW
M5N2-Ó0
2
OKTH
STRAIN RELIEF
1
OQEC
ARBOR SHAFT ASS’Y
1
0QM2
BRUSH HOLDER ASS’Y
2
OQQT
BRUSH ASS’Y
2
OQRO
BRUSH COVER
2
ORIQ
MOTOR HOUSING
1
ORIS
BEARING BUSHING
1
ORIY
ARMATURE ASS'Y
1
0R20
BAFFLE
1
28TR
RETAINING CLIP
1
2DY4
BRACKET
1
2EQS
MOTOR NAMEPLATE
1
2FLP
FIELD ASS'Y
OHVU
1
