Connections
Before using this monitor, check that the following items
are included in your package;
• Monitor (1)
• Video signal cable (1)
• Power cord (1)
• Macintosh’* adapter (1)
• HD15 (Female) -HD15 (Male without the No. 9 pin)
adapter (1)
• Warranty card (1)
• This operating instructions (1)
This moiütor will sync with any IBM or compatible system
equipped with VGA^* or greater graphics capability.
Although this monitor will sync with other platforms, a
cable adapter is required. Please consult your dealer for
advice on which adapter is suitable for your needs.
Step 1: Connect the monitor to the
computer.
With the computer switched off, connect the video signal
cable to the monitor (HD15/5 BNC's) and coimect the other
end to the video output.
To connect the HD15 connector, use the supplied video
signal cable.
To cormect the 5 BNC's connector, use the SMF-400 video
signal cable (not supplied).
Note
Do not touch the pins of the video signal cable.

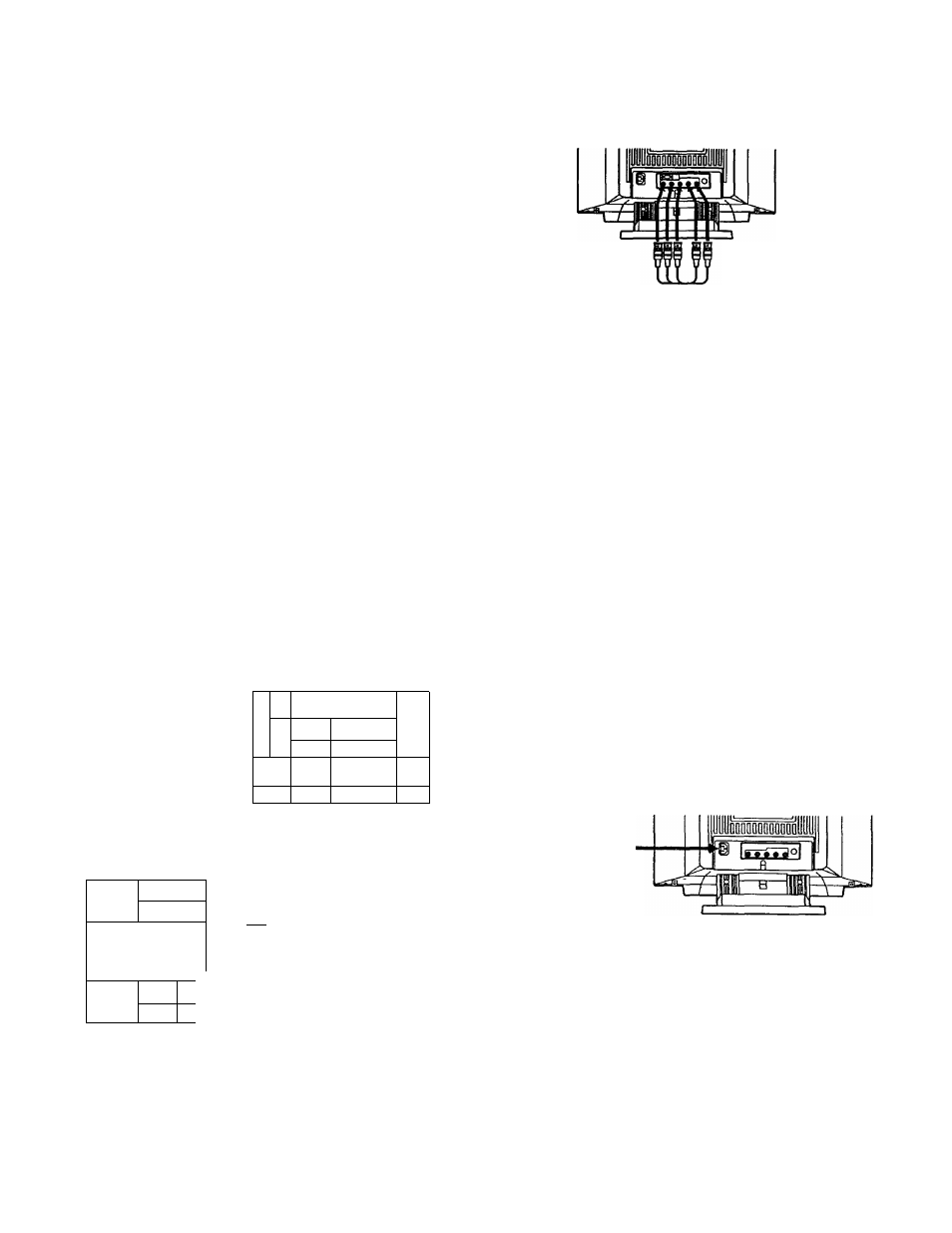

Connecting to the HD15 connector
Connecting to the 5 BNCs connector
IBM or compatible
computer
to HD15
to video output
A
uiUoDDDDOOODQDDul
fl
il ^11! - ±:
1_ Z1
i ^
1 I Ä . " 1
-------
H
(s
Macintosh computer
0 o o i=n
i
j yri
lüfliB'Q-----------
Video signal
cable
(supplied)
to video output
Macintosh adapter
(supplied)
* The HD15-HD15 adapter may be needed for some models.
to VIDEO IN R/G/B to SYNC IN HD/VD
Video signal cable SMF-
400 (not supplied)
Connect to the computer in the same
way as for the HD15 connector.
For the customers using IBM PC or IBM compatible
system which is not compatible with DDC2AB and
DDC2B+
This monitor uses a No. 9 pin in the video signal connector for
DE)C2AB and DDC2B+ compatibility.
Some PC systems which are not compatible with either D1X2AB or
DDC2B+ may not accept tite No. 9 pin. If you are not sure whether
your PC system accepts the No. 9 pin or not, use the HD15 (Female)
- HD15 (Male without the No. 9 pin) adapter (supplied). Make sure
that the male side (without the No. 9 pin) is connected to the
computer.
For the customers using the Macintosh computer
Supplied Macintosh adapter is compatible witii Macintosh LC,
Performa, Quadra and Power macintosh series computers.
Macintosh n series and some older version of PowerBook models
may need an adapter with micro switches.
Step 2: Connect the power cord.
With the monitor switched off, coimect the power cord to
the monitor and the other end to the power outlet.
to a wall outlet
1—---------------GEjSn
Power cord (supplied)
The installation of your monitor is complete. Enjoy your
monitor.
Notice
To comply with the limits of FCC class B and IC Qass B for digital
device, please attach supplied video signal cable for HD15 input or
SMF-400 (not supplied) for BNC input. Furthermore, each cable
must have ferrite cores in it.
1) Macintosh and Power Macintosh are trademarks of Apple
Computer Inc.
2) VGA is a trademark of IBM Corporation.
